Dosing channel

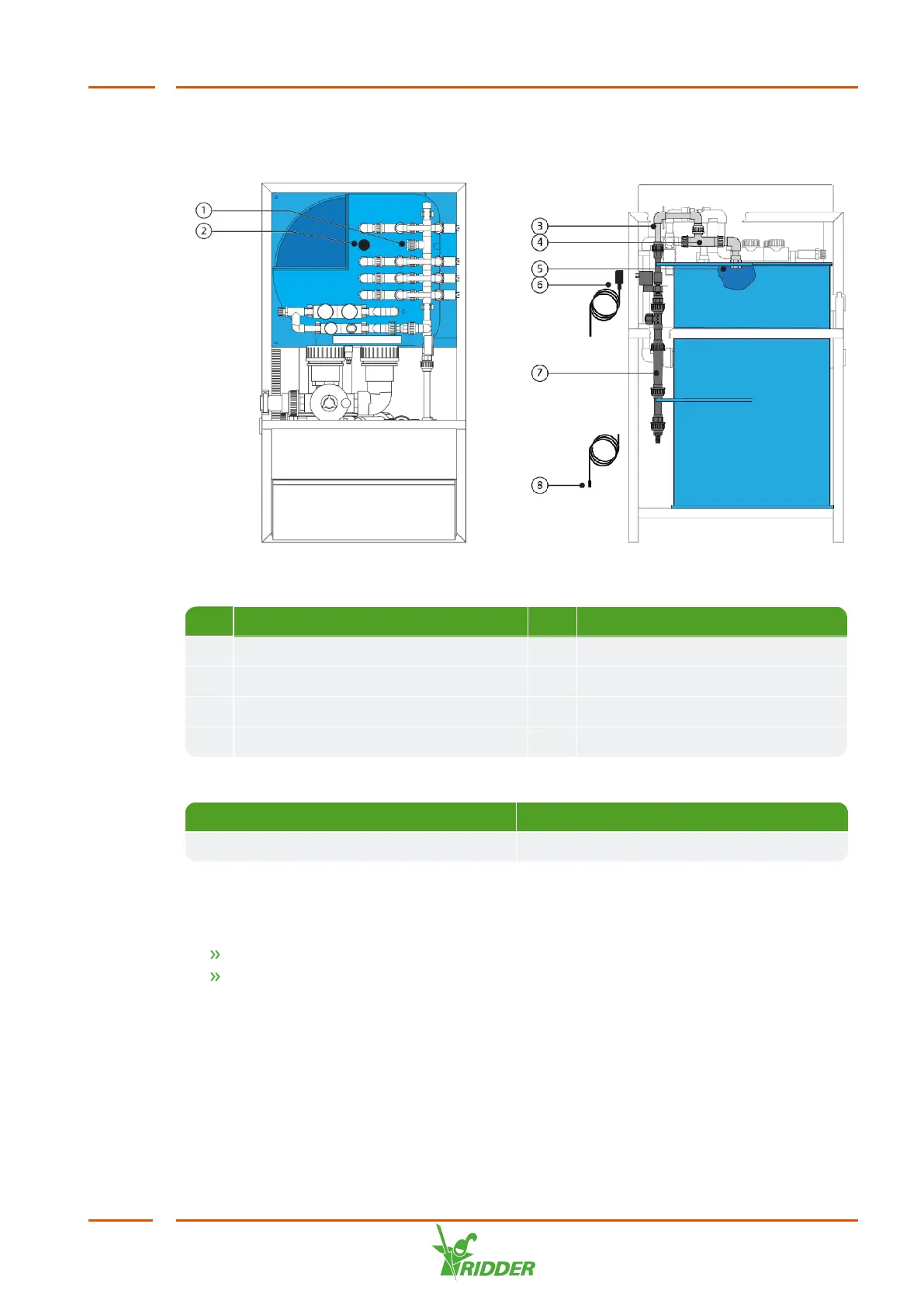

The figure below shows the components of the dosing channel.
Figure 2-7 Dosing channel components
No. Description No. Description
1 Sealing cap of dosing module 5 Connection in the mixing tank
2 Protective cap of mixing tank 6 Dosing valve cable
3 Coupling piece of dosing module 7 Sight glass
4 Venturi 8 Fertilizer/Acid supply pipe
More information on dosing modules:
Component Specifications
Capacity of dosing channels [l/h] 80
2.3.6 Pumps
The FertiMiX-Go! is suitable for use with two models of pumps:
Lowara 10HM03S 22T 2.2kw 3x230/400V 50Hz
Lowara 10HM03S 22T 2.2kw 3x230/400V 60Hz
2.3.7 I/O modules
The FertiMiX-Go! uses I/O modules called Smart Switches. Smart Switches are the
(manual control) switches used for the HortiMaX-Go! process controller. These
switches are equipped with an electrical circuit, a processor and software.
FertiMiX
17
