8.7.10 Delay Trigger
In Delay trigger, you need to set Source A and Source B. The oscilloscope triggers
when the time difference (∆T) between the specified edges (Edge A and Edge B) of
Source A and Source B meets the preset time limit, as shown in the figure below.
Edge A and Edge B must be two neighboring edges.
T
Source A
Source B
Edge A
Edge B

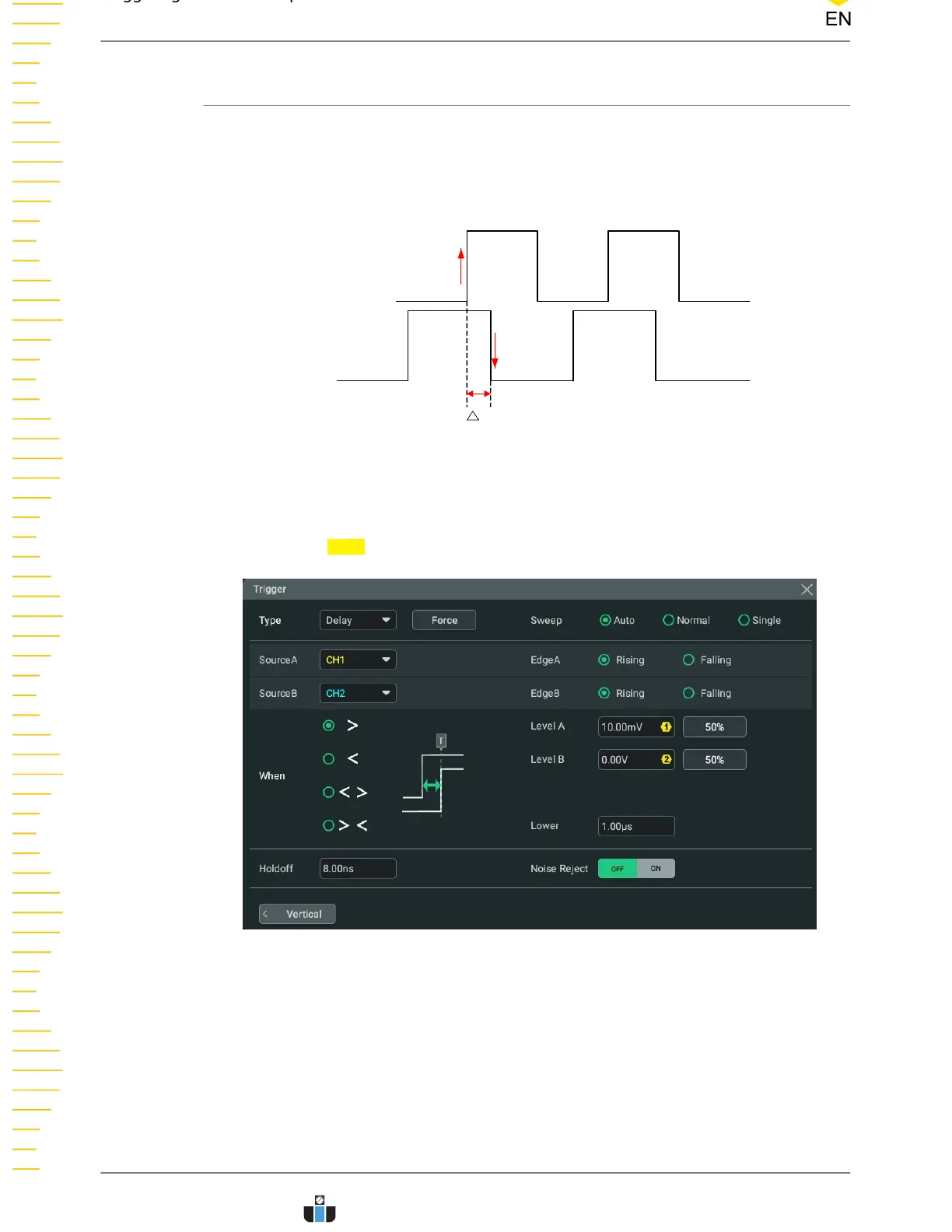

Figure 8.18 Delay Trigger
Trigger Type
Click or tap the Type drop-down button to select "Delay".
Figure 8.19 Delay Trigger Setting Menu
After a trigger type is selected, the current trigger setting information (including
trigger type, trigger source, and trigger level) is displayed in the trigger information
label at the top of the screen, as shown in the figure below. The information will
change based on the trigger settings.
Triggering the Oscilloscope
DHO900 User Guide
88
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.
