Waveform Recording and Playing
Waveform recording/playing function can play the recorded waveforms, enabling you
to analyze the waveforms better.
You can enter the "Record" menu in the following ways.
• Click or tap the function navigation icon and then select Record to enter the
"Record" menu.
• Click or tap
Record on the toolbar to enter the "Record" menu.
• Press the front-panel key and select Record in the pop-up "Analyse"
menu to enter the "Record" menu.

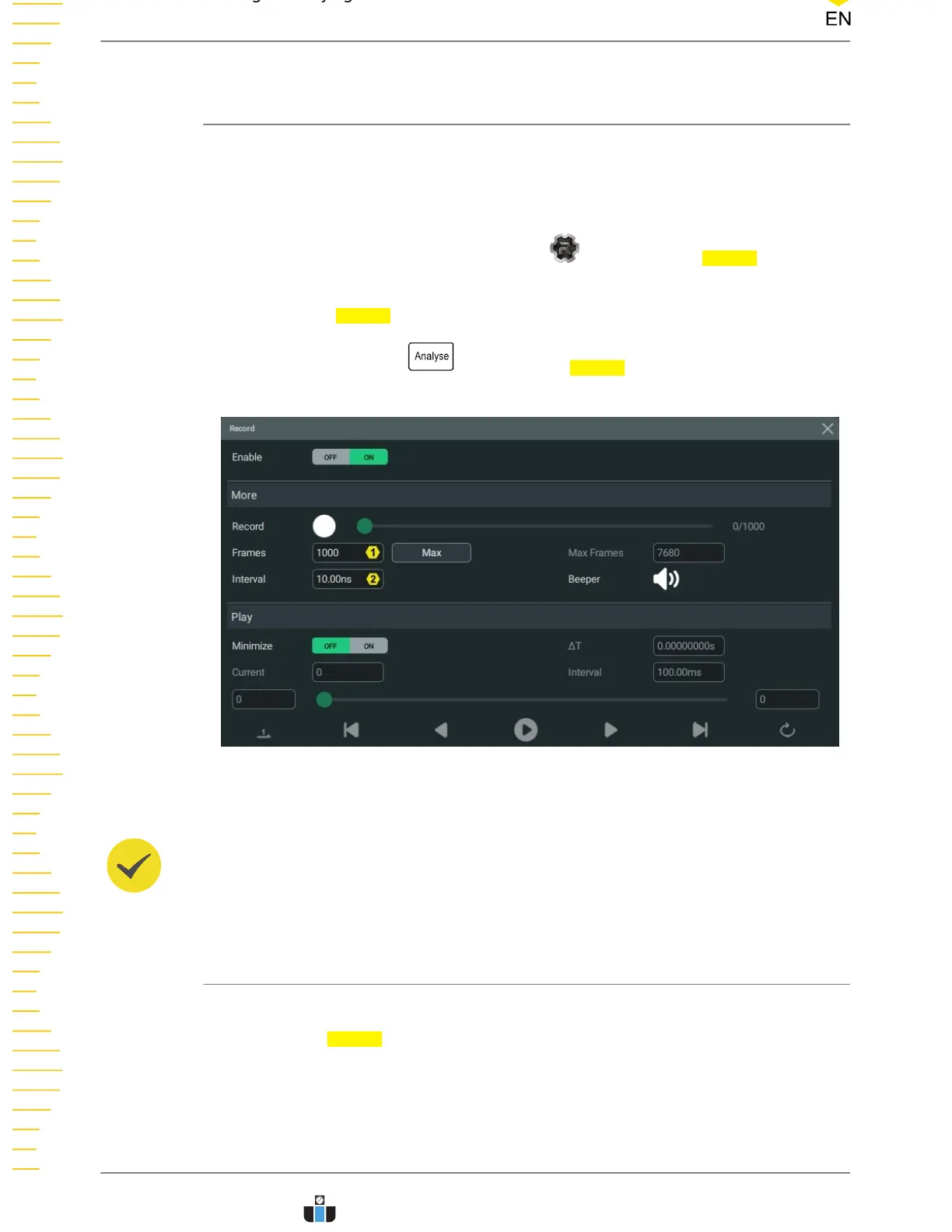

Figure 20.1 "Record" Menu
TIP
When the acquisition mode is set to UltraAcquire , the waveform recording/playing function is
not available. You can view waveform segments using Navigate segments .
20.1 Common Settings
Waveform Recording
Click or tap the Record on/off switch to enable or disable the waveform recording
function. Before recording the waveform, you can refer to descriptions in Record
Options
to set the waveform recording parameters.
Waveform Recording and Playing
DHO900 User Guide
220
