SPI Bus

Line No.

Time

MISO Decoded Data

MISO Error

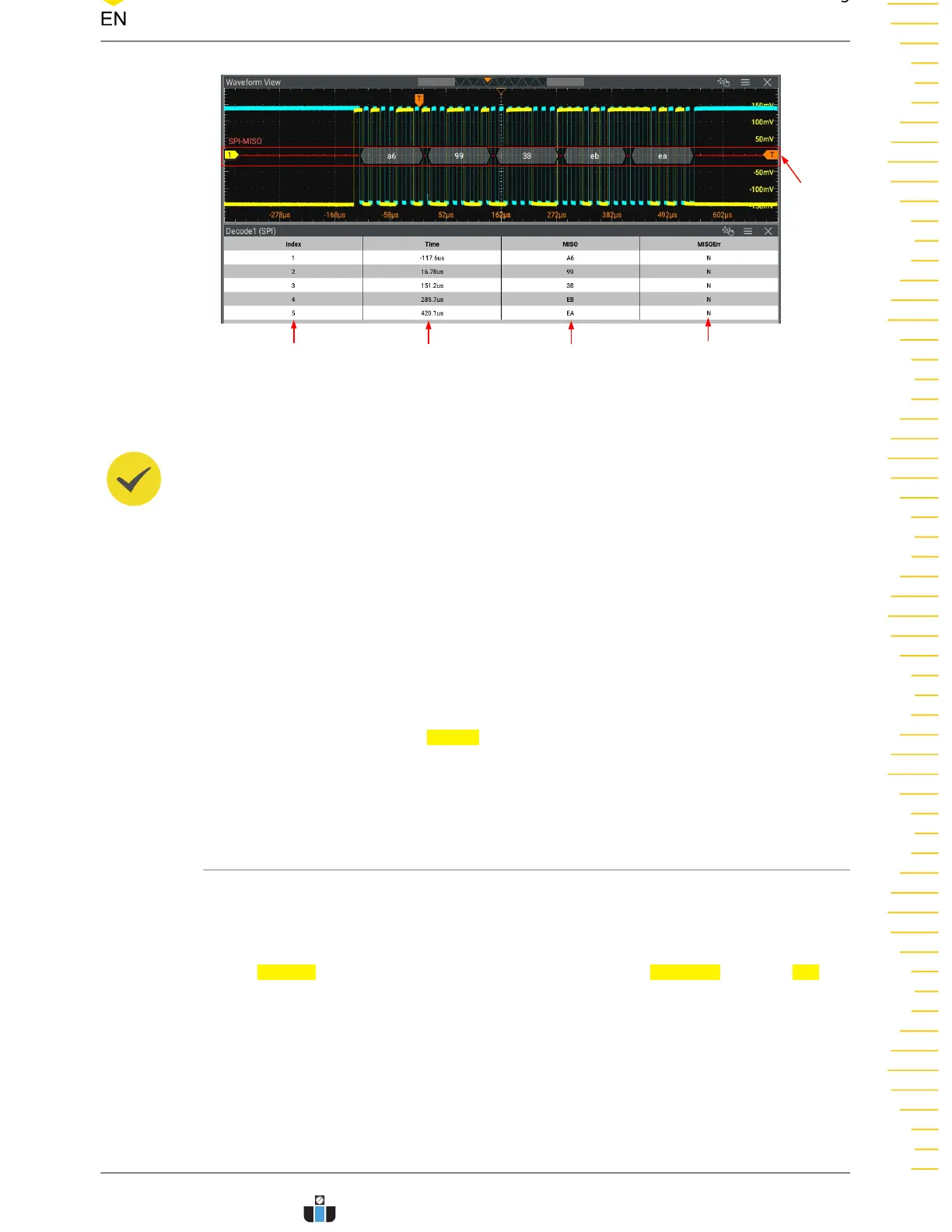

Figure 18.12 SPI Decoding Event Table

TIP

• When you adjust the horizontal time base, the waveform displayed on the screen will also

change, and the total number of lines containing the decoding information in the event

table will also be changed.

• The displayed decoded data information in the bus is related to the value of the

horizontal time base. Reducing the horizontal time base can help you view the detailed

information.

Export

When the oscilloscope is in "STOP" state, you can export the time and its

corresponding decoded data in the event table.

In Decode menu, click or tap

Export, then the save setting interface is displayed. You

can export the data to the internal memory or the external USB storage device (only

when detected) in *.csv format. For details, refer to

Store and Load

18.5 LIN Decoding

The oscilloscope samples the LIN signal, and judges each data point to be logic "1" or

logic "0" according to the preset threshold level. The LIN decoding is required to

specify the LIN signal protocol version.

In the Decode menu, click or tap the drop-down button of Bus Type to select LIN,

then configure the parameters for LIN decoding.

Protocol Decoding

211

Rigol DHO914 User Manual
