Trigger Level

+Width

-Width

Trigger Level

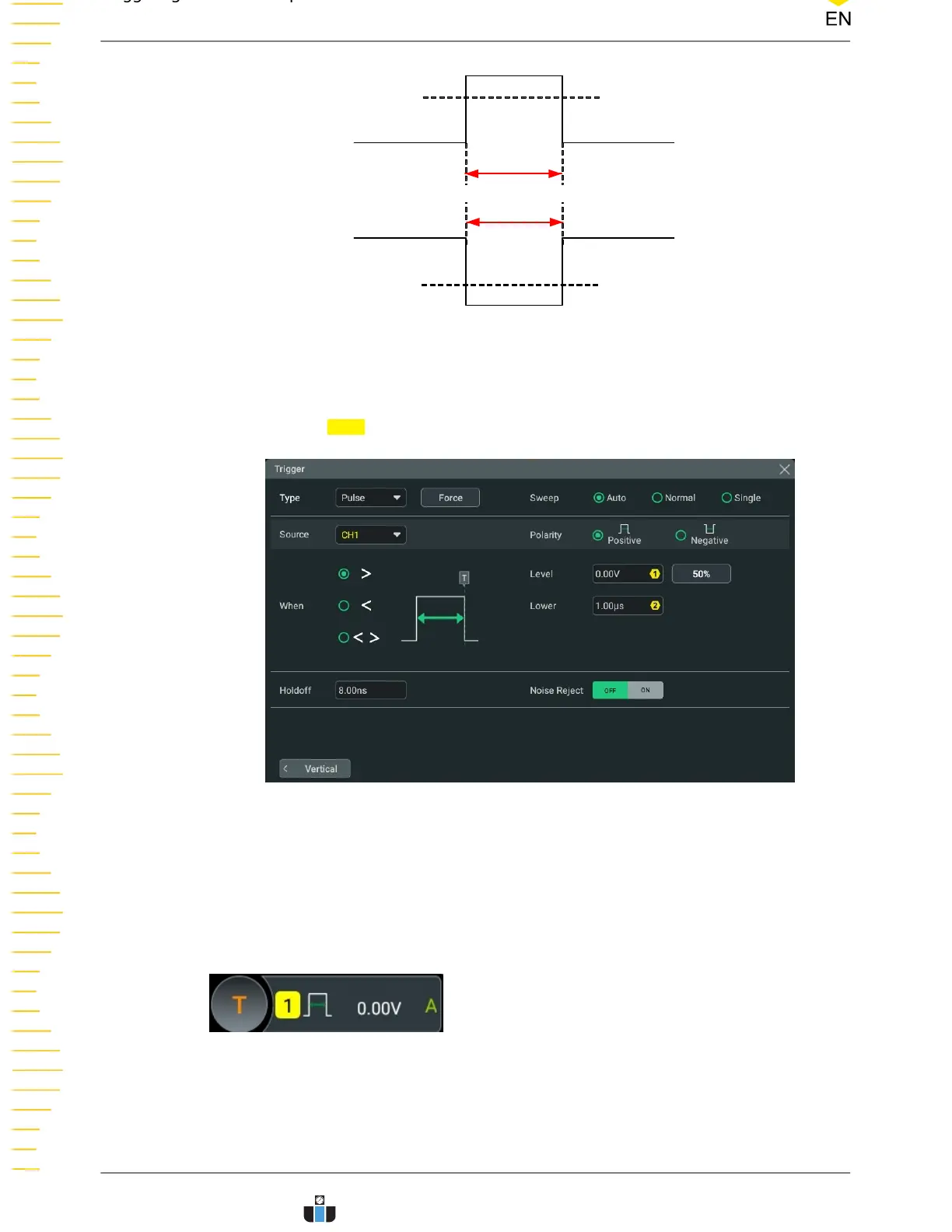

Figure 8.4 Positive/Negative Pulse Width

Trigger Type

Click or tap the

Type drop-down button to select "Pulse".

Figure 8.5 Pulse Width Trigger Setting Menu

After a trigger type is selected, the current trigger setting information (including the

trigger type, source, and level) is displayed in the trigger information label at the top

of the screen, as shown in the figure below. The information will change based on the

trigger settings.

Triggering the Oscilloscope
