TIP

When the voltage of signal source B is 0 V, the division result is treated as 0.

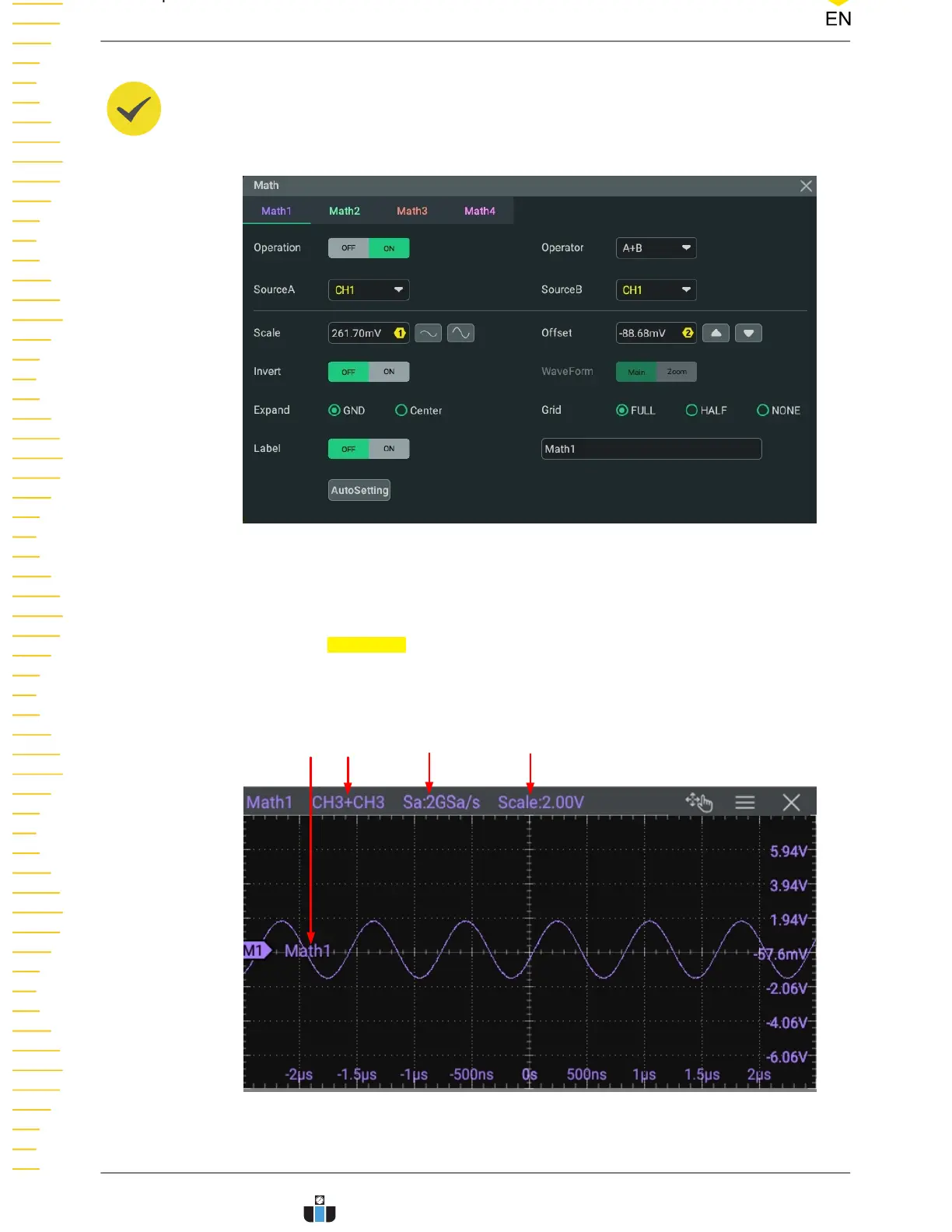

Figure 9.3 Arithmetic Operation Menu

Operation Result Display Window

Click or tap the

Operation on/off switch to enable the display of the arithmetic

operation result window. The source and the vertical scale parameters are displayed

at the top of the window, as shown in the figure below.

Source Vertical Scale

Label

Sample Rate

Figure 9.4 Operation Result Display Window

Math Operation

DHO900 User Guide

114
