• LowPass only allows the signals whose frequencies are lower than the current
upper limit frequency to pass.
• HighPass only allows the signals whose frequencies are higher than the current
lower limit frequency to pass.
• BandPass only allows the signals whose frequencies are higher than the current
lower limit frequency and lower than the current upper limit frequency to pass.
• BandStop only allows the signals whose frequencies are lower than the current
lower limit frequency or higher than the current upper limit frequency to pass.

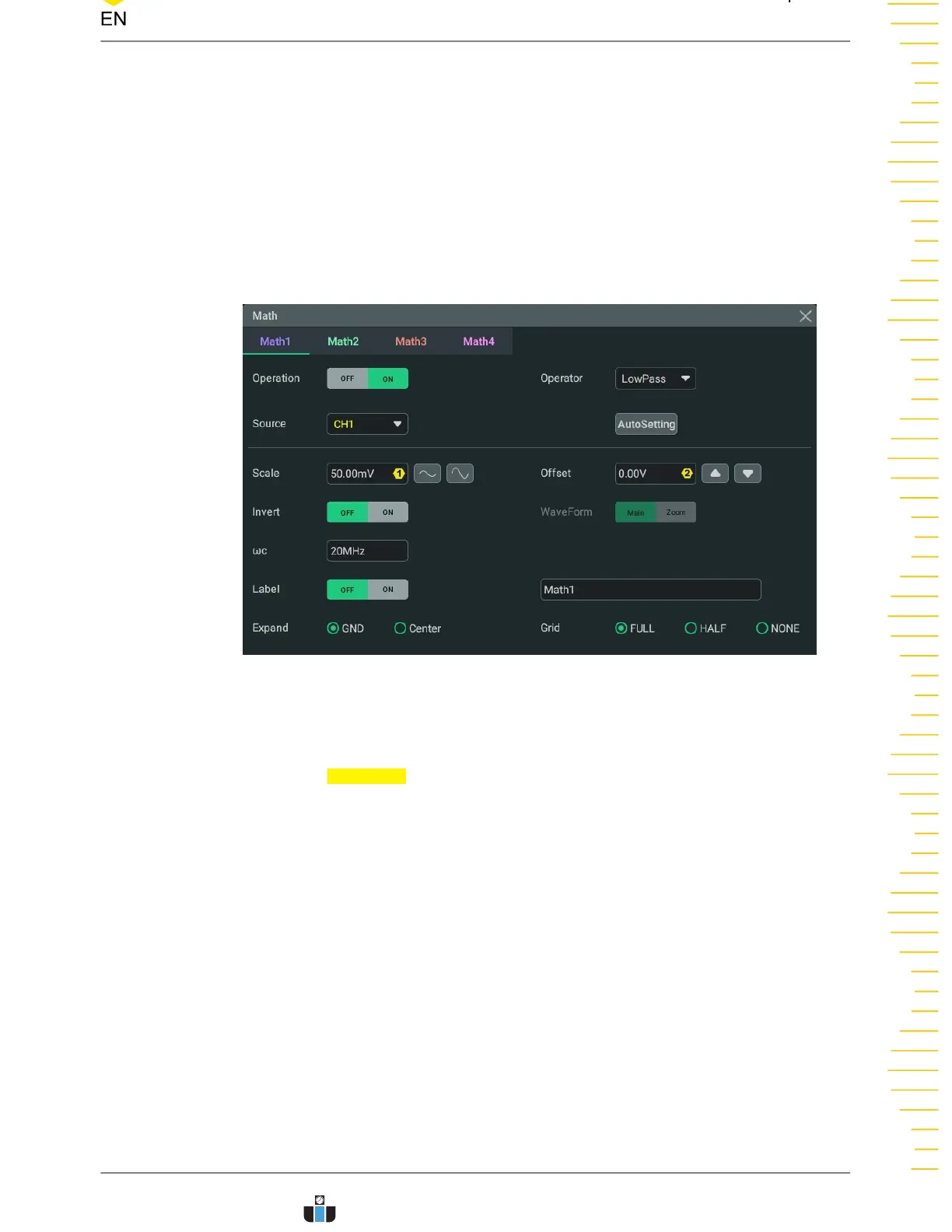

Figure 9.12 Digital Filter Menu
Operation Result Display Window
Click or tap the
Operation on/off switch to enable the display of the operation result
window. The source and the vertical scale parameters are displayed at the top of the
window as shown in the figure below.
Math Operation
