17
Pass/Fail Test
During the product design and manufacturing process, you usually need to monitor
the variations of the signal or judge whether the product is up to standard. DHO900
series oscilloscope can accomplish this task perfectly with its standard pass/fail test
function. You can use this function to define the mask based on "standard"
waveforms. It compares the signal under test with the mask and displays the test
results. When the pass/fail status is detected, you can choose to stop monitoring,
sound an alarm with the beeper, or save the current screen image.
Click or tap the function navigation icon
at the lower-left corner of the screen to
open the function navigation. Then click or tap the Pass/Fail button to enter the
"PassFail" setting menu. You can also press the front-panel
key and select Pass/
Fail to enter the "PassFail" setting menu. The menu is as shown in the figure below.

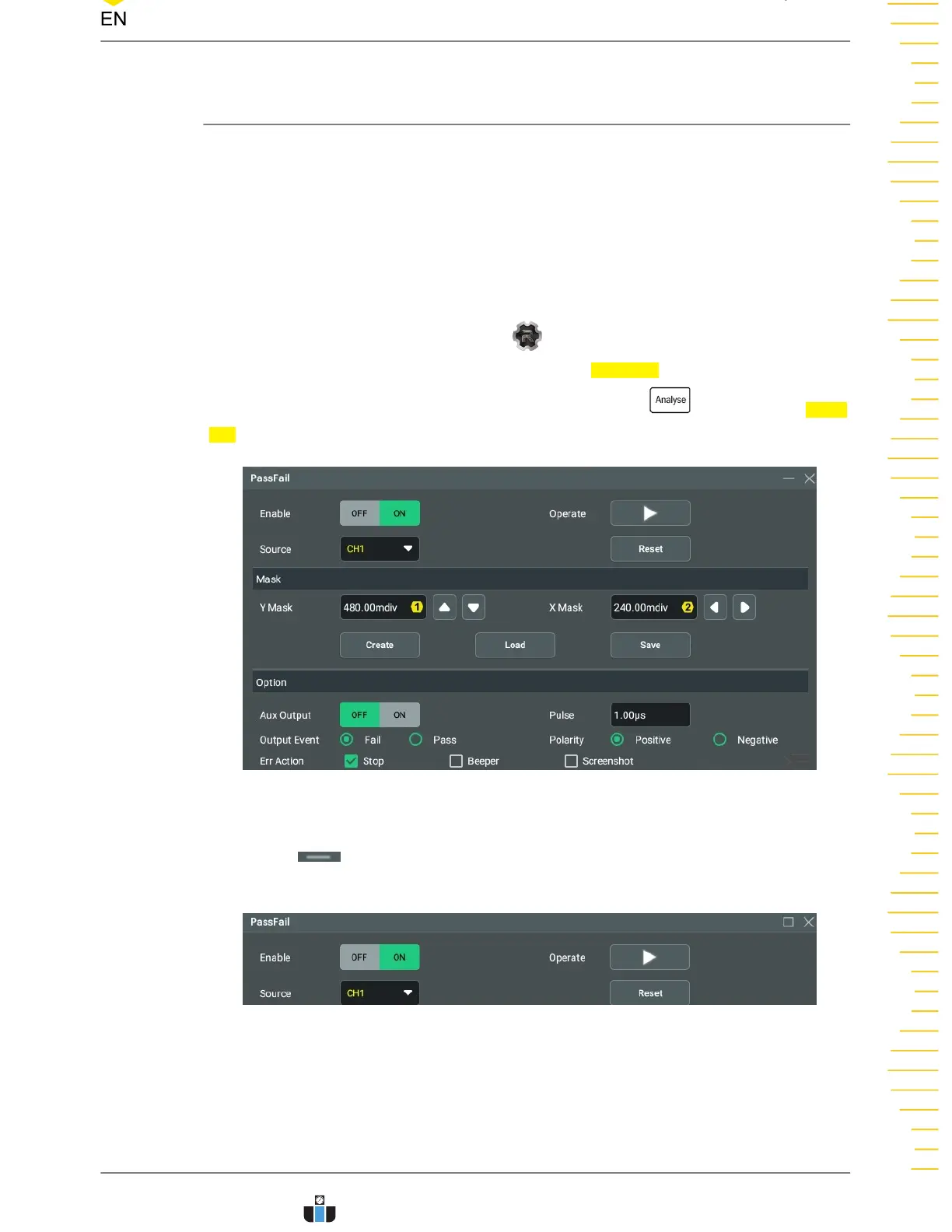

Figure 17.1 PassFail Menu
Click or tap to minimize the "PassFail" menu to simplify the display, as shown in
the figure below.
Figure 17.2 PassFail Menu-Simplified
Pass/Fail Test
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. DHO900 User Guide
189
