10.2 Auto Measurements

You can enter the Measure menu in the following ways.

• Click or tap the function navigation icon at the lower-left corner of the

screen, and then select Measure to enter the "Measure" menu.

• Press the front-panel

key to enter the "Measure" menu.

• Click or tap the Measure button on the toolbar to enter the "Measure" menu.

• In

Vertical System

menu, click or tap the Measure button to enter the "Measure"

menu.

10.2.1 Measurement Parameter

This oscilloscope allows you to set the measurement source, enable or disable the all

measurement function, the statistical function, and etc. You can make quick

measurements for many waveform parameters. The measurement results will be

displayed in the Result sidebar at the right section of the screen.

TIP

If there is no signal input for the current source or the measurement result is not within the

valid range (too large or too small), then the measurement results are invalid, and "*****" is

displayed on the screen. Please re-input the signal or set the signal.

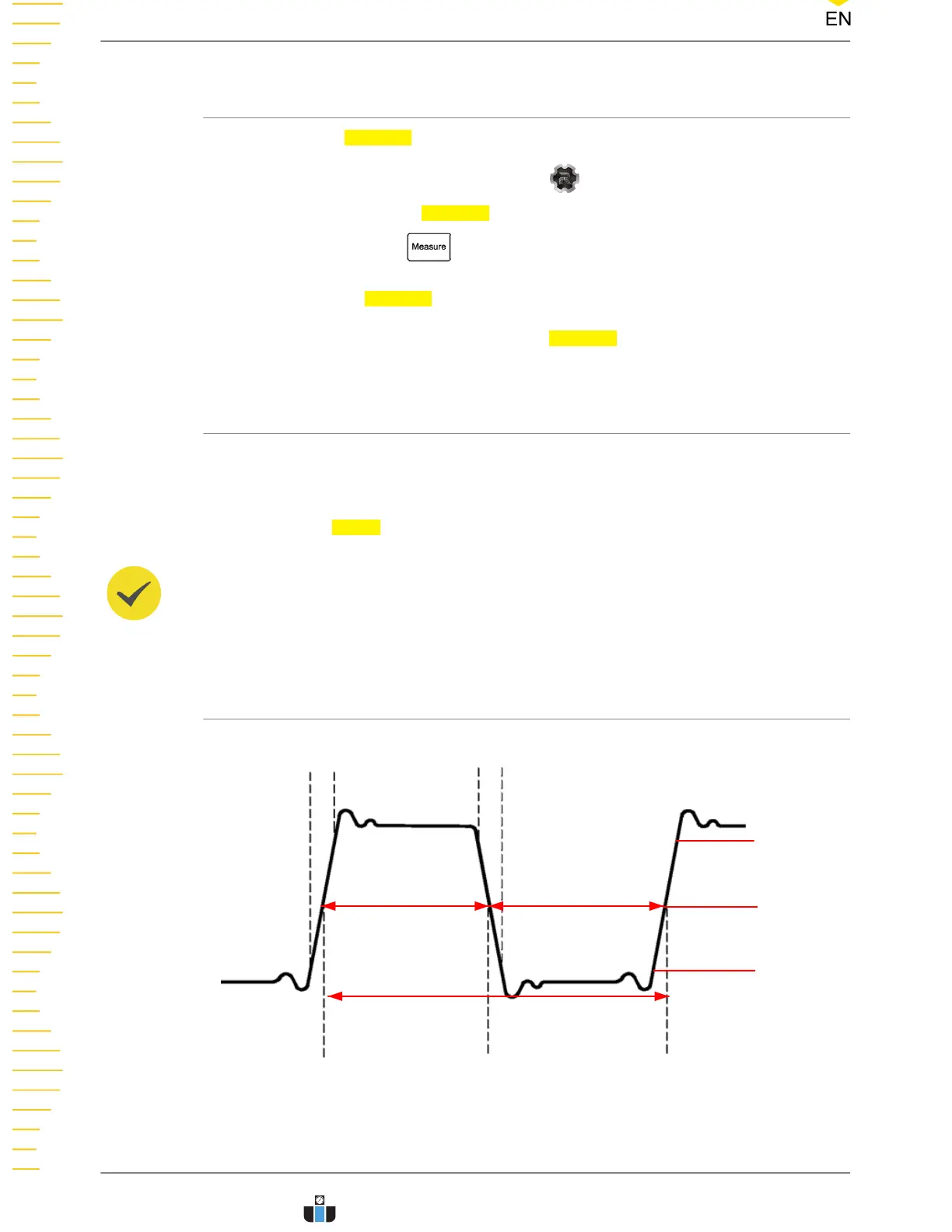

10.2.1.1 Time Parameters

Threshold

Middle Value

Threshold

Upper Limit

Rise Time Fall Time

+Width

- Width

Period

Threshold

Lower Limit

Figure 10.1 Time Parameters

Measurements

DHO900 User Guide

134
