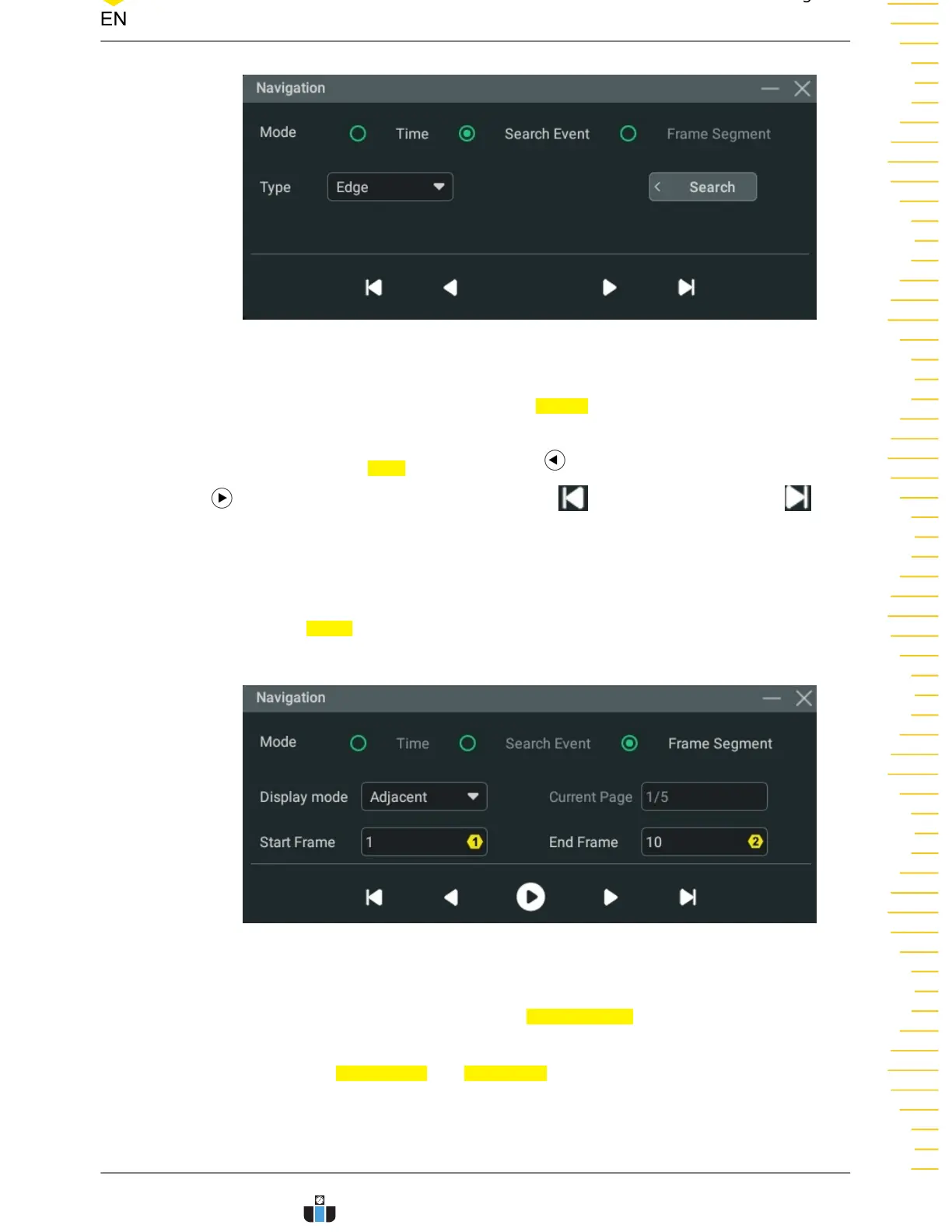

Figure 21.5 "Search Event" Navigation Setting Menu

After "Search Event" is selected, click or tap Search to open the "Search" menu and

set the search condition. For search setup, please refer to

. You can select the

search type from the Type item. Click or tap to go to the previous search event or

to go to the next search event. Click or tap to go to the first event or to

go to the last event.

Navigate segments

This mode is available only in UltraAcquire acquisition mode. When UltraAcquire is

enabled, the

Mode is automatically set to "Frame Segment" which cannot be

modified. Its setting menu is as shown in

Figure 21.6

Figure 21.6 "Frame Segment" Navigation Setting Menu

• In this mode, you can click or tap the Display mode drop-down button to set

the display mode of segments. For details, please refer to

UltraAcquire

• Click or tap Start Frame and End Frame input fields to set the start frame and

end frame which define the segment range to navigate through. You can also

use the corresponding multipurpose knob to set the start/end frame. After you

Search and Navigation
