Click or tap the Threshold on/off switch to enable or disable the threshold settings.

TIP

Modifying the threshold will affect the measurement results of time, delay, and phase

parameters.

Measurement Range

Click or tap the drop-down button of the Region to select "Main" or "Zoom".

• Main: indicates that the measurement range is within the main time base region.

• Zoom: indicates that the measurement range is within the zoomed time base

region.

TIP

To use "Zoom", you need to enable the

Zoom Mode (Delayed Sweep)

first.

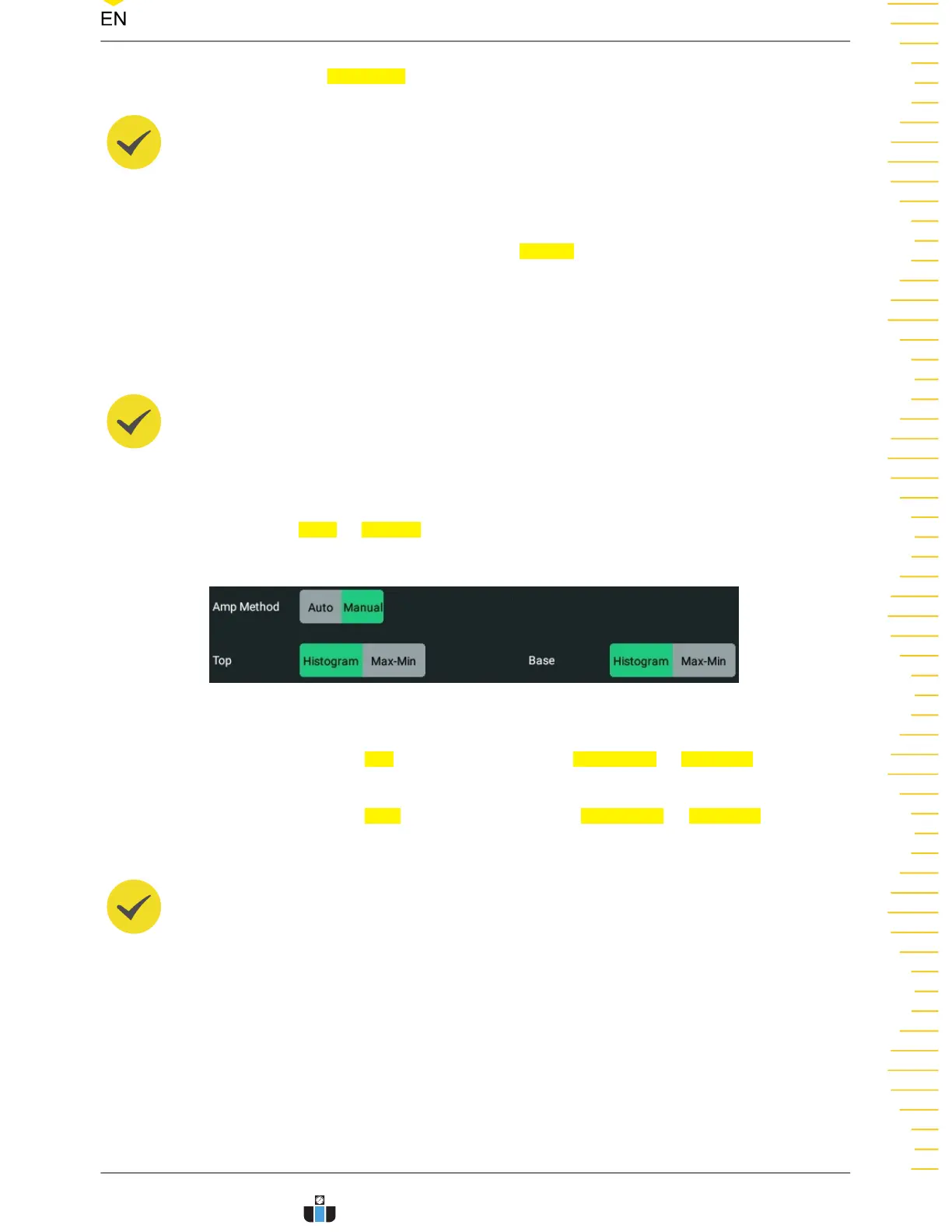

Amplitude Measurement Method

Click or tap

Auto or Manual as the amplitude measurement method, which affects

the measurement method for the top and base values

If you select "Manual", set the following parameters:

• Click or tap the Top toggle button to select Histogram or Max-Min as the top

value measurement method.

• Click or tap the

Base toggle button to select Histogram or Max-Min as the base

value measurement method.

TIP

If you select "Manual" for the amplitude method, the measurement results of other parameters

may be affected.

"Histogram" and "Max-Min" are the internal measurement algorithm for the oscilloscope. The

"Histogram" method mentioned above is different from the Histogram function of the

oscilloscope.

Remove the Measurement Results

Refer to

Remove the Measurement Results

Measurements

145
