- Cursor A is a horizontal solid line ( is displayed at the right section of

the screen), and Cursor B is a horizontal dotted line ( is displayed at the

right section of the screen).

- In XY cursor mode, Y cursor is used to measure the waveform amplitude of

Source Y.

You can enable cursor measurements in the following ways.

• Click or tap the function navigation icon

> Cursors to enable cursor

measurements.

• Click or tap the Cursors button on the toolbar to enable cursor measurements.

• Press the front-panel

key to enable cursor measurements.

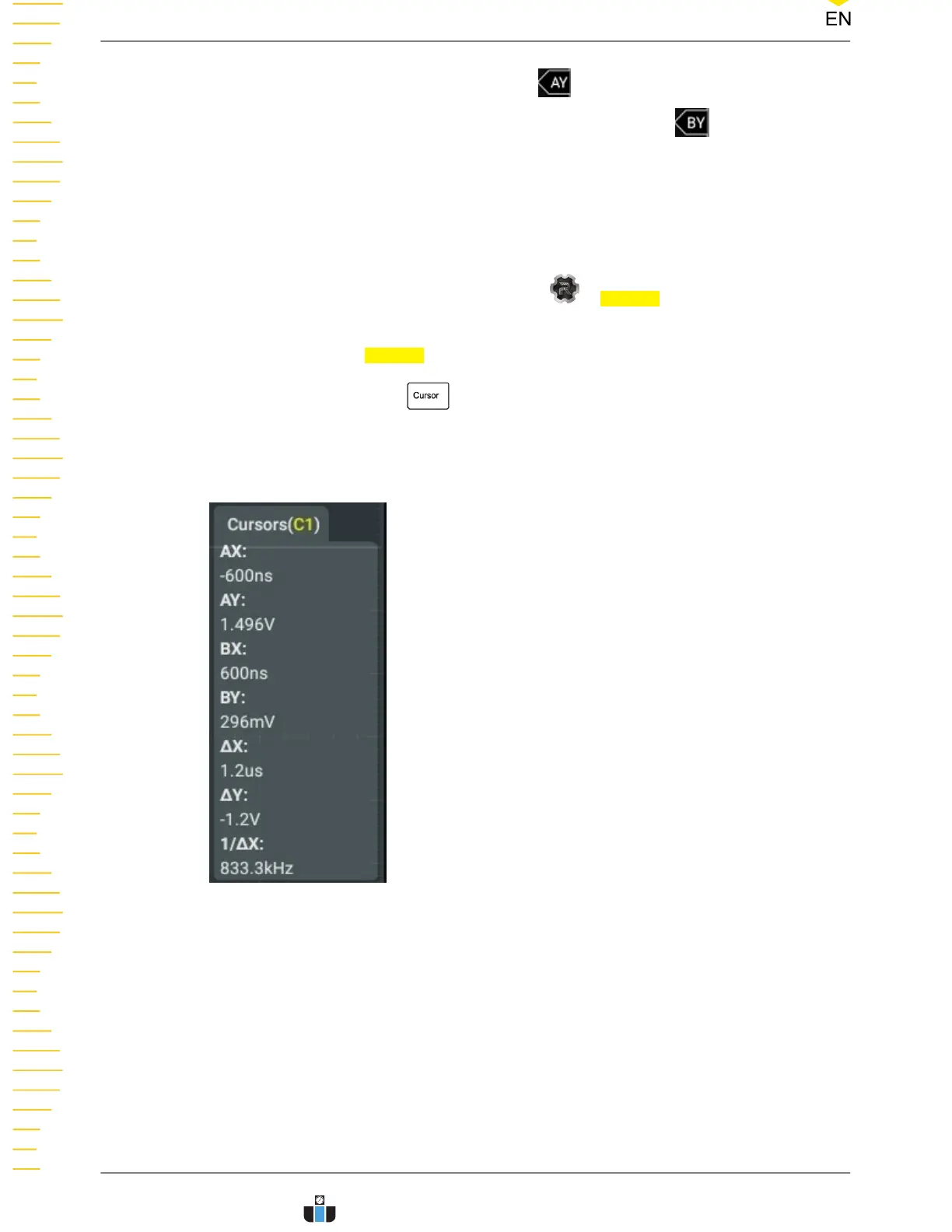

The measurement results are displayed in the "Result" bar at the right side of the

screen.

• AX: indicates the X value at Cursor A.

• AY: indicates the Y value at Cursor A.

• BX: indicates the X value at Cursor B.

• BY: indicates the Y value at Cursor B.

• ∆X: indicates the horizontal spacing between Cursor A and Cursor B.

• ∆Y: indicates the vertical spacing between Cursor A and Cursor B.

Measurements

DHO900 User Guide

148
