Rigol MSO5104 User Manual

Chapter 5 To Trigger the Oscilloscope RIGOL
MSO5000 User Guide 5-55

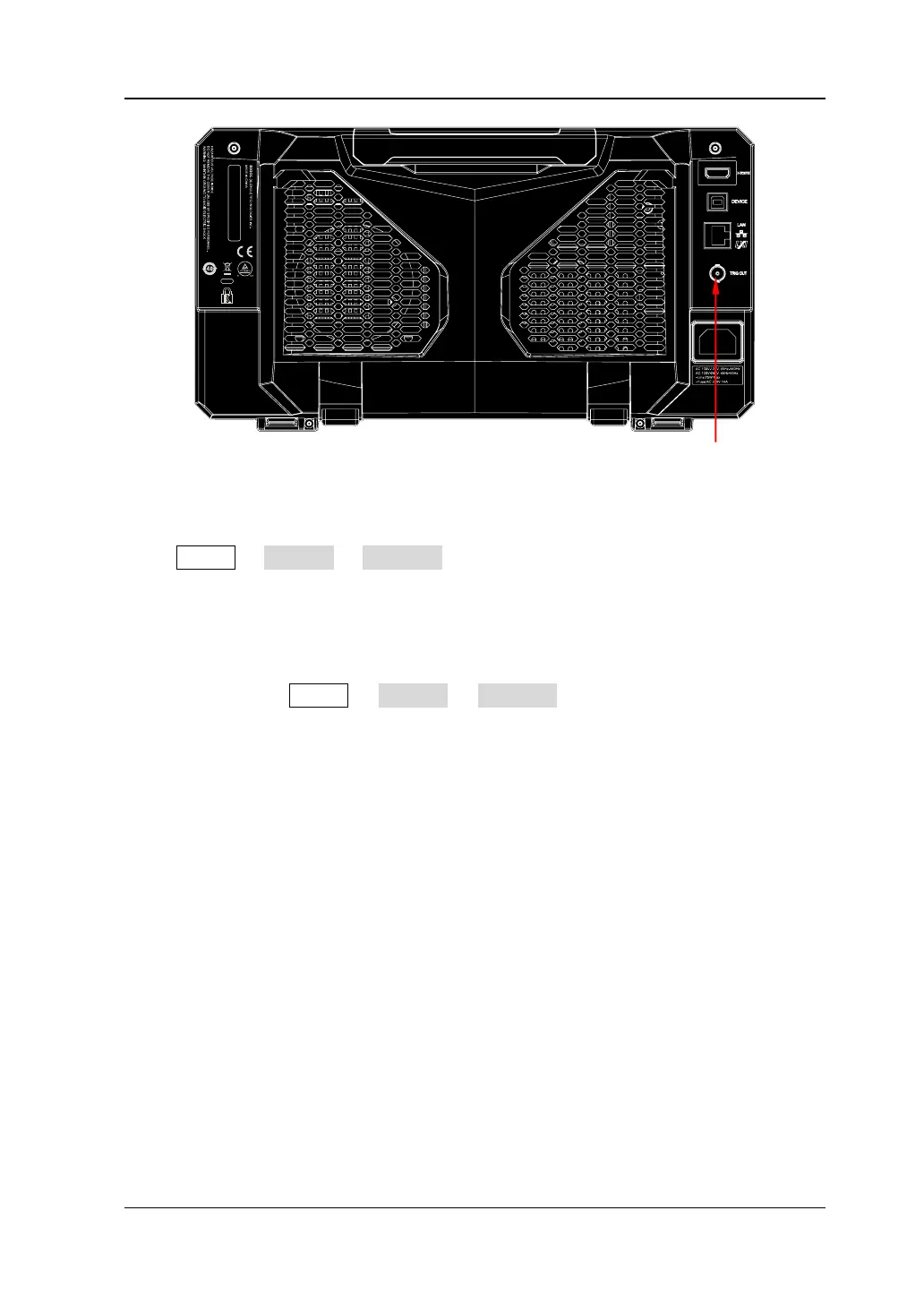

Figure 5-24 Trigger Output Connector
Press Utility → System → AUX Out to select "TrigOut”. A signal which reflects the
current capture rate of the oscilloscope can be output from the [TRIG OUT]
connector each time a trigger is generated by the oscilloscope. If this signal is
connected to a waveform display device to measure the frequency, the measurement
result is the same as the current capture rate.
Note: If you press Utility → System → AUX Out to select "PassFail", then in the
pass/fail test, when a pass/fail event is detected, the oscilloscope outputs a pulse
from the rear-panel [TRIG OUT] connector.
Trigger Output Connector

Rigol MSO5104 Specifications

General

Type	Tabletop
Product type	-
Bandwidth	100 MHz
Sampling rate	500000 MS/s
Channels quantity	16 channels
Minimum time base setting (per division)	3.5 ns
Display type	LCD
Display diagonal	9 \
AC input voltage	100 - 240 V
AC input frequency	45 - 440 Hz
Power consumption (max)	75 W
Non-operating altitude	3000 - 15000 m
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	0 - 50 °C

Weight and Dimensions

Width	367 mm
