RIGOL Chapter 5 To Trigger the Oscilloscope
5-54 MSO5000 User Guide
Set the conditions for Trigger zone A and Trigger zone B:
Press Zone A or Zone B, rotate the multifunction knob to select "Intersect" or
"Not intersect", then press down the knob to select it. You can also press Zone A or
Zone B continuously to select the condition, or enable the touch screen to tap the
desired condition and select it.

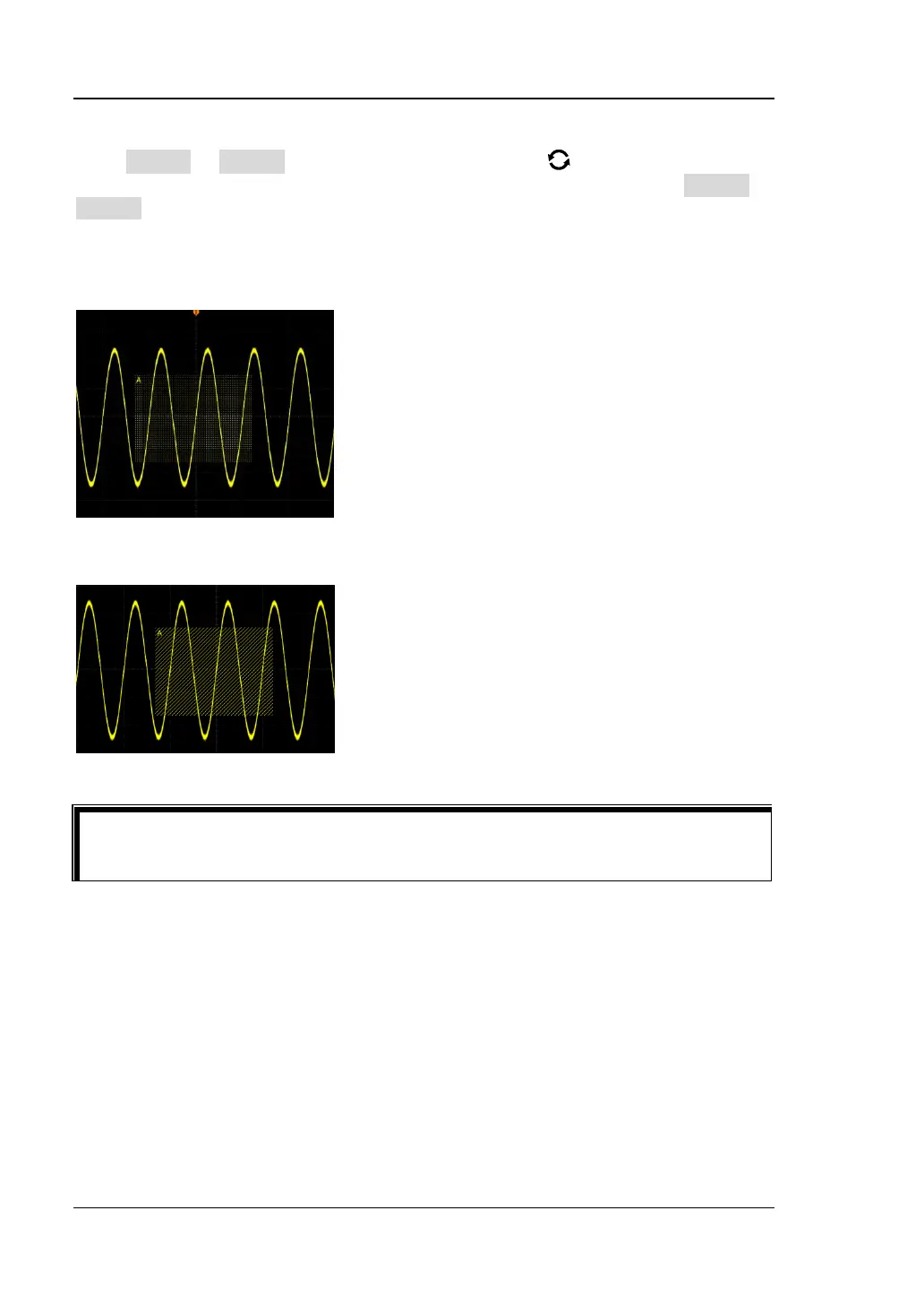

If you enable Zone A, select CH1 as Source A, and select "Intersect" as the condition,
as shown in the figure below.
If you enable Zone A, select CH1 as Source A, and select "Not intersect" as the
condition, the following figure is displayed.
Trigger Output Connector
The trigger output connector ([TRIG OUT]) on the rear panel of MSO5000 series
can output trigger signals (hardware trigger) determined by the current setting.
Tip
If you enable both Trigger zone A and Trigger zone B, then perform the "A&&B"
operation, and it will become the final trigger condition.

Rigol MSO5104 Specifications

General

Type	Tabletop
Product type	-
Bandwidth	100 MHz
Sampling rate	500000 MS/s
Channels quantity	16 channels
Minimum time base setting (per division)	3.5 ns
Display type	LCD
Display diagonal	9 \
AC input voltage	100 - 240 V
AC input frequency	45 - 440 Hz
Power consumption (max)	75 W
Non-operating altitude	3000 - 15000 m
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	0 - 50 °C

Weight and Dimensions

Width	367 mm
