RIGOL Chapter 1 Quick Start
1-10 MSO5000 User Guide
Front Panel Overview

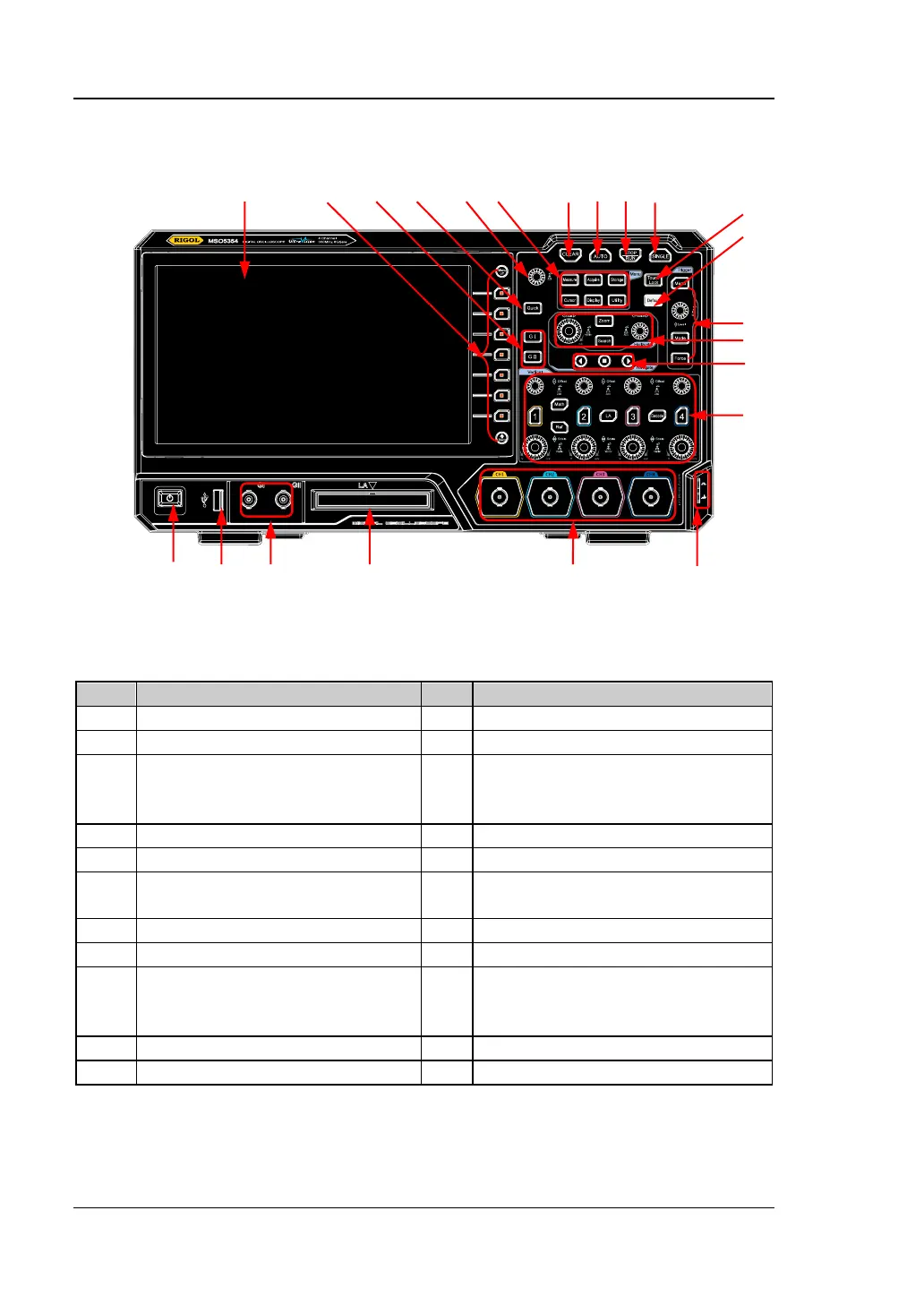

Figure 1-11 Front Panel
Table 1-1 Front Panel Description
No.
Description
No.
Description
1
Capacitive Touch Screen
12
Default Setting Key
2
Function Menu Operation Keys
13
Trigger Control System
3
Dual-channel Function/Arbitrary
Waveform Generator Setting
Key
[1]
14
Horizontal Control System
4
Quick Key (Shortcut Key)
15
Navigation Control key
5
Multifunction Knob
16
Vertical Control System
6
Common Operation Keys
17
Probe Compensation Signal
Output Terminal/Ground Terminal
7
CLEAR Key
18
Analog Channel Input Terminals
8
Auto Waveform Display Key
19
Digital Channel Input Interface
[2]
9
RUN/STOP Key
20
Dual-channel Function/Arbitrary
Waveform Generator Output
Terminals
[1]
10
Single Trigger Control Key
21
USB HOST Interface
11
Touch Lock Key
22
Power Key
Note
[1]
: This function is only available for the model installed with the MSO5000-AWG option.
Note
[2]
: PLA2216 active logic probe option is required to be ordered.
1 2 3 4 5 6 7 8 9 10
22 21 20 19 18 17
15 14
11
12
13
14
15
16

Rigol MSO5104 Specifications

General

Type	Tabletop
Product type	-
Bandwidth	100 MHz
Sampling rate	500000 MS/s
Channels quantity	16 channels
Minimum time base setting (per division)	3.5 ns
Display type	LCD
Display diagonal	9 \
AC input voltage	100 - 240 V
AC input frequency	45 - 440 Hz
Power consumption (max)	75 W
Non-operating altitude	3000 - 15000 m
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	0 - 50 °C

Weight and Dimensions

Width	367 mm
