RIGOL Chapter 6 Operations and Measurements
6-48 MSO5000 User Guide

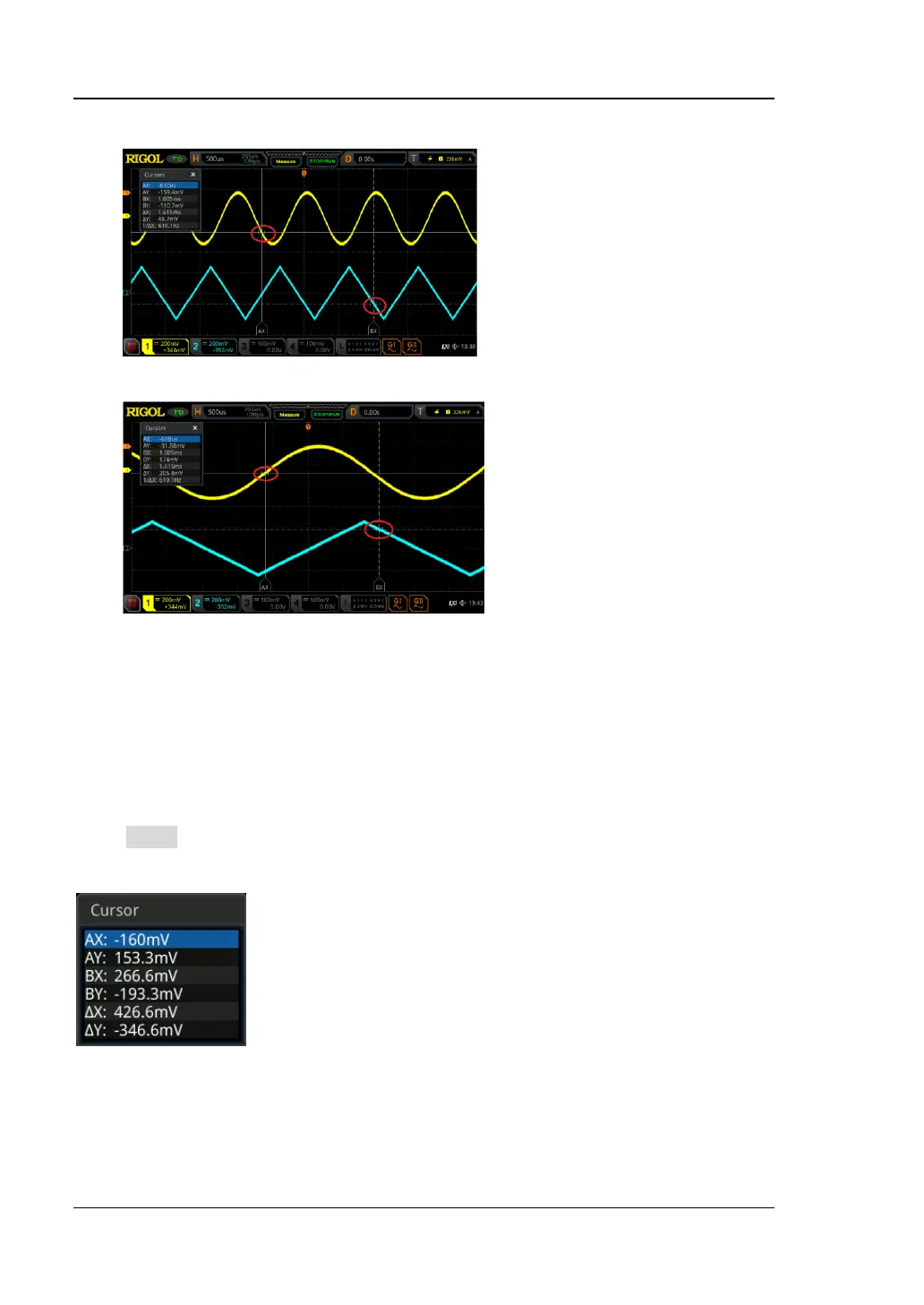

Track Measurement (before Horizontal Expansion):
Track Measurement (after Horizontal Expansion):
XY Mode
XY mode is only available when the horizontal time base mode is "XY" (refer to
"Timebase Mode"). In this mode, two pairs of cursors will appear. You can adjust
the cursor positions to measure the X and Y values at the crossing points of the two
pairs of cursors.
Press Mode to select "XY" to enable the XY cursor measurement function. The
measurement results are displayed at the upper-left corner of the screen, as shown
in the following figure.
⚫ AX: indicates the X value at Cursor A.
⚫ AY: indicates the Y value at Cursor A.
⚫ BX: indicates the X value at Cursor B.
⚫ BY: indicates the Y value at Cursor B.

Rigol MSO5104 Specifications

General

Type	Tabletop
Product type	-
Bandwidth	100 MHz
Sampling rate	500000 MS/s
Channels quantity	16 channels
Minimum time base setting (per division)	3.5 ns
Display type	LCD
Display diagonal	9 \
AC input voltage	100 - 240 V
AC input frequency	45 - 440 Hz
Power consumption (max)	75 W
Non-operating altitude	3000 - 15000 m
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	0 - 50 °C

Weight and Dimensions

Width	367 mm
