Chapter 18 Store and Load RIGOL
MSO5000 User Guide 18-7

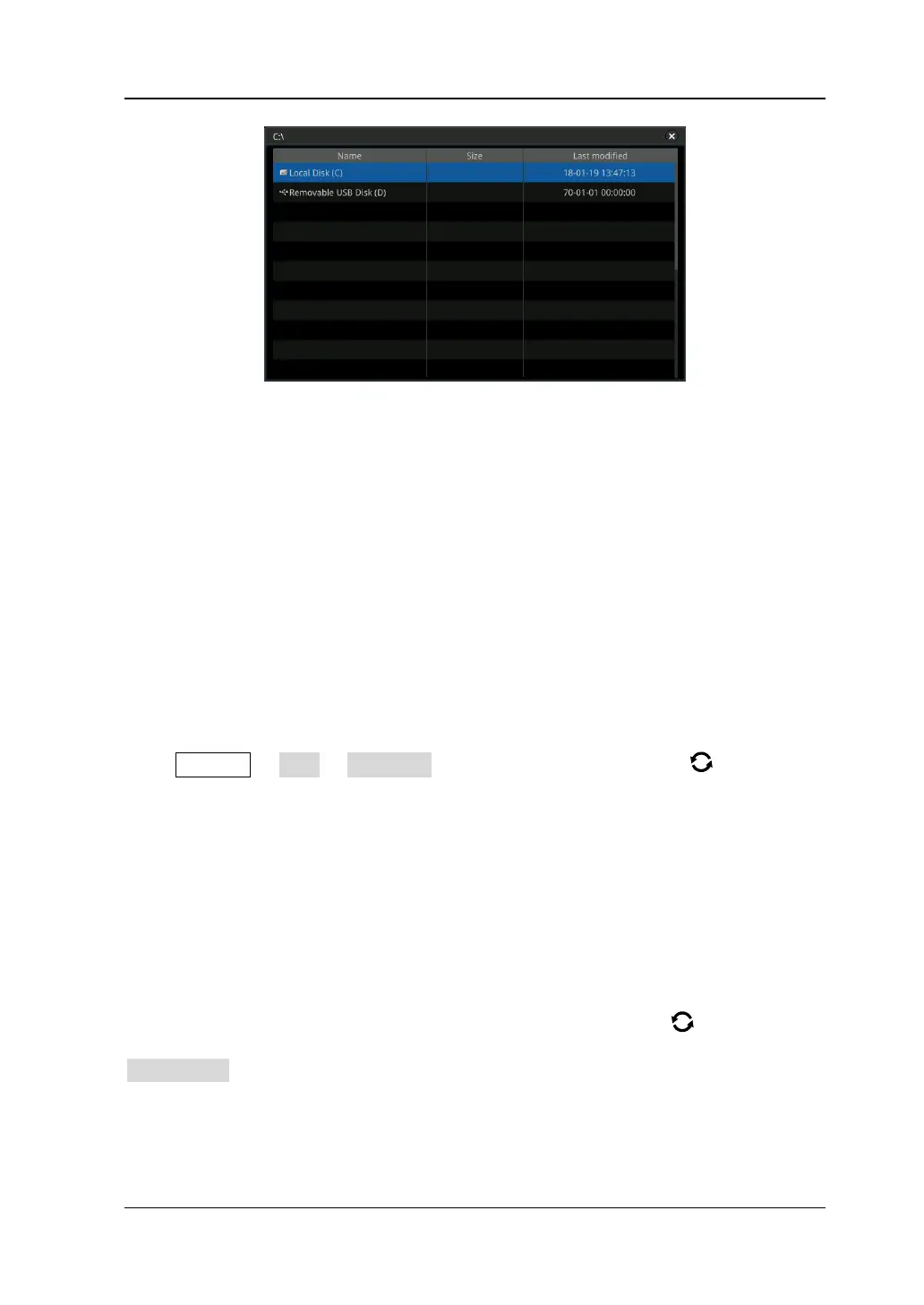

Figure 18-1 Disk Management Interface
Execute the following operations through the disk management menu:
⚫ To Select a File Type
⚫ To Create a Folder
⚫ To Delete a File or Folder
⚫ To Copy and Paste a File or Folder
⚫ To Rename a File or Folder
⚫ To Clear the Internal Memory Safely
To Select a File Type
Except the image storage, waveform storage, and setup storage, the oscilloscope
can also save the files of advanced applications.
Press Storage → Disk → File Type, rotate the multifunction knob to select the
desired file type. The default is "*.*". In the current path, only the file whose suffix of
its file name matches that of the file type selected will be displayed in the current
path.
To Create a Folder
Before using the external disk, make sure that a USB storage device (FAT32 format,
flash memory) is connected correctly.
In the disk management interface, rotate the multifunction knob to select the
storage location. By default, the internal memory "Local Disk(C)" is selected. Press
NewFolder to enter the interface, as shown in Figure 18-2.

Rigol MSO5104 Specifications

General

Type	Tabletop
Product type	-
Bandwidth	100 MHz
Sampling rate	500000 MS/s
Channels quantity	16 channels
Minimum time base setting (per division)	3.5 ns
Display type	LCD
Display diagonal	9 \
AC input voltage	100 - 240 V
AC input frequency	45 - 440 Hz
Power consumption (max)	75 W
Non-operating altitude	3000 - 15000 m
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	0 - 50 °C

Weight and Dimensions

Width	367 mm
