Chapter 13 Pass/Fail Test RIGOL
MSO5000 User Guide 13-5
To Enable or Disable the Display of the Statistics
of the Test Results
Press Information continuously to enable or disable the display of the statistics of
the test results. You can also enable the touch screen to tap the icon at the
right-upper corner of the statistics window to close it.

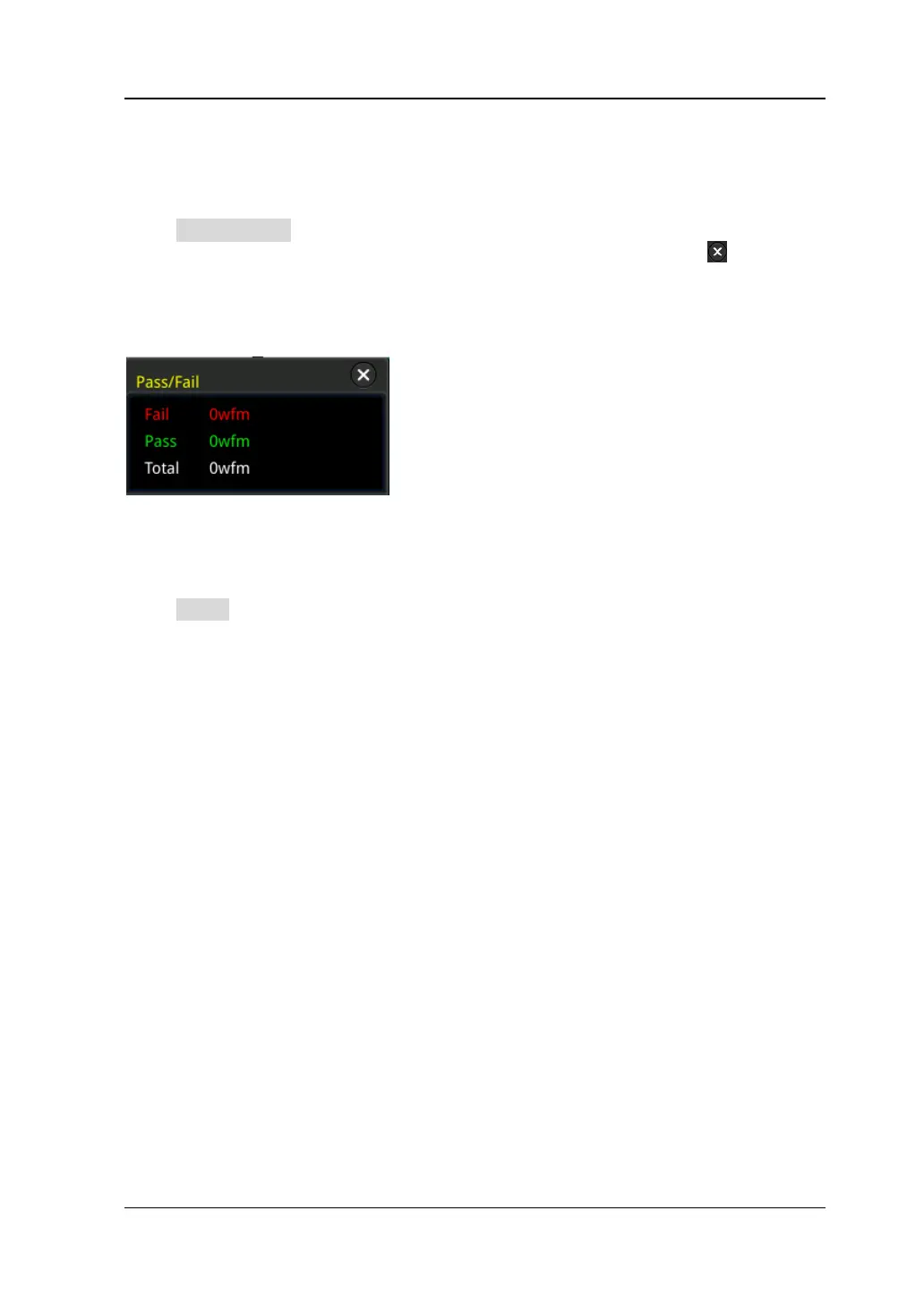

The test results statistics include the number of failed frames, the number of
successful frames, and total number of frames, as shown in the figure below.
Statistics Reset
Press Reset to clear the current test results and execute statistics on the test results
again.

Rigol MSO5104 Specifications

General

Type	Tabletop
Product type	-
Bandwidth	100 MHz
Sampling rate	500000 MS/s
Channels quantity	16 channels
Minimum time base setting (per division)	3.5 ns
Display type	LCD
Display diagonal	9 \
AC input voltage	100 - 240 V
AC input frequency	45 - 440 Hz
Power consumption (max)	75 W
Non-operating altitude	3000 - 15000 m
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	0 - 50 °C

Weight and Dimensions

Width	367 mm
