Chapter 1 Quick Start RIGOL
MSO5000 User Guide 1-13
Front Panel Function Overview

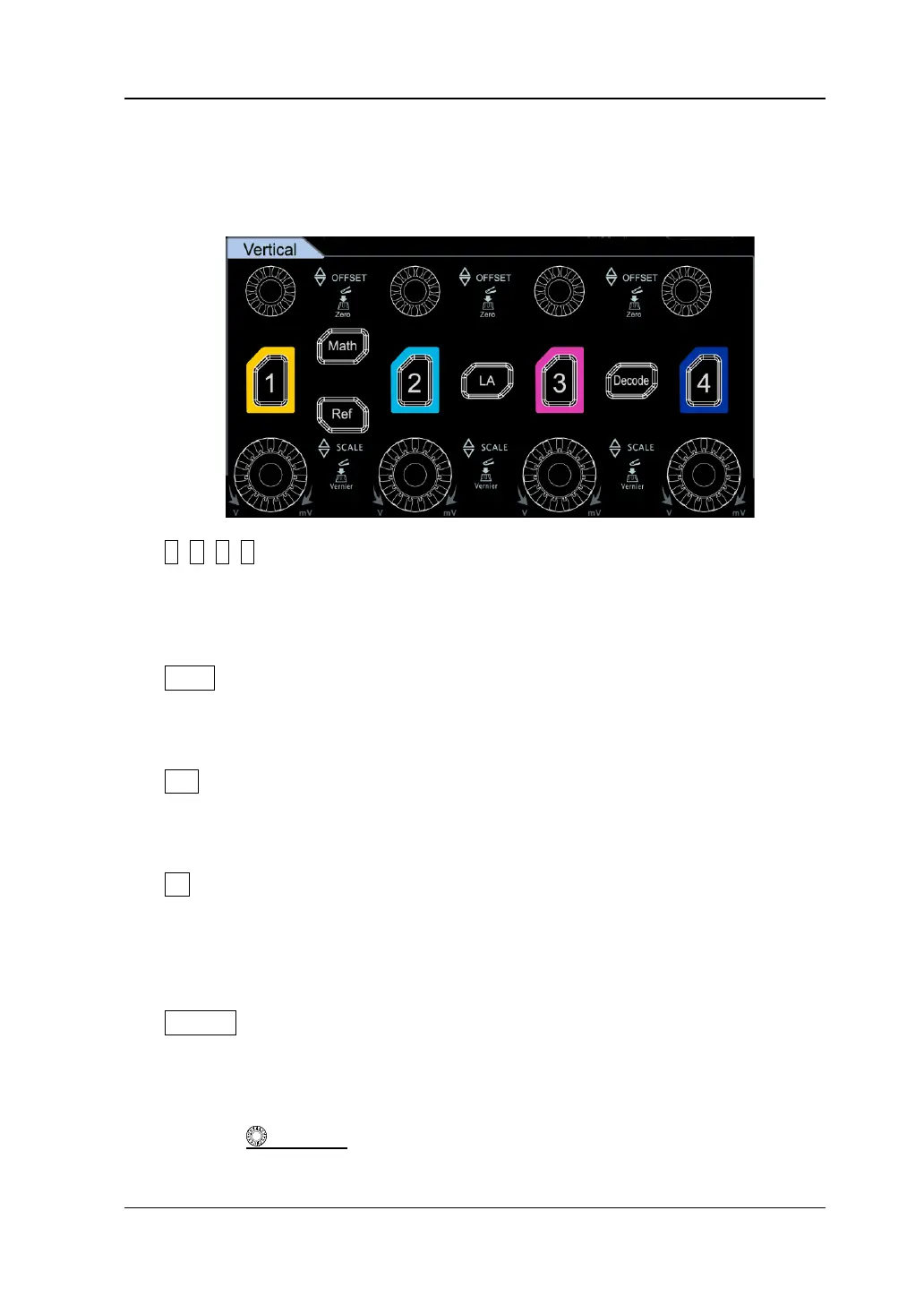

Vertical
⚫ 1, 2, 3, 4: indicates the analog channel switch key. The four channels are
marked by different colors which are also used to mark both the corresponding
waveforms of the specified channel on the screen and the channel input
connectors.
⚫ Math: indicates the math operation key. Press this key to enable the math
operation function. The math operations include A+B, A-B, A× B, A/B, FFT, and
etc. Besides, you can also set the math operation label.
⚫ Ref: indicates the reference waveform key. Press this key to open the
reference waveform setting menu. You can compare the actually measured
waveform with the reference waveform to locate the circuit failure.
⚫ LA: indicates the logic analyzer key. Press this key to open the logic analyzer
control menu. You can enable or disable any channel or channel group, modify
the waveform sizes of the digital channel, modify the threshold of the digital
channel, and group the 16 digital channels. Besides, you can also set a label for
each digital channel.
⚫ Decode: indicates the decode key. Press this key to open the decode setting
menu, and then you can set the decode options. MSO5000 series supports the
parallel decoding and many protocol decodings. (For details, refer to the
descriptions in "Protocol Decoding").
⚫ Vertical OFFSET: indicates the channel vertical offset knob. You can
rotate the knob to modify the vertical offset of the current channel waveform.

Rigol MSO5104 Specifications

General

Type	Tabletop
Product type	-
Bandwidth	100 MHz
Sampling rate	500000 MS/s
Channels quantity	16 channels
Minimum time base setting (per division)	3.5 ns
Display type	LCD
Display diagonal	9 \
AC input voltage	100 - 240 V
AC input frequency	45 - 440 Hz
Power consumption (max)	75 W
Non-operating altitude	3000 - 15000 m
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	0 - 50 °C

Weight and Dimensions

Width	367 mm
