RIGOL Chapter 9 Histogram Analysis
9-4 MSO5000 User Guide

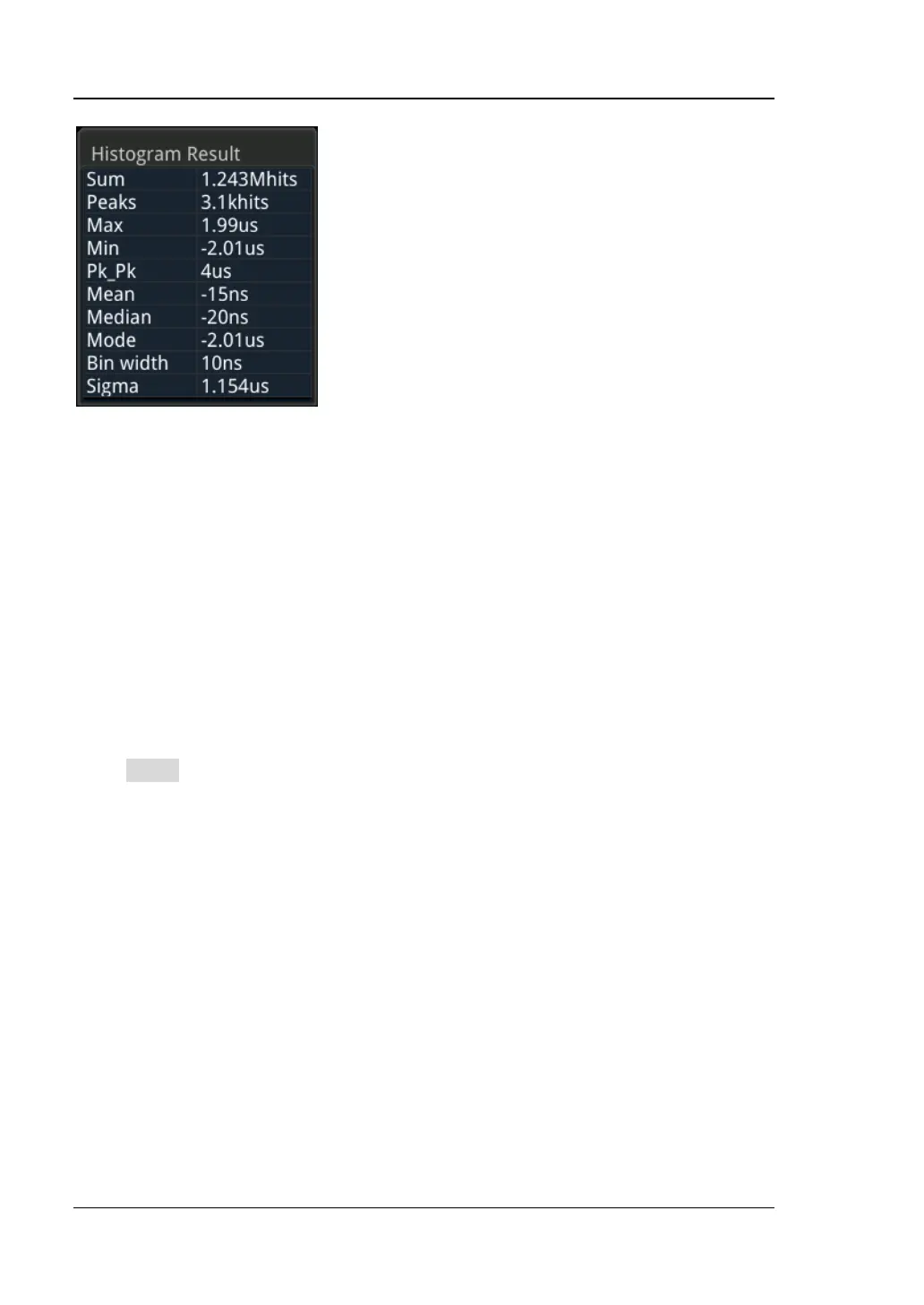

⚫ Sum: indicates the sum of all bins (buckets) in the histogram.
⚫ Peaks: indicates the maximum number of hits in any single bin.
⚫ Max: indicates the maximum value within the histogram range.
⚫ Min: indicates the minimum value within the histogram range.
⚫ Pk_Pk: indicates the Delta between the max. value and the min. value.
⚫ Mean: indicates the average value of the histogram.
⚫ Median: indicates the median value of the histogram.
⚫ Mode: indicates the mode value of the histogram.
⚫ Bin width: indicates the width of each bin (bucket) in the histogram.
⚫ Sigma: indicates the standard deviation of the histogram.
To Reset
Press Reset to reset the statistical data and restart to make statistics.

Rigol MSO5104 Specifications

General

Type	Tabletop
Product type	-
Bandwidth	100 MHz
Sampling rate	500000 MS/s
Channels quantity	16 channels
Minimum time base setting (per division)	3.5 ns
Display type	LCD
Display diagonal	9 \
AC input voltage	100 - 240 V
AC input frequency	45 - 440 Hz
Power consumption (max)	75 W
Non-operating altitude	3000 - 15000 m
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	0 - 50 °C

Weight and Dimensions

Width	367 mm
