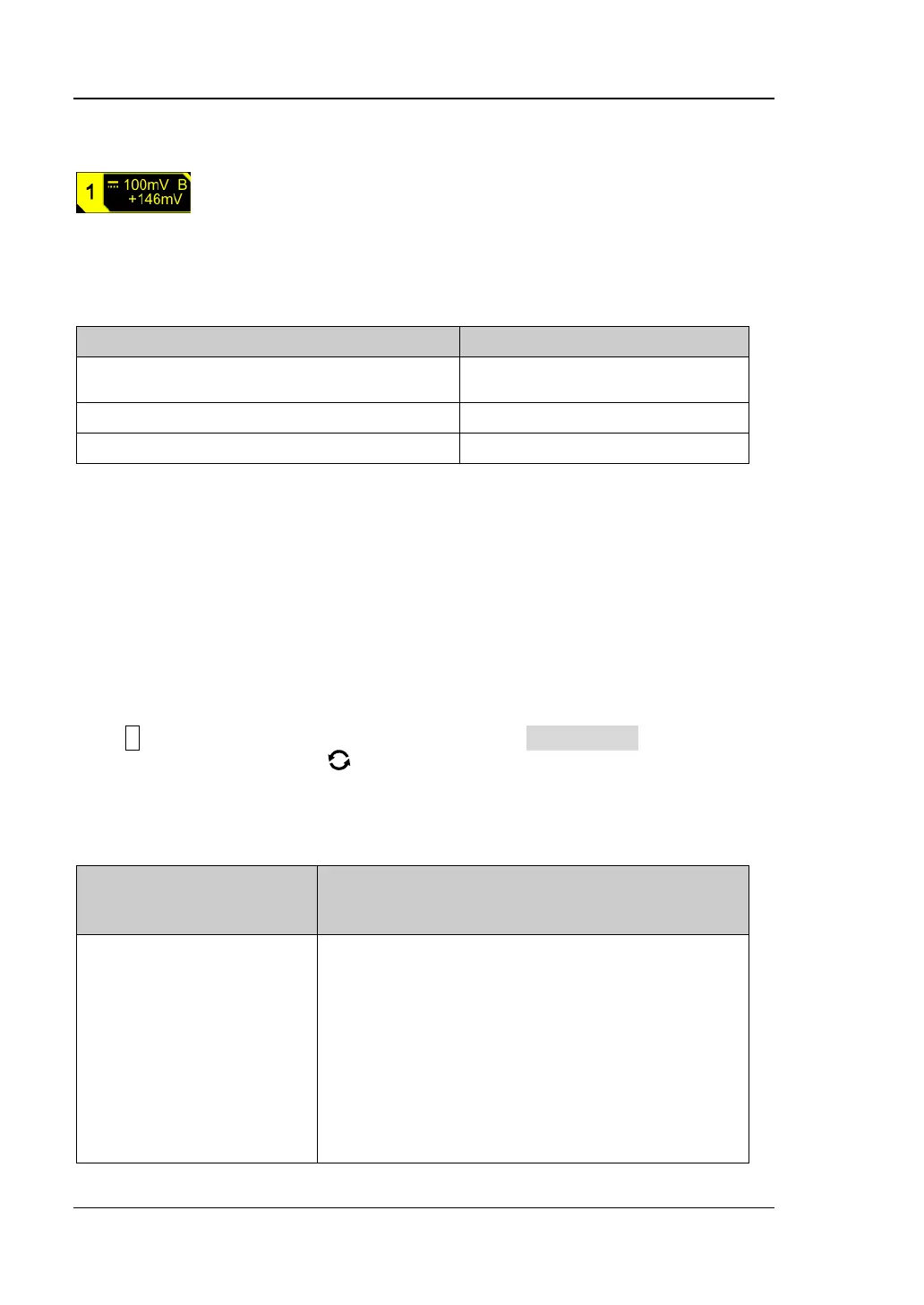

RIGOL Chapter 2 To Set the Vertical System
2-6 MSO5000 User Guide
as shown in the figure below. You can also enable the touch screen, and then tap the
CH1 setting menu to select the desired bandwidth limit.
The bandwidth limit that you select is based on the bandwidth of your oscilloscope
model, as shown in Table 2-1.
Table 2-1 Bandwidth Limit
Bandwidth of the Oscilloscope Model
Available Bandwidth Limit
70 M and 100 M
(MSO5072/MSO5074/MSO5102/MSO5104)
20 M
200 M (MSO5204)
20 M, 100 M
350 M (MSO5354)
20 M, 100 M, 200 M
Note: Bandwidth limit can not only reduce the noise, but also can attenuate or
eliminate the high frequency components of the signal.
Probe Ratio
MSO5000 series allows you to set the probe attenuation manually. To obtain the
correct measurement results, you must set the probe ratio properly. By default, the
probe ratio is 1X.
Press 1 to open the setting menu of CH1.Then, press Attenuation continuously or
rotate the multifunction knob to select the desired probe ratio. You can also
enable the touch screen, and then touch the CH1 setting menu to select the desired
probe ratio. The probe ratio values available are as shown in Table 2-2.
Table 2-2 Probe Ratio
Menu
Attenuation Ratio
(display amplitude of the signal: actual amplitude
of the signal)
0.0001X
0.0002X
0.0005X
0.001X
0.002X
0.005X
0.01X
0.02X
0.05X
0.1X
0.0001:1
0.0002:1
0.0005:1
0.001:1
0.002:1
0.005:1
0.01:1
0.02:1
0.05:1
0.1:1

Rigol MSO5104 Specifications

General

Type	Tabletop
Product type	-
Bandwidth	100 MHz
Sampling rate	500000 MS/s
Channels quantity	16 channels
Minimum time base setting (per division)	3.5 ns
Display type	LCD
Display diagonal	9 \
AC input voltage	100 - 240 V
AC input frequency	45 - 440 Hz
Power consumption (max)	75 W
Non-operating altitude	3000 - 15000 m
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	0 - 50 °C

Weight and Dimensions

Width	367 mm
