Rigol MSO5104 User Manual

RIGOL Chapter 21 Remote Control
21-2 MSO5000 User Guide
Remote Control via USB
1. Connect the device
Use a USB cable to connect the oscilloscope (USB DEVICE interface) with the PC
(USB HOST interface).
2. Install the USB driver
This oscilloscope is a USB-TMC device. After you connect the oscilloscope to the
PC properly and power it on for the first time (the oscilloscope will be
automatically configured with the USB interface). In this case, "Found New

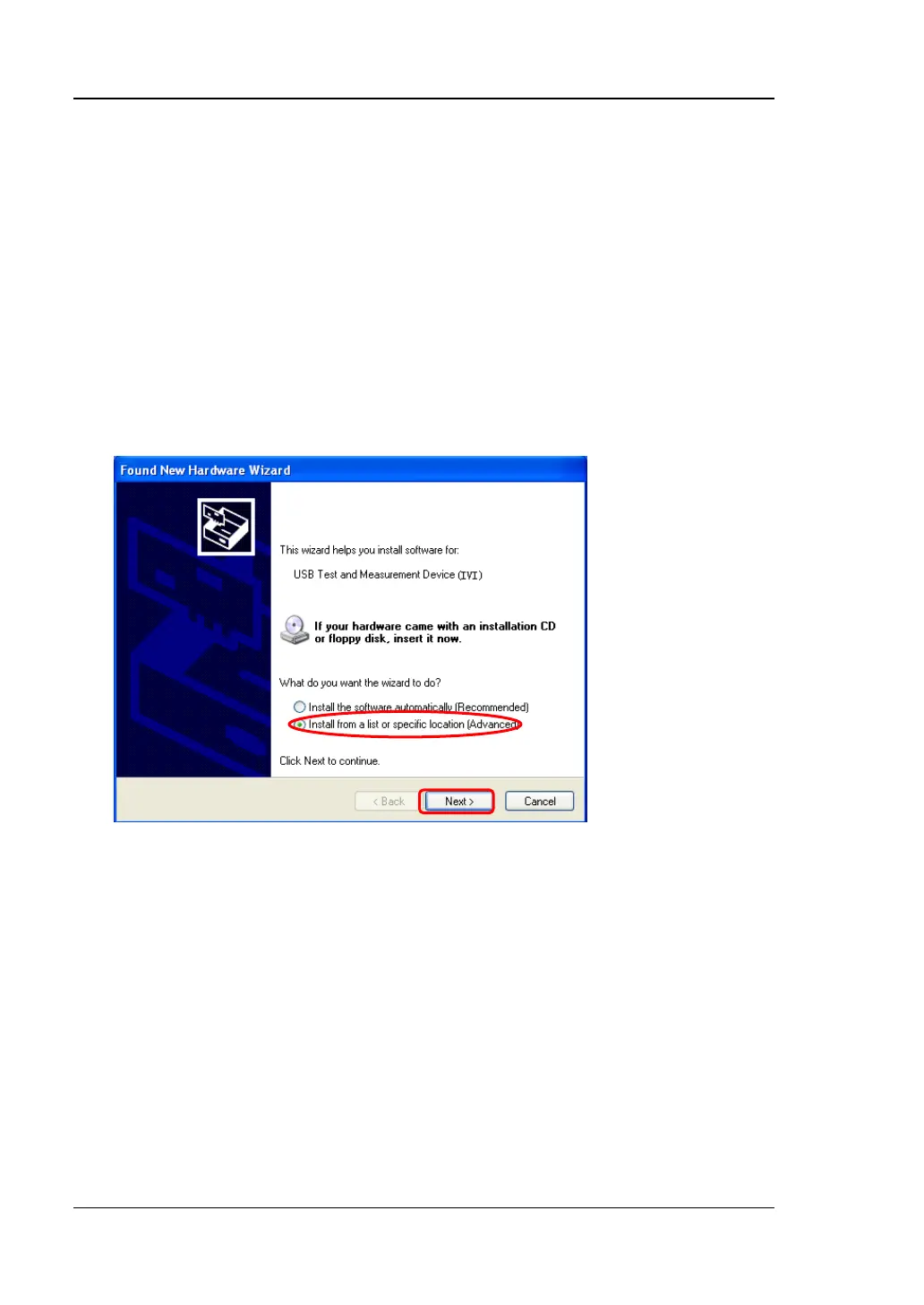

Hardware Wizard" dialog box appears on the PC. Please install "USB Test and
Measurement Device (IVI)" according to the instructions. The steps are as
follows:
1
2

Rigol MSO5104 Specifications

General

Type	Tabletop
Product type	-
Bandwidth	100 MHz
Sampling rate	500000 MS/s
Channels quantity	16 channels
Minimum time base setting (per division)	3.5 ns
Display type	LCD
Display diagonal	9 \
AC input voltage	100 - 240 V
AC input frequency	45 - 440 Hz
Power consumption (max)	75 W
Non-operating altitude	3000 - 15000 m
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	0 - 50 °C

Weight and Dimensions

Width	367 mm
