Chapter 1 Quick Start RIGOL
MSO5000 User Guide 1-17

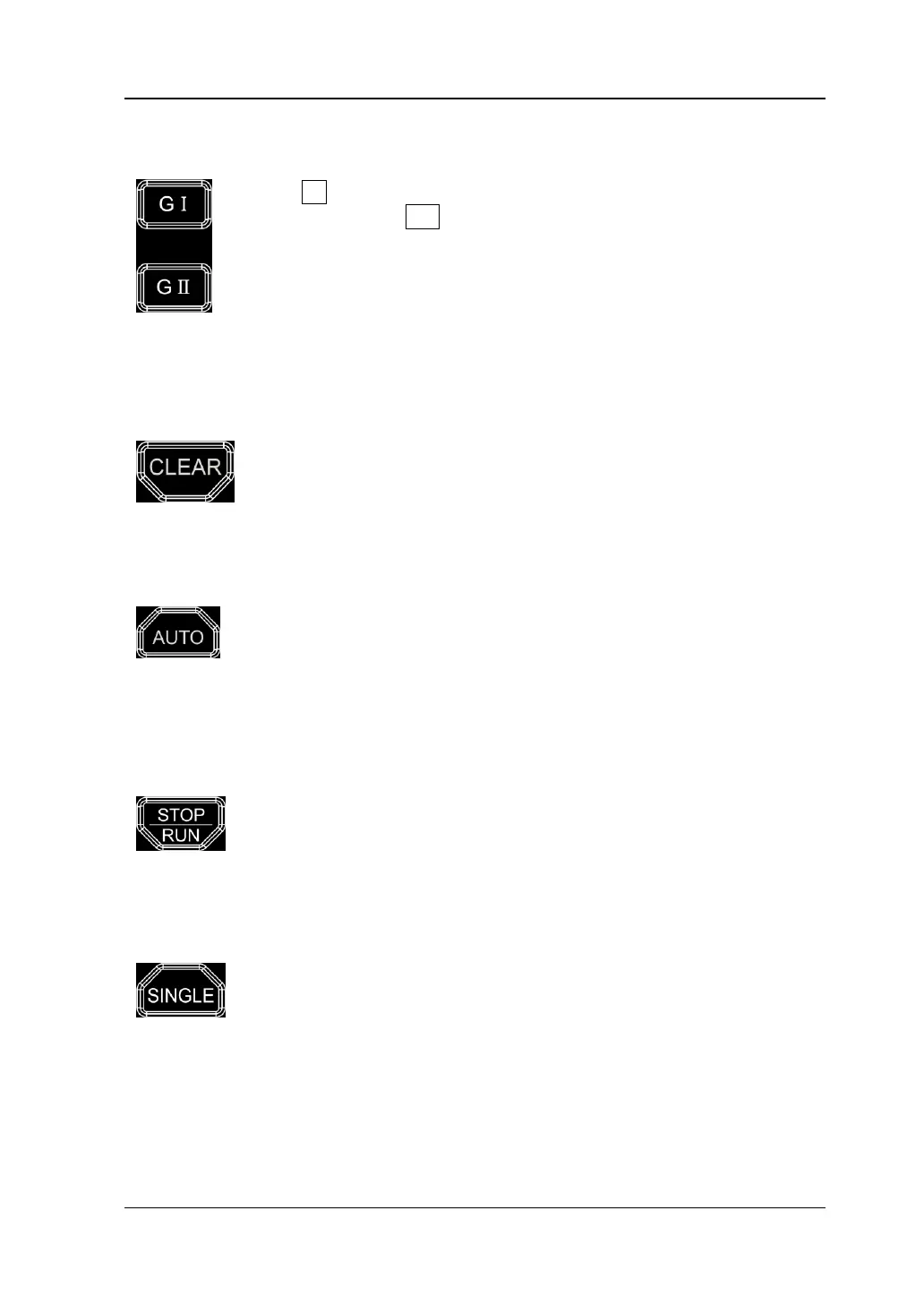

Function/Arbitrary Waveform Generator Setting
Press GI to enable or disable the output of the [GI] connector on the
front panel; press GII to enable or disable the output of the [GII]
connector on the front panel; and then enter the corresponding
Function/Arbitrary Waveform Generator setting interface. Enable or
disable the status display of the current signal.
Note: This function is only available for the model installed with the
MSO5000-AWG option.
Clear
Press this key to clear all the waveforms on the screen. If the
oscilloscope is in the "RUN" state, new waveforms will continue
being displayed.
Auto
Press this key to enable the waveform auto setting function. The
oscilloscope will automatically adjust the vertical scale, horizontal
time base, and trigger mode according to the input signal to realize
optimal waveform display.
RUN/STOP
Press this key to set the operating state of the oscilloscope to
"RUN" or "STOP". In the "RUN" state, the key is illuminated in
yellow. In the "STOP" state, the key is illuminated in red.
Single
Press this key to set the trigger mode to "Single".

Rigol MSO5104 Specifications

General

Type	Tabletop
Product type	-
Bandwidth	100 MHz
Sampling rate	500000 MS/s
Channels quantity	16 channels
Minimum time base setting (per division)	3.5 ns
Display type	LCD
Display diagonal	9 \
AC input voltage	100 - 240 V
AC input frequency	45 - 440 Hz
Power consumption (max)	75 W
Non-operating altitude	3000 - 15000 m
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	0 - 50 °C

Weight and Dimensions

Width	367 mm
