RIGOL Chapter 18 Store and Load
18-8 MSO5000 User Guide

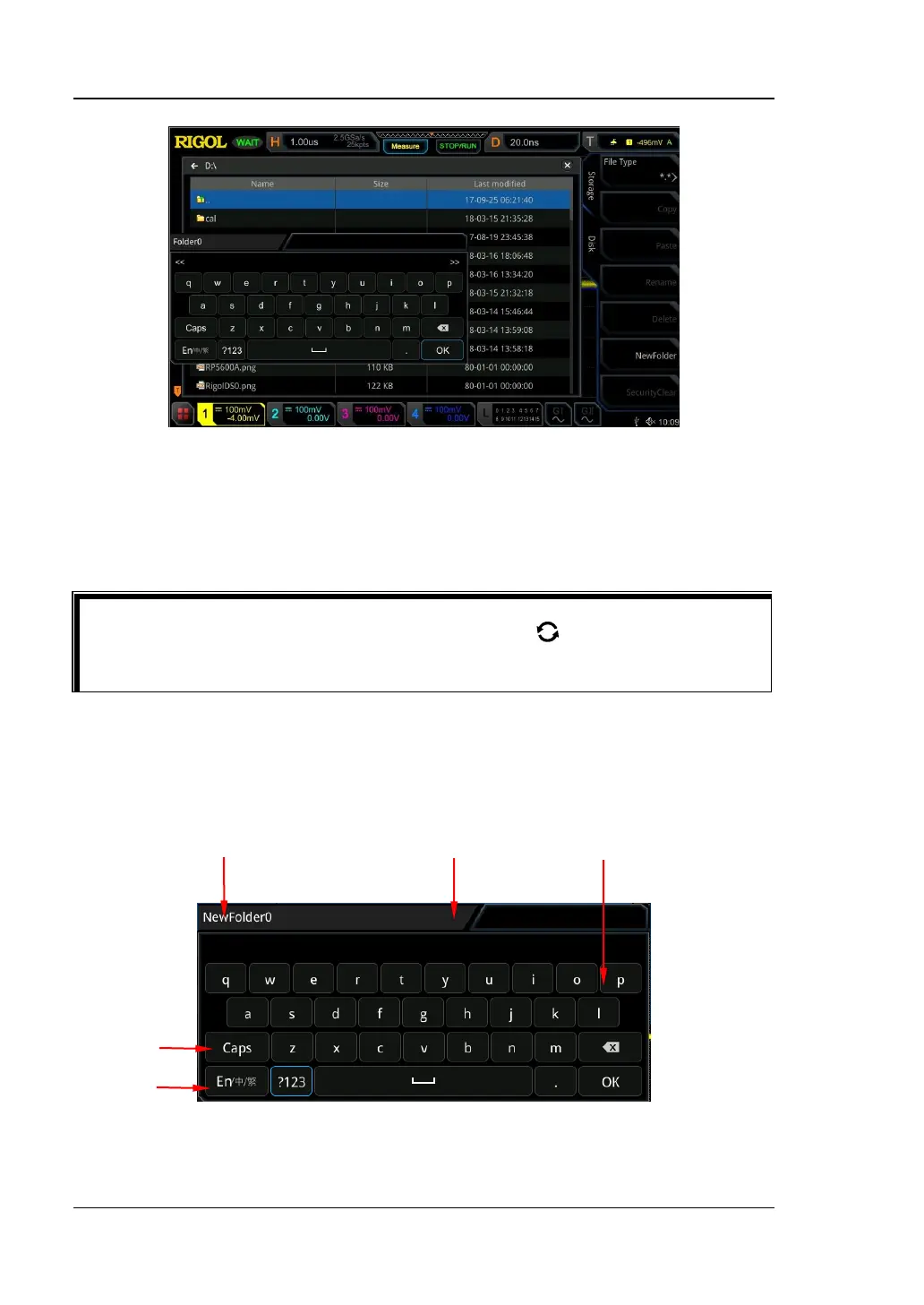

Figure 18-2 To Create a Folder
This oscilloscope supports Chinese/English input method. The length of the folder
name is limited to 22 bytes (one Chinese character occupies two bytes). The
following part introduces how to input a folder name using Chinese/English input
method.
English Input Method
For example, create a folder with the name "Filename".
Tip
During the name input, rotate the multifunction knob to select the desired
contents. Press down the knob to input the desired contents, or enable the touch
screen and tap the desired contents to select it.
Name Input Area Letter Input Area Virtual Keypad
Upper/Lower
Case Switch
Input Method
Switch
Input Method
Switch
Input Method
Switch

Rigol MSO5104 Specifications

General

Type	Tabletop
Product type	-
Bandwidth	100 MHz
Sampling rate	500000 MS/s
Channels quantity	16 channels
Minimum time base setting (per division)	3.5 ns
Display type	LCD
Display diagonal	9 \
AC input voltage	100 - 240 V
AC input frequency	45 - 440 Hz
Power consumption (max)	75 W
Non-operating altitude	3000 - 15000 m
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	0 - 50 °C

Weight and Dimensions

Width	367 mm
