⚫ △X: indicates the horizontal spacing between Cursor A and Cursor B.
⚫ △Y: indicates the vertical spacing between Cursor A and Cursor B.
1. Adjust Cursor Position
⚫ Press AX and rotate the multifunction knob to adjust the X value at
Cursor A.
⚫ Press BX and rotate the multifunction knob to adjust the X value at
Cursor B.
⚫ Press AY and rotate the multifunction knob to adjust the Y value at
Cursor A.
⚫ Press BY and rotate the multifunction knob to adjust the Y value at
Cursor B.
⚫ Press More → ABX and rotate the multifunction knob to adjust the X
value at Cursor A and the X value at Cursor B simultaneously.
⚫ Press More → ABY and rotate the multifunction knob to adjust the Y
value at Cursor A and the Y value at Cursor B simultaneously.
During the adjustment, the measurement results will change accordingly. The
adjustable range is limited within the screen.
Note: If one of the four items (AX, BX, AY, and BY) is selected, you can press
down the multifunction knob continuously to switch among the four
items. If you select either of the items (ABX and ABY), you can press down
the multifunction knob continuously to switch between them.
2. Display Lissajous Legend
This oscilloscope provides the Lissajous schematic diagram under different
frequencies and phase deviation, as shown in Figure 6-4. Press More →
Lissajous, then the Lissajous schematic diagram is displayed.

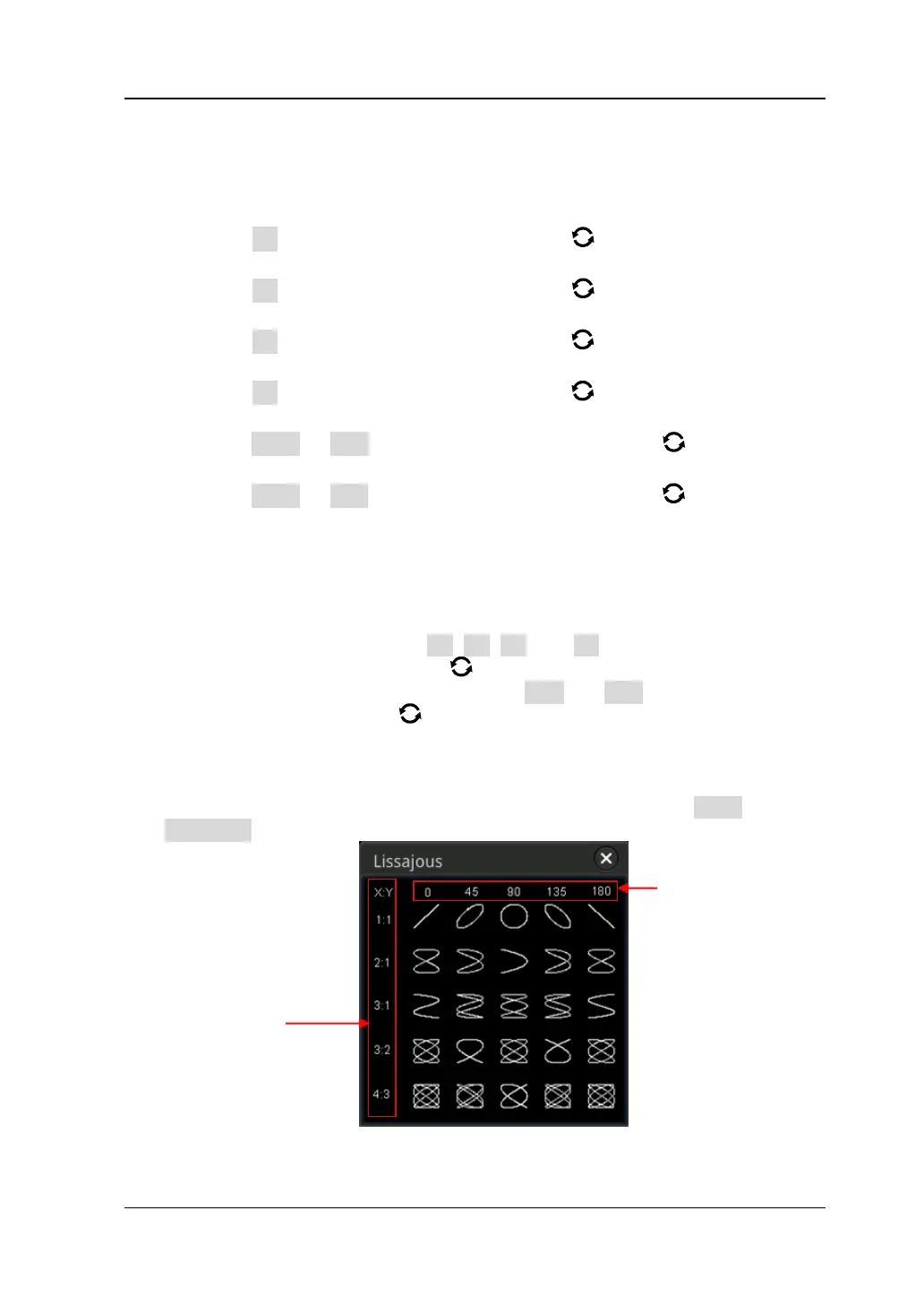

Figure 6-4 Lissajous Schematic Diagram
Phase deviation
between two signals
Frequency ratio
between two signals

Rigol MSO5104 Specifications

General

Type	Tabletop
Product type	-
Bandwidth	100 MHz
Sampling rate	500000 MS/s
Channels quantity	16 channels
Minimum time base setting (per division)	3.5 ns
Display type	LCD
Display diagonal	9 \
AC input voltage	100 - 240 V
AC input frequency	45 - 440 Hz
Power consumption (max)	75 W
Non-operating altitude	3000 - 15000 m
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	0 - 50 °C

Weight and Dimensions

Width	367 mm
