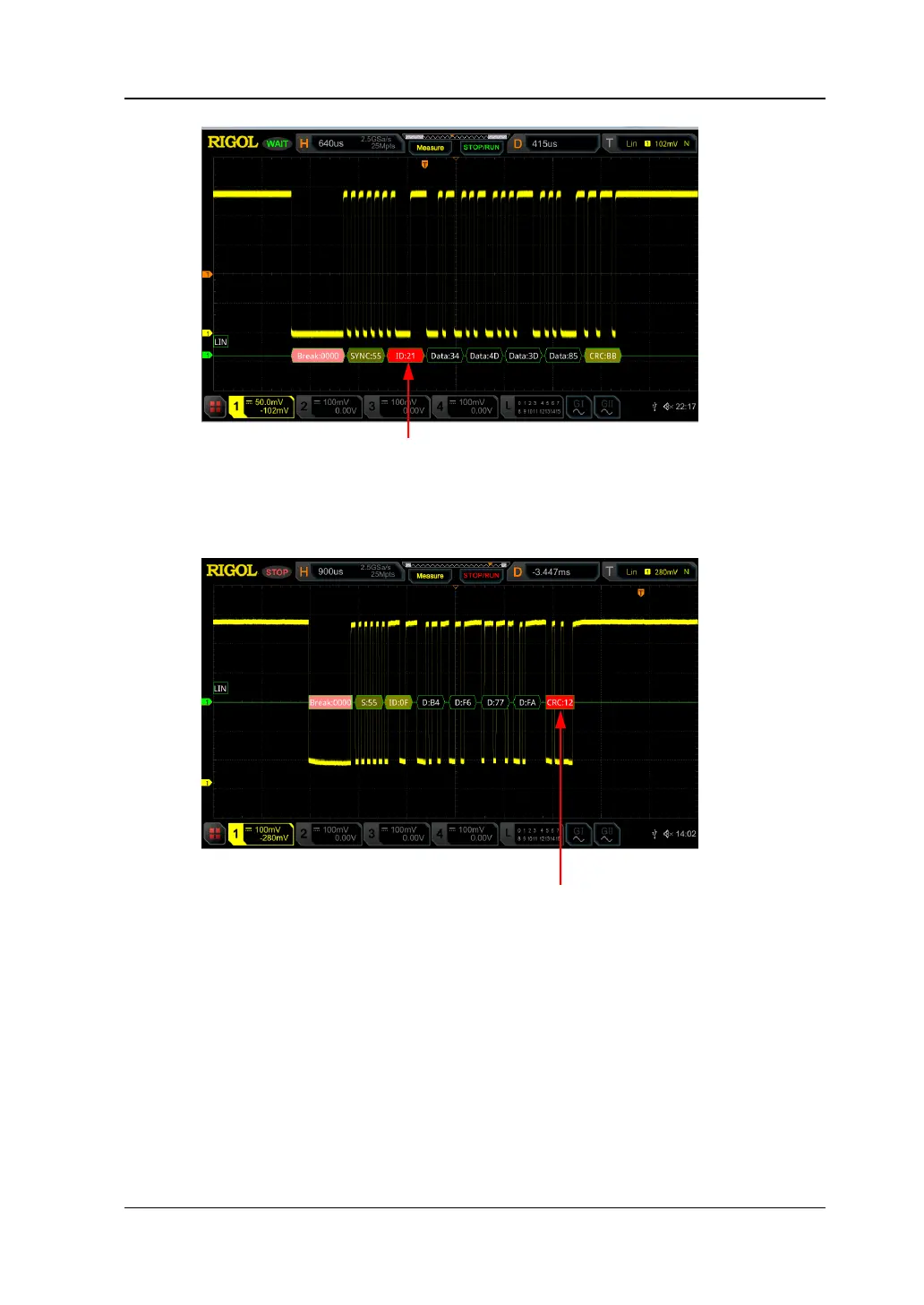

⚫ Checksum Error
If the checksum error is detected, CRC is displayed in red, as shown in the
figure below.
⚫ Sync Error
If the sync error is detected, SYNC is displayed in red, as shown in the
figure below.
Parity Error
Checksum Error

Rigol MSO5104 Specifications

General

Type	Tabletop
Product type	-
Bandwidth	100 MHz
Sampling rate	500000 MS/s
Channels quantity	16 channels
Minimum time base setting (per division)	3.5 ns
Display type	LCD
Display diagonal	9 \
AC input voltage	100 - 240 V
AC input frequency	45 - 440 Hz
Power consumption (max)	75 W
Non-operating altitude	3000 - 15000 m
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	0 - 50 °C

Weight and Dimensions

Width	367 mm
