Chapter 15 Search and Navigation Function RIGOL
MSO5000 User Guide 15-3
knob or use the pop-up numeric keypad to set the thresholds of SCL
and SDA.
⚫ SPI: Press Type to select "SPI" as the search type. For SPI Setup menu
settings, refer to descriptions in "SPI Trigger (Option)". Press
Threshold to enter the threshold setting menu. Rotate the multifunction
knob or use the pop-up numeric keypad to set the thresholds of CLK,
MISO, and CS.
3. Copy Trigger
⚫ Copy to Trigger
Press More → To Trigger to copy the selected search type to the same
trigger type. For example, if the current search type is "Edge", press To
Trigger to copy the edge search settings to the "Edge Trigger" settings.
⚫ From Trigger
Press More → From Trigger to copy from the trigger settings of the
selected search type to the search settings. For example, if the current
trigger type is "Edge Trigger", press From Trigger to copy from the
Edge trigger settings to the "Edge" search settings.
Note: If you select "From Trigger", you need to set the search type first,
and then copy the trigger type settings from the trigger menu.
4. Open or Close the Mark Table
Press MarkTable continuously to enable or disable the display of the mark table.

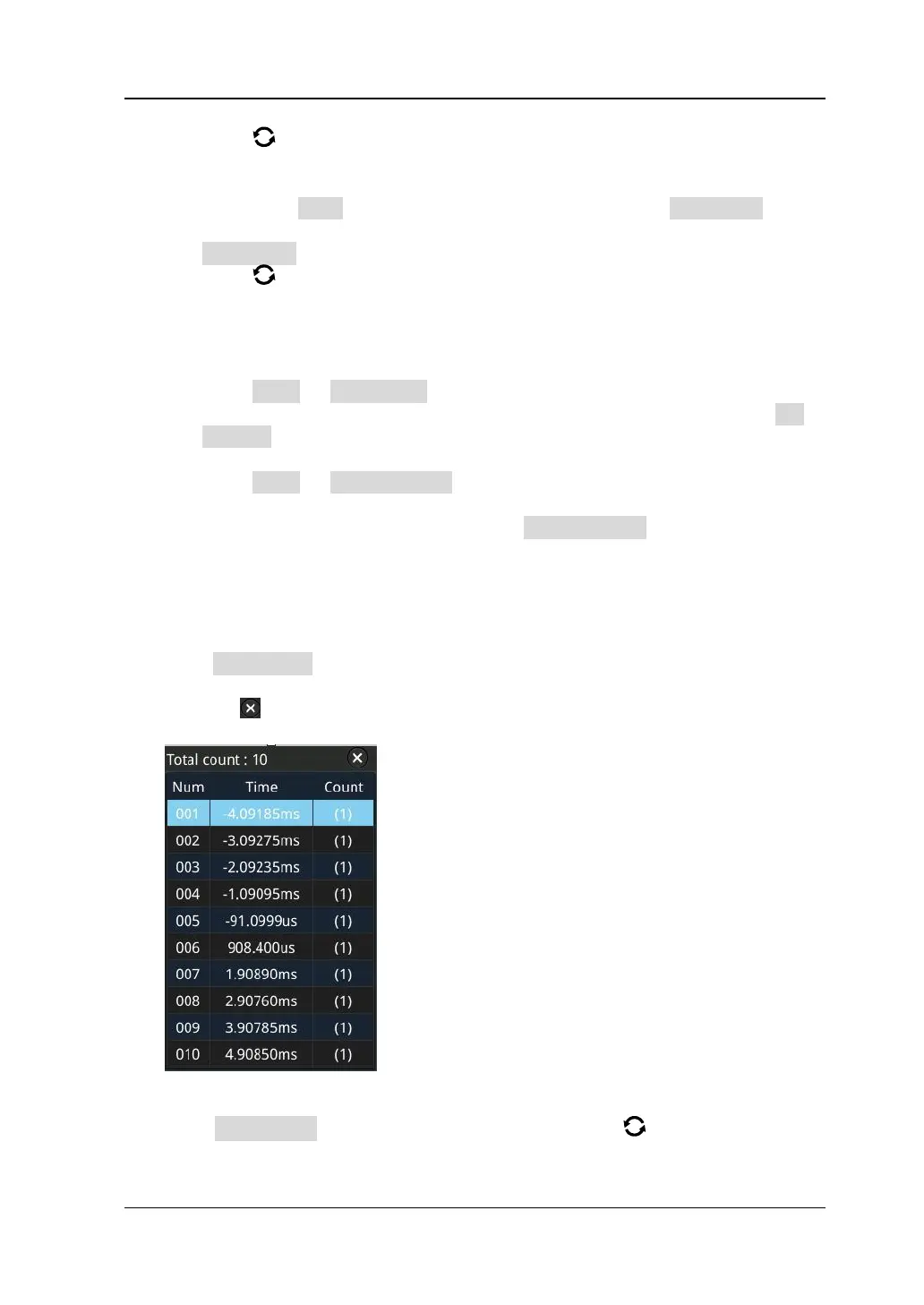

The mark table is shown as below. You can also enable the touch screen to tap
the icon at the right-upper corner of the table to close it.
5. Navigation
Press Navigation, then rotate the multifunction knob or use the pop-up
numeric keypad to set the event No. to navigate the event. You can also use the
