6. After finishing the input, rotate the multifunction knob and press OK. The
oscilloscope will create a folder or a specified type of file with this name under
the current directory.
Simplified Chinese (or Traditional Chinese) Input Method
For example, create a folder with the name "文件名". Note that the input method of
traditional Chinese is the same as that of the simplified Chinese.
1. Chinese Input Method
If the current input method is "中/繁/En", please go to Step 2. If the current
input method is "En/中/繁" or "繁/En/中", rotate the multifunction knob to
select the input switch key and press the knob continuously to switch to "
中/繁/En". "中" is located first and highlighted.
2. Clear the Pinyin Input Area and Name Input Area
If there is no character in the "Pinyin Input Area" and "Name Input Area", please
go to Step 3. If there are characters in the "Name Input Area" and "Pinyin Input
Area", press rotate the multifunction knob to select the delete key to
delete all the characters in the name input area in order.
3. Input the first Chinese character "文"
1) Input the pinyin "wen" in the "Pinyin Input Area"
Rotate the multifunction knob to select the first letter "w" in the pinyin
"wen" and press down the knob to input "w" in the "Pinyin Input Area". Use
the same method to input the remaining letters "en" in the pinyin "wen".
After finishing the input, the Chinese characters available are displayed in
the "Chinese Character Selecting Area".
2) Select the desired Chinese character from the "Chinese Character Selecting
Area"
Rotate the multifunction knob to select "文", and press down the knob,

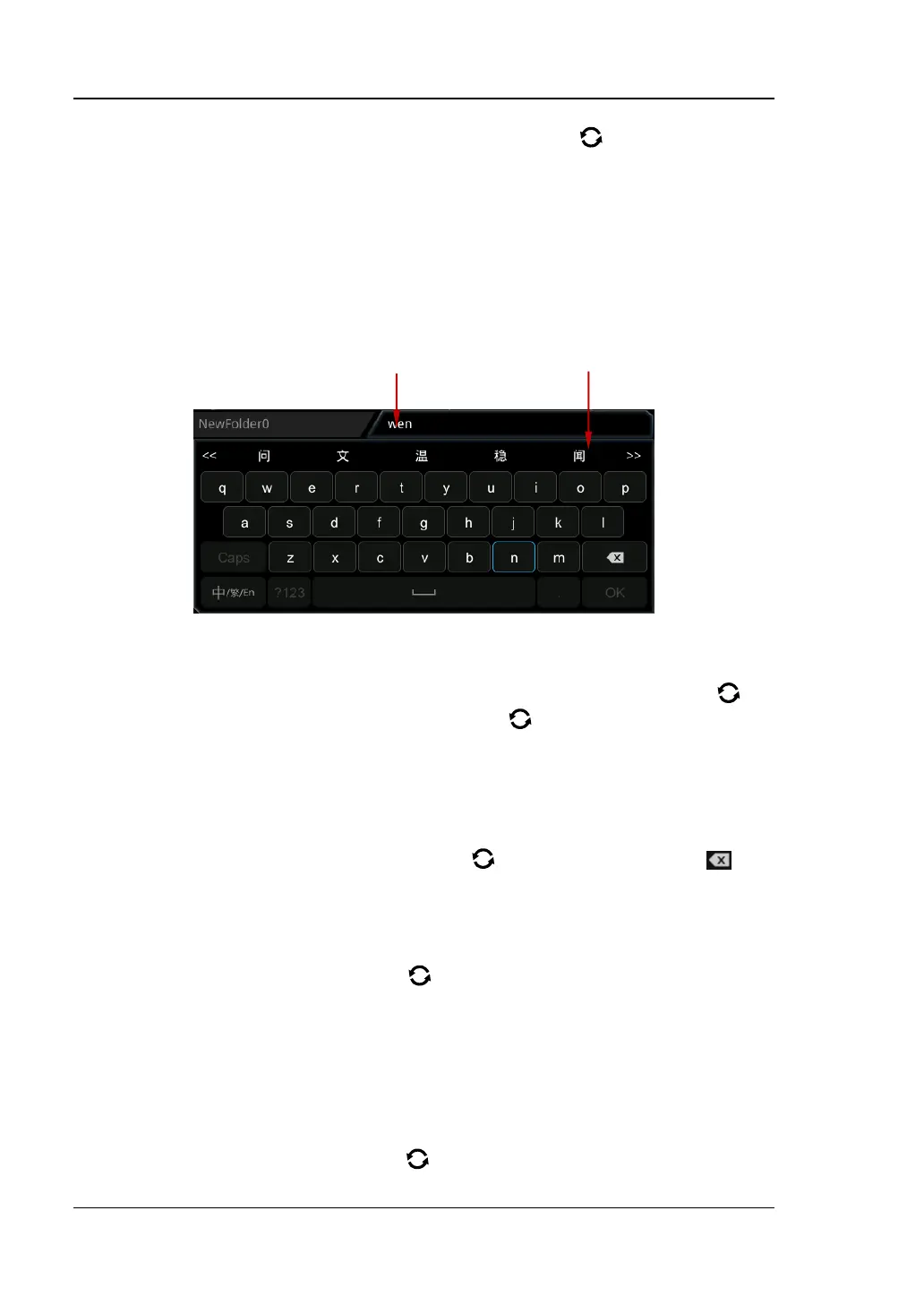

Pinyin Input Area Chinese Character Selecting Area

Rigol MSO5104 Specifications

General

Type	Tabletop
Product type	-
Bandwidth	100 MHz
Sampling rate	500000 MS/s
Channels quantity	16 channels
Minimum time base setting (per division)	3.5 ns
Display type	LCD
Display diagonal	9 \
AC input voltage	100 - 240 V
AC input frequency	45 - 440 Hz
Power consumption (max)	75 W
Non-operating altitude	3000 - 15000 m
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	0 - 50 °C

Weight and Dimensions

Width	367 mm
