Chapter 21 Remote Control RIGOL
MSO5000 User Guide 21-5
5. Control the instrument remotely

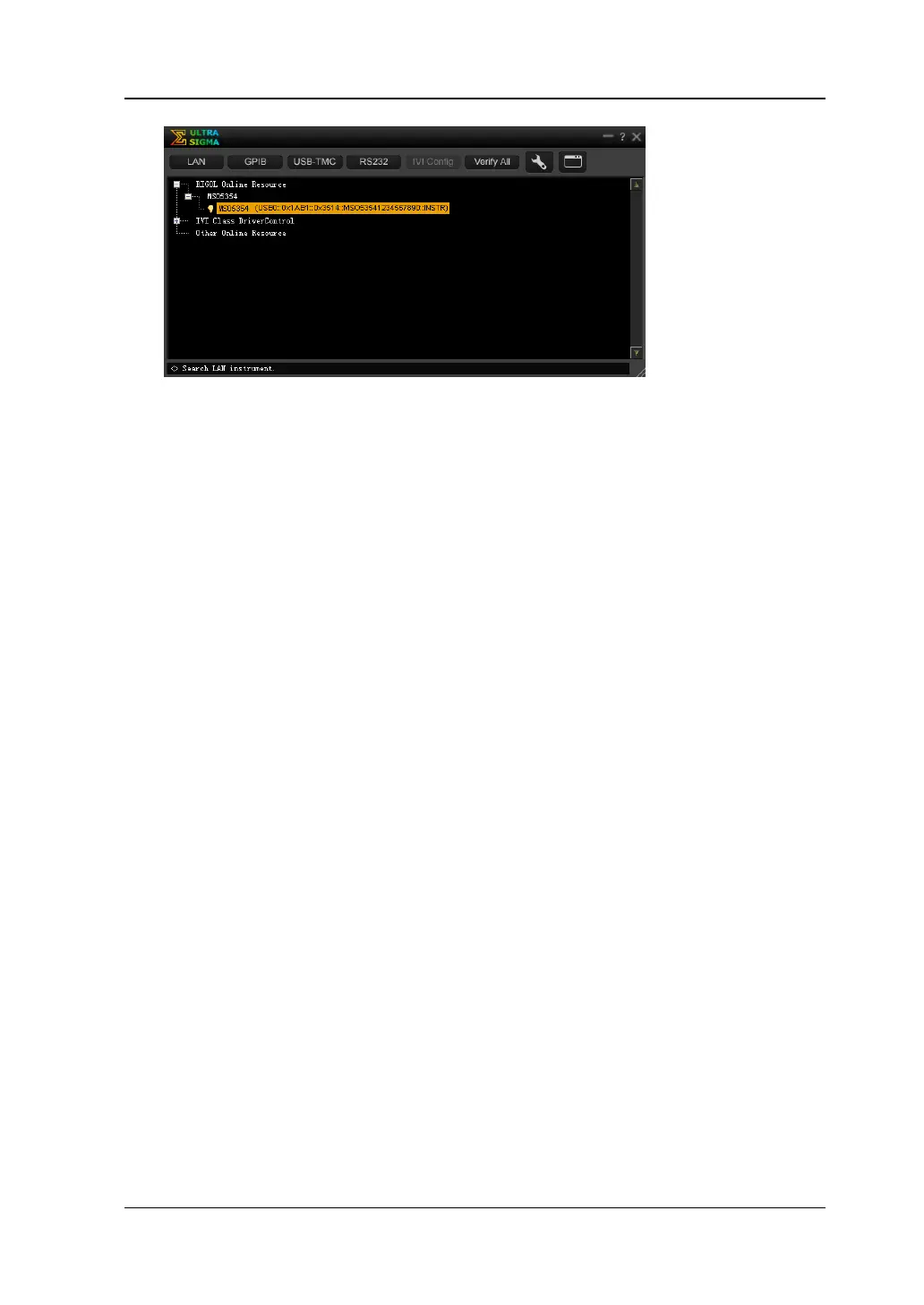

Right-click the resource name "MSO5354
(USB0::0x1AB1::0x3514::MSO53541234567890::INSTR)" and select "SCPI
Panel Control" to turn on the remote command control panel, through which you
can send commands and read data.

Rigol MSO5104 Specifications

General

Type	Tabletop
Product type	-
Bandwidth	100 MHz
Sampling rate	500000 MS/s
Channels quantity	16 channels
Minimum time base setting (per division)	3.5 ns
Display type	LCD
Display diagonal	9 \
AC input voltage	100 - 240 V
AC input frequency	45 - 440 Hz
Power consumption (max)	75 W
Non-operating altitude	3000 - 15000 m
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	0 - 50 °C

Weight and Dimensions

Width	367 mm
