Rigol MSO5104 User Manual

RIGOL Chapter 21 Remote Control
21-8 MSO5000 User Guide
If the resource cannot be searched automatically:
⚫ Select the GPIB card address of the PC from the drop-down box of
"GPIB0::" and select the GPIB address set in the oscilloscope from the
drop-down box of "0::INSTR".
⚫ Click to check whether the GPIB communication works
normally; if not, please follow the corresponding prompt messages to
handle it.
5. View the device resource

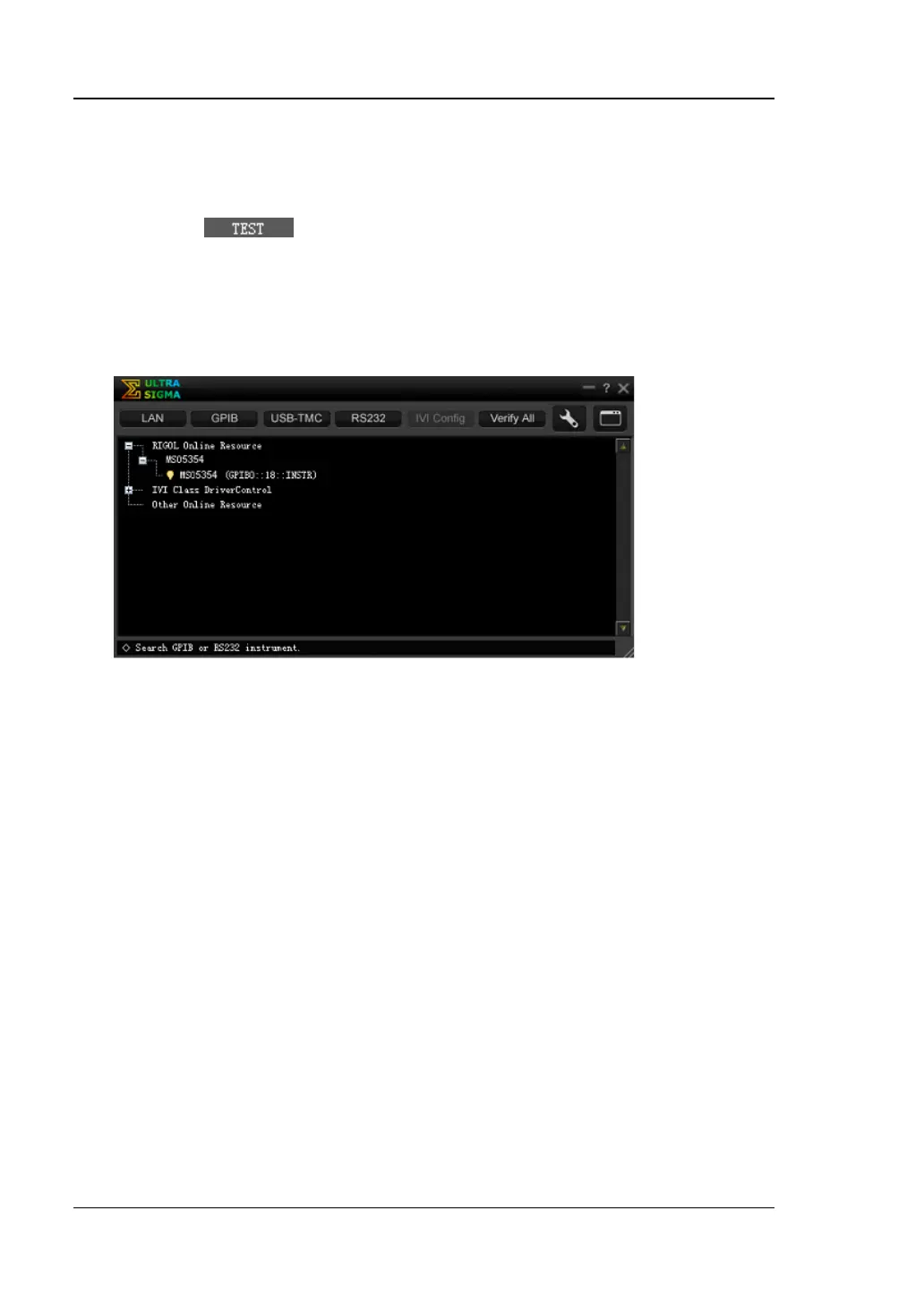

The searched instrument resource will be under the directory of "RIGOL Online
Resource", as shown in the following figure.
6. Control the instrument remotely
Right-click the resource name "MSO5354 (GPIB0::18::INSTR)", and select "SCPI
Panel Control" to open the remote command control panel. Then you can send
commands and read data through the panel.

Rigol MSO5104 Specifications

General

Type	Tabletop
Product type	-
Bandwidth	100 MHz
Sampling rate	500000 MS/s
Channels quantity	16 channels
Minimum time base setting (per division)	3.5 ns
Display type	LCD
Display diagonal	9 \
AC input voltage	100 - 240 V
AC input frequency	45 - 440 Hz
Power consumption (max)	75 W
Non-operating altitude	3000 - 15000 m
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	0 - 50 °C

Weight and Dimensions

Width	367 mm
