RIGOL Chapter 1 Quick Start
1-20 MSO5000 User Guide
3. Horizontal Time Base
⚫ Represents the time length per grid in the horizontal axis of the screen.
⚫ Use Horizontal SCALE to modify this parameter. The adjustable range
of the horizontal time base is different for different models.
4. Sample Rate/Memory Depth
⚫ Displays the current sample rate and memory depth of the analog channel.
⚫ The sample rate and the memory depth will change along with the
horizontal time base.
5. Auto Measurement Label
Enable the touch screen, and then tap the label. Up to 41 waveform parameters
are available for auto measurement. It also offers full-memory hardware
measurement function.

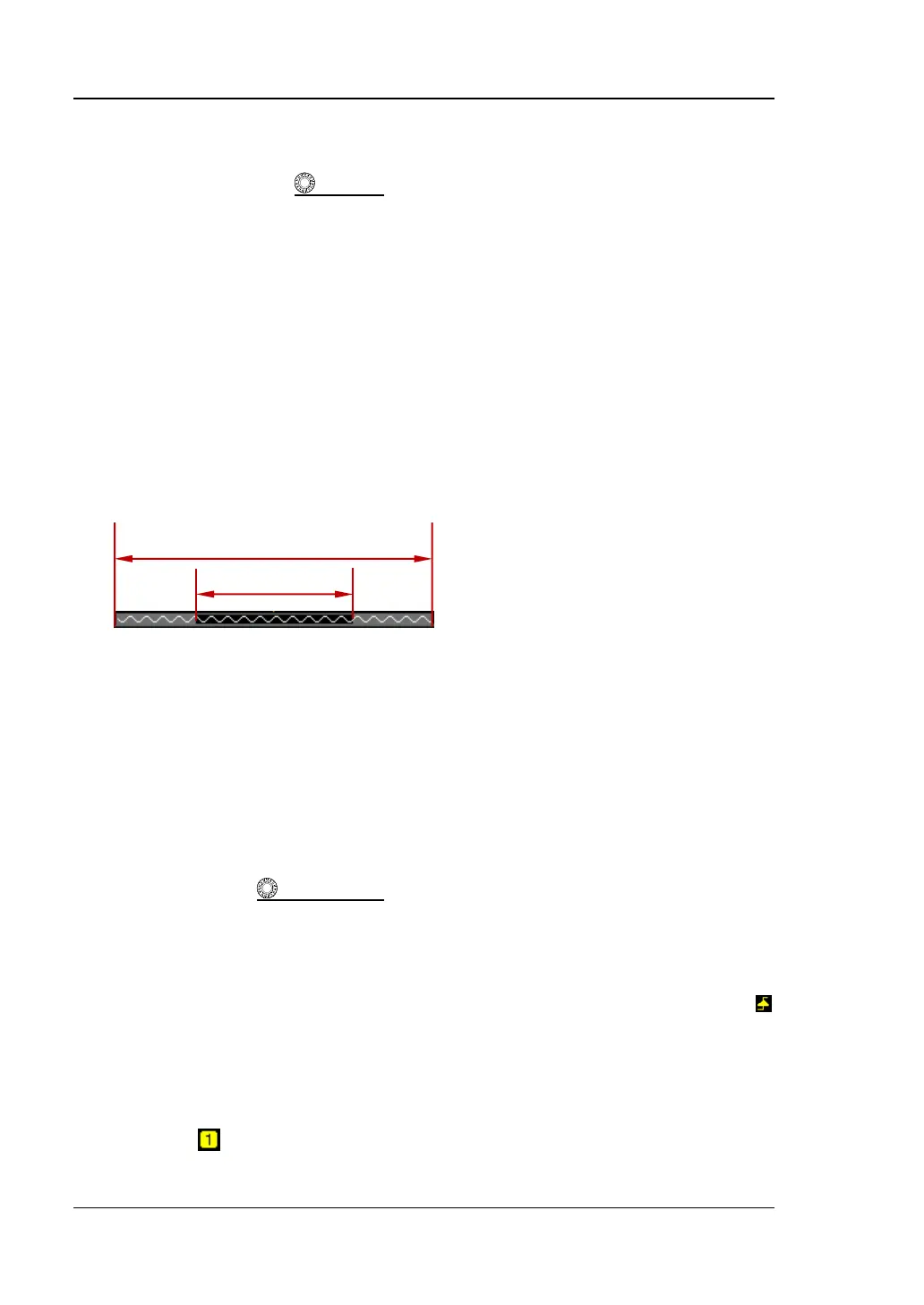

6. Waveform Memory
Provides a diagram of the position of the screen waveform in the memory.
7. Trigger Position
Displays the trigger position of the screen waveform and that of the waveform in
the memory.
8. Run/Stop Label
In the run state, the label is displayed in green; while in the stop state, it is
displayed in red. You can enable the touch screen to tap the icon "STOP/RUN" to
control its operating status.
9. Horizontal Position
Use Horizontal POSITION to modify this parameter. Press down this knob
to quickly reset the horizontal position.
10. Trigger Type
Displays the currently selected trigger type and trigger condition setting. When
you select different trigger types, different labels are displayed. For example,
represents triggering on the rising edge in "Edge" trigger.
11. Trigger Source
Displays the currently selected trigger source (CH1-CH4, AC Line, or D0-D15).
When you select different trigger sources, different labels are displayed. For
example, denotes that CH1 is selected as the trigger source.
screen waveform
waveform in the memory

Rigol MSO5104 Specifications

General

Type	Tabletop
Product type	-
Bandwidth	100 MHz
Sampling rate	500000 MS/s
Channels quantity	16 channels
Minimum time base setting (per division)	3.5 ns
Display type	LCD
Display diagonal	9 \
AC input voltage	100 - 240 V
AC input frequency	45 - 440 Hz
Power consumption (max)	75 W
Non-operating altitude	3000 - 15000 m
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	0 - 50 °C

Weight and Dimensions

Width	367 mm
