Chapter 1 Quick Start RIGOL
MSO5000 User Guide 1-25
(a) (b)

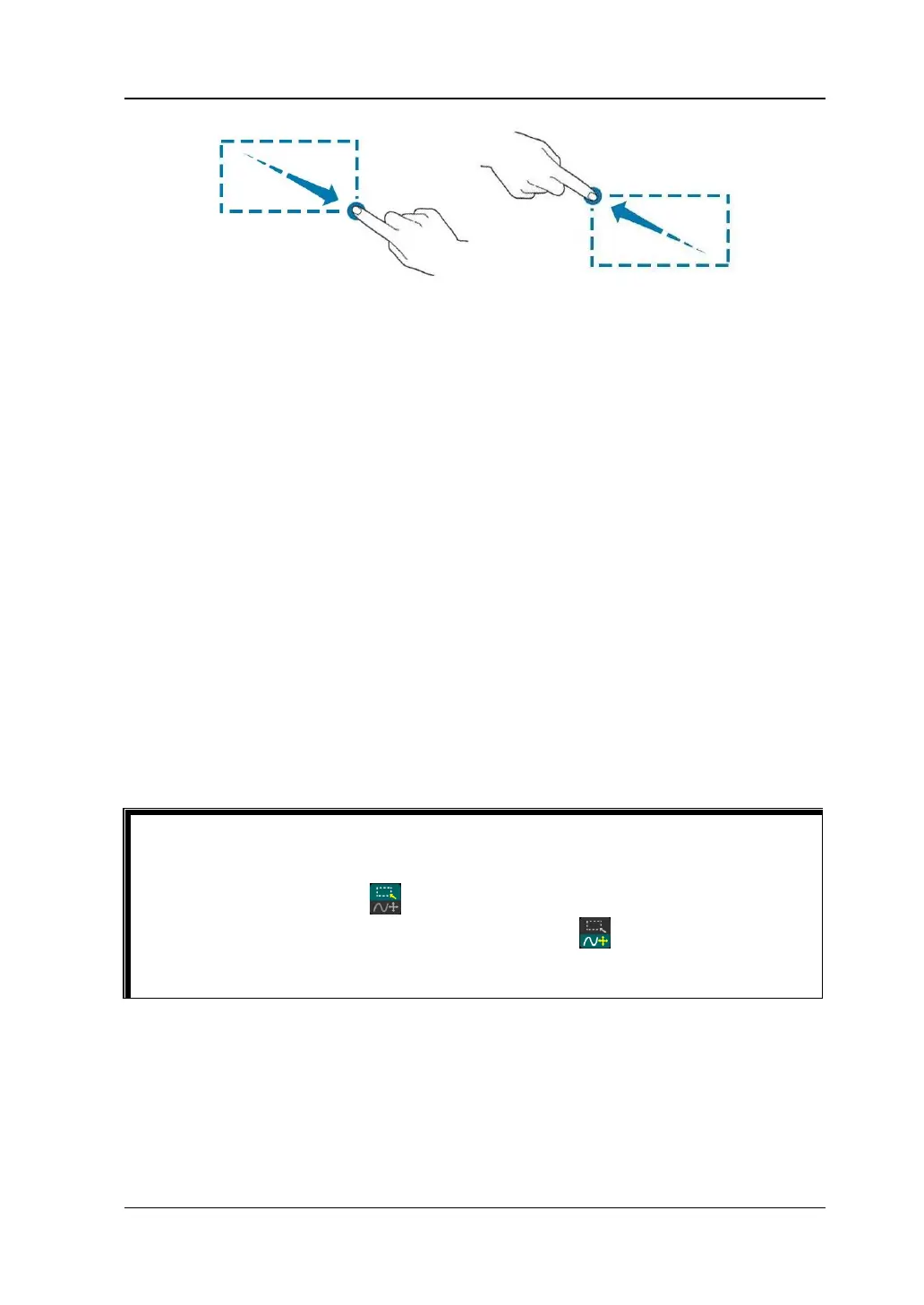

Figure 1-17 Rectangle Drawing Gesture
⚫ Select "Trigger zone A":
➢ Draw the region for Trigger zone A;
➢ Open Trigger zone A;
➢ Open the "Zone Trigger" menu.
⚫ Select "Trigger zone B":
➢ Draw the region for Trigger zone B;
➢ Open Trigger zone B;
➢ Open the "Zone Trigger" menu.
⚫ Select "Histogram":
➢ Draw the region for the histogram;
➢ Open the "Histogram" menu.
⚫ Select "Horizontal zoom in": expands the waveforms in the horizontal direction.
Select "Horizontal zoom out": compresses the waveforms in the horizontal
direction.
⚫ Select "Vertical zoom in": expands the waveforms in the vertical direction. Select
"Vertical zoom out": compresses the waveforms in the vertical direction.
⚫ Select "Waveform zoom in": expands the waveforms both in the horizontal and
vertical direction. Select "Waveform zoom out": compresses the waveforms both
in the horizontal and vertical direction.
Tip
Tap the "Draw rect" icon to switch between the rectangle drawing and waveform
operation modes.
Tap the "Draw rect" icon, if is displayed, it indicates that the rectangle
drawing mode is enabled. Tap the "Draw rect" icon, if is displayed, it indicates
that the waveform operation mode is enabled. By default, the waveform operation
mode is enabled.

Rigol MSO5104 Specifications

General

Type	Tabletop
Product type	-
Bandwidth	100 MHz
Sampling rate	500000 MS/s
Channels quantity	16 channels
Minimum time base setting (per division)	3.5 ns
Display type	LCD
Display diagonal	9 \
AC input voltage	100 - 240 V
AC input frequency	45 - 440 Hz
Power consumption (max)	75 W
Non-operating altitude	3000 - 15000 m
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	0 - 50 °C

Weight and Dimensions

Width	367 mm
