Technical specifications
20220596E 47
Gyro compass input:...................Synchro 1:1 (RGC10/RGC50 gyrocompasses)
Heading or windvane input:.....Sin/cos max 12V DC
NFU steering lever input: ..........Port/stbd potential free contact
Robnet network interface:..........2 network connectors
Cable inlets:..................................Rubber glands for cable diam. 10-14 mm
Mounting:.....................................Bulkhead mount
Material:........................................Epoxy coated aluminium
Environmental Protection:.........IP44
Temperature range:
Operation:........................... 0 to +55 °C (+32 to +130 °F)
Storage:................................–30 to +80 °C (–22 to +176 °F)

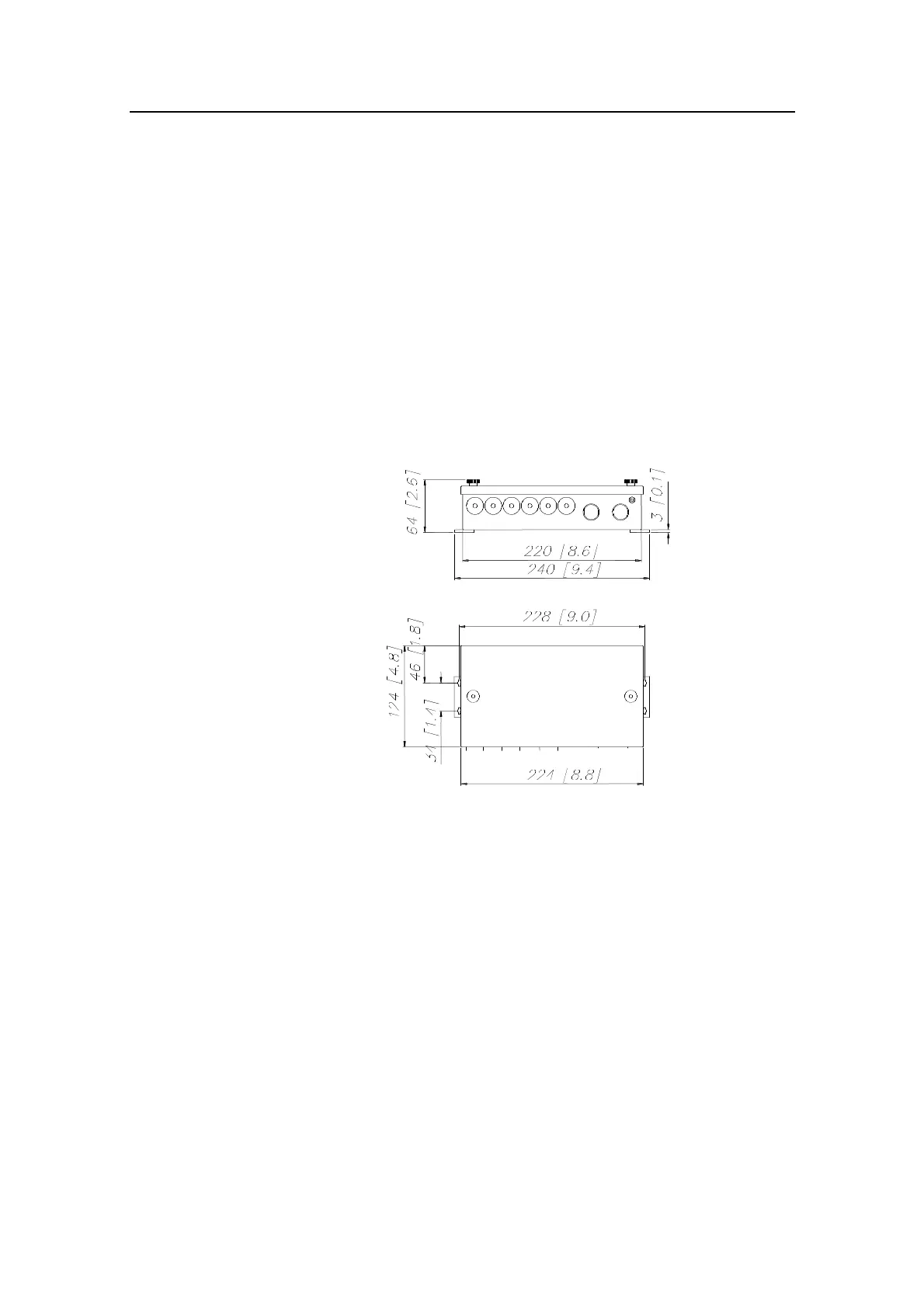

Figure 3-9 CI300X and NI300X - Dimensions
3.10 NI300X NMEA Interface
Dimensions:.................................See Figure 3-9
Weight:.........................................0,9 kg (2,0 lbs)
Power consumption:...................3 W
NMEA183 input/output:.............4 ports, max output load 20 mA
Heading output:..........................Anritsu and Furuno radar display (clock/data)
NMEA instrument supply:.........12V DC, max 0.25A
Robnet network interface:..........2 network connectors
Cable inlets:..................................Rubber glands for cable diam 10-14 mm
Mounting:.....................................Bulkhead mount
Material:........................................Epoxy coated aluminium
