Robertson AP21 and AP22 Autopilots
68 20220596E
with the cable shown on Figure 4-10 using the same colour
code.
Note ! The AP21 cable contains an air-breathing tube. Check that the tube is
open after you have cut the cable.
JP21 Jack Point installation
The JP21 can be used in conjunction with the AP21 control
units.
It provides a quick and simple means of connection/
disconnection of the AP21 at different locations on the boat.
The JP21 includes a watertight connector cover which must be
installed as shown. A 32 mm (1,26” dia.) hole needs to be drilled
for flush installation, along with 3 small screw holes. As
indicated, a watertight sealant must be applied to the mating
surfaces of the JP21 and the mounting panel. Also apply a thin
layer of Vaseline on the O-ring seal.
7m cable
7m cable
AP21
CONTROL UNIT
JP21
JACKPOINT
On-Off
Vsys+
JUNCTION UNIT
MAIN PCB
ROBNET
Bus+
Vsys
Alarm
Wh
Bn Gn
Bus
Pnk
Gry
Yel

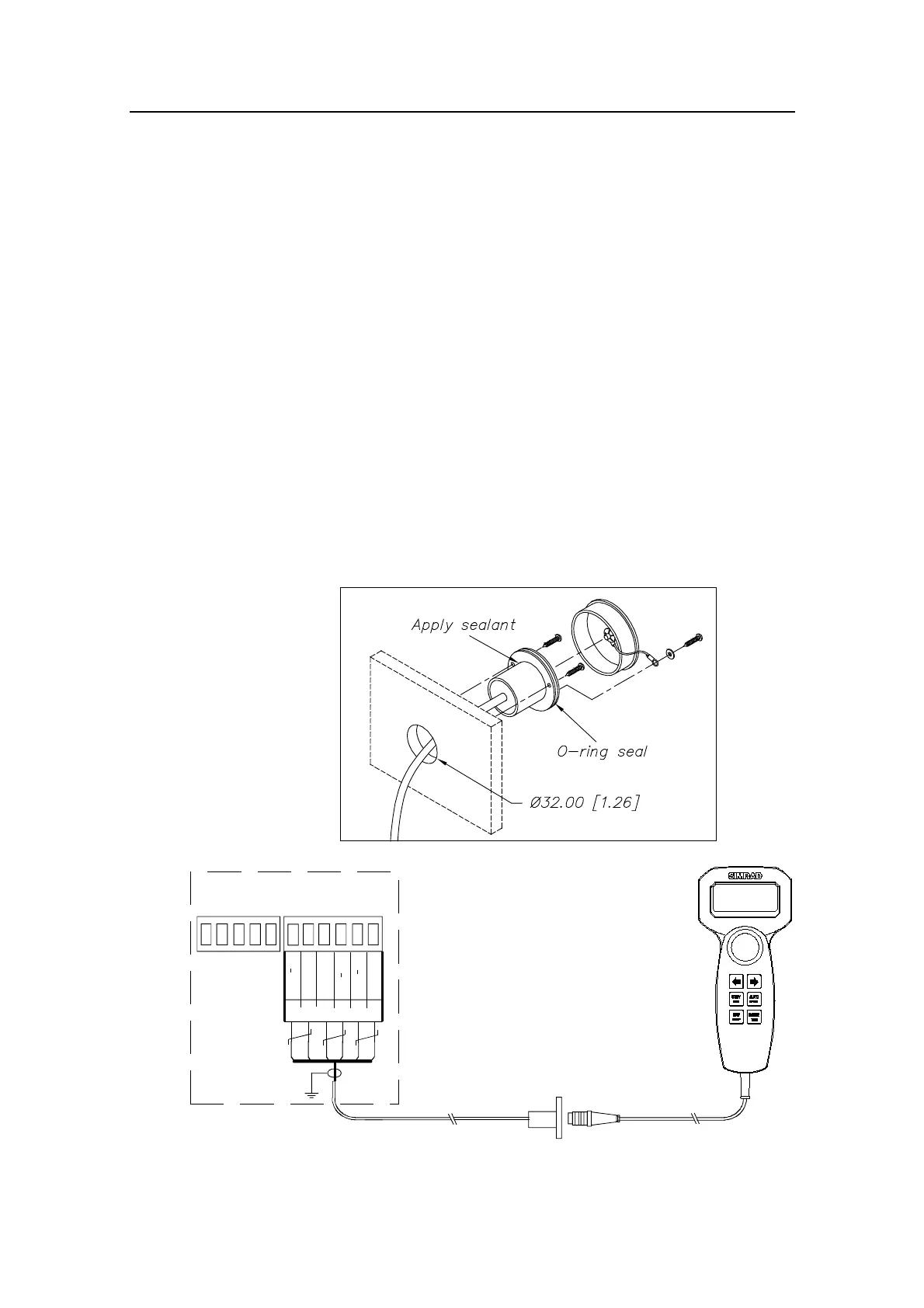

Figure 4-11 JP21 mounting
