Robertson AP21 - CD100 Course Detector

Installation
20220596E 83
JUNCTION UNIT
MAIN PCB
RF
RF+
Rudder
Feedb.
LFI3000 Mk2
LINEAR FEEDBACK
INTERFACE
TB1
White
Brown
TB2
White
Brown Green
Yellow
Figure 4-29 LF3000/LFI3000 Mk2 connection
Note ! The previous LFI3000 had no centre block terminal for screen
termination.
4.30 CD100 Course Detector
On some installations the owner may prefer to use the boats
own compass. The compass must be fully gimballed and have a
flat surface underneath to fit the CD100. Make hole for a 6 mm
screw in the bottom of the compass and mount the CD100 as
shown on the drawing. Secure the 6 mm screw through the
centre hole of the CD100. Make sure the cable does not prevent
the compass from moving freely in the gimbals.
Note!
Lock nut on mounting screw (pos.
1) for transportation only. To be
removed before mounting.
3
2
1
4
5
6

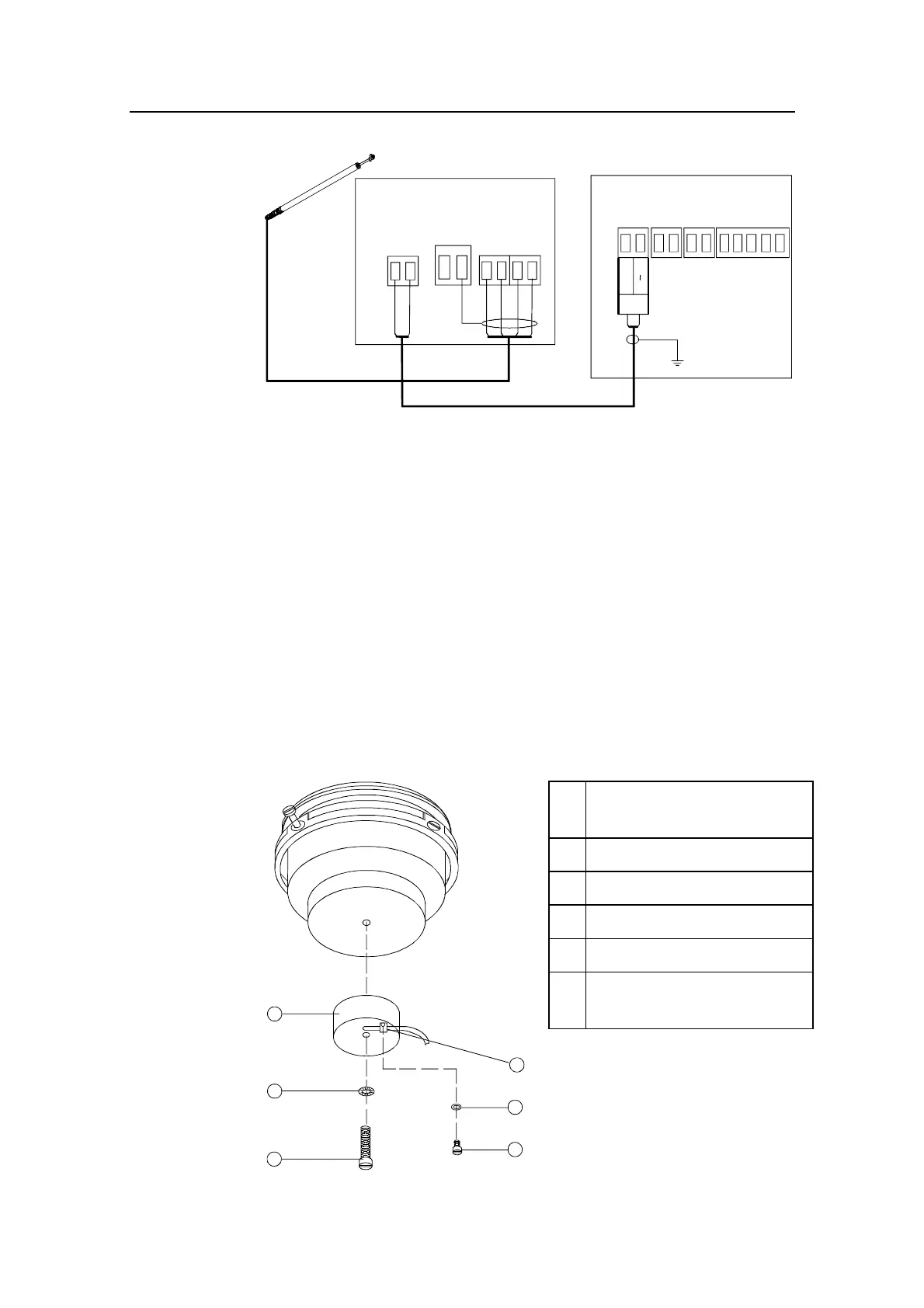

Figure 4-30 CD100 mounting
1 Screw M6x25mm, non
magnetic
2 Washer, non magnetic
3 Course detector
4 Cable clamp, nylon
5 Washer, non magnetic
6 Screw M3x10mm, non
magnetic
