Installation
20220596E 57
Observe the RF300 while someone turns the helm wheel
through the complete travel from full port to full stbd. rudder to
verify that the mechanical linkage to the RF300 is not
obstructed.
JUNCTION UNIT
MAIN PCB
Rudder
Feedb.
*
* NON POLARIZED
(COLOUR INDEPENDENT)
RF +
RF

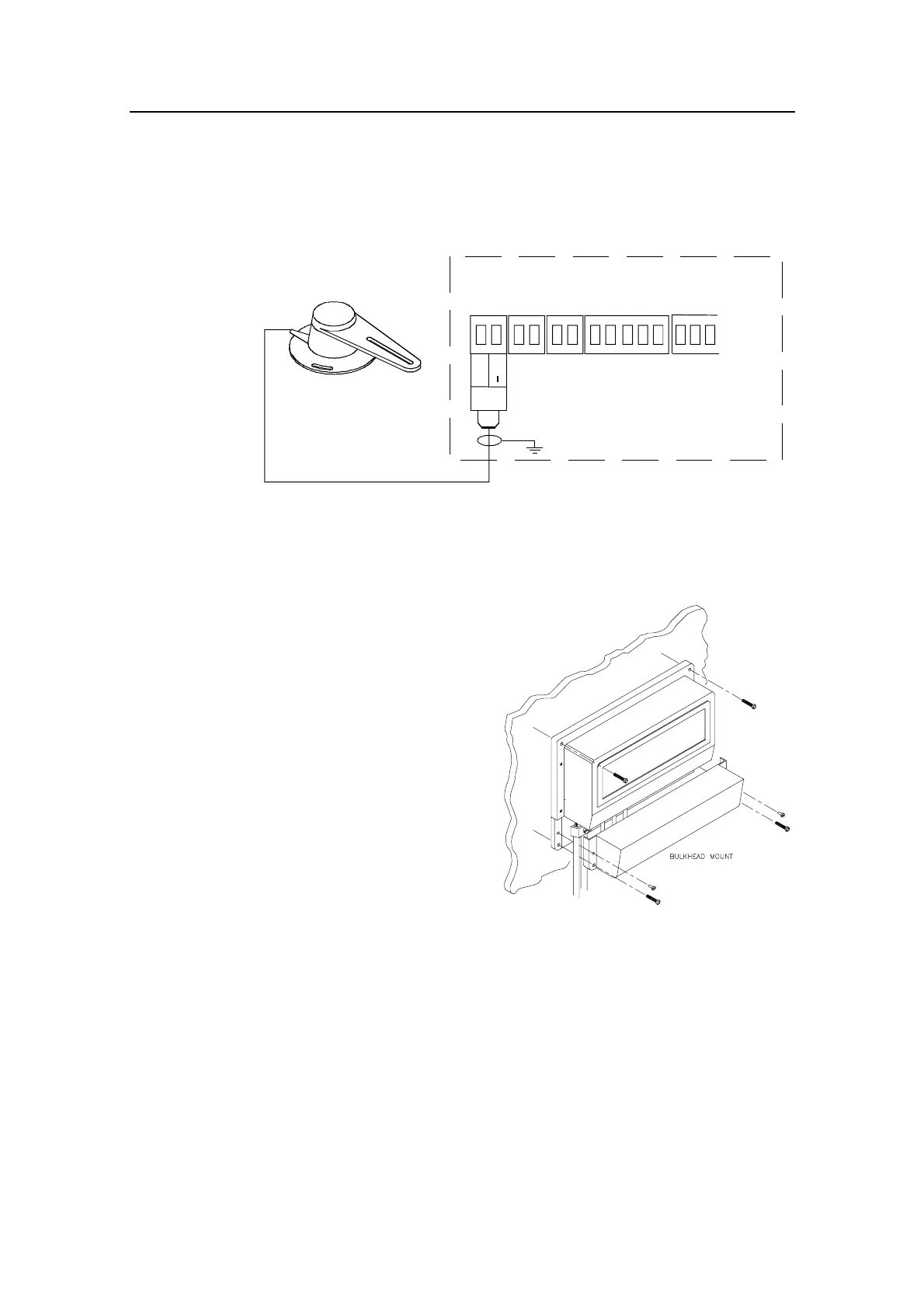

Figure 4-3 RF300 connection
4.7 Junction unit installation
The junction unit is
designed to operate in a
location that provides
ambient temperatures
below +55°C (+130°F).
Note ! The junction units (J3000X,
J300X and J300X-40) are not
weather proof and should be
mounted vertically as shown
in a dry place between the
control unit and the drive
unit.
Figure 4-4 J3XX mounting
