Chapter 6 Configure the Redundant I/O System

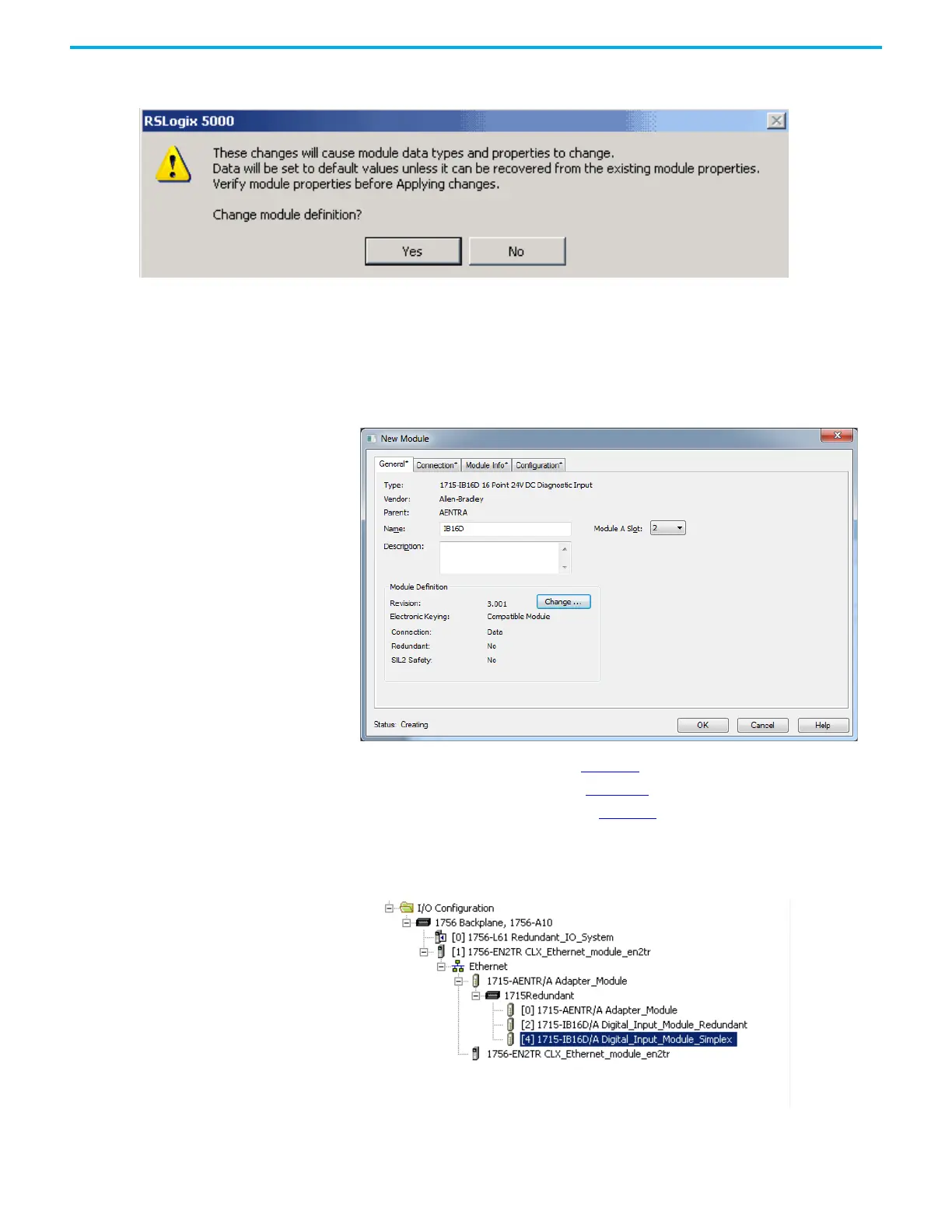

A Verify Module Properties dialog box appears
.
7. Click Yes.
A new General tab appears in Simplex mode.
Notice there is now only one slot number that is displayed and
Redundant now is ‘No’.
8. Click the Connection tab, see page 169
.
9. Click the Module Info tab, see page 170.
10. Click the Configuration tab, see page 181.
11. Click OK.
The I/O configuration folder of your project now looks similar to this.
