Chapter 6 Configure the Redundant I/O System

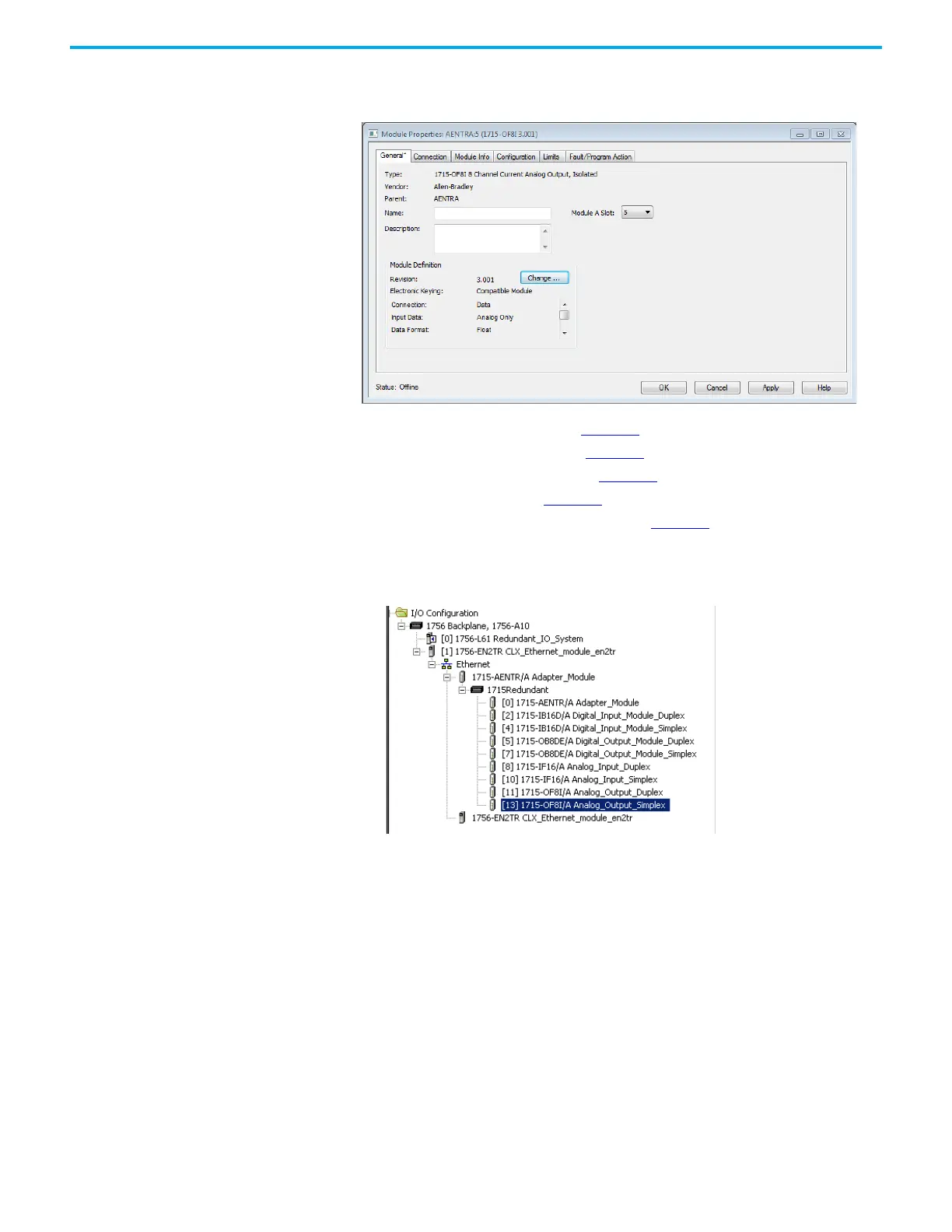

A new General tab appears showing only one slot as available. The
module is now in Simplex mode.
7. Click the Connection tab, see page 169
.
8. Click the Module Info tab, see page 194
.
9. Click the Configuration tab, see page 194
.
10. Click the Limits tab, see page 195
.
11. Click the Fault/Program Action tab, see page 197
.
12. Click OK.
The I/O configuration folder of your project now looks similar to this.
