Chapter 3 Communication Configuration
PowerFlex 755T
Communications
The PowerFlex 755T product supports 16 input and 16 output 16/32-bit
integer [INT/DINT] and floating point [REAL] DataLinks when using
Embedded EtherNet or 20-750-ENETR communication option module.
When using Logix V16 and later PowerFlex 755T parameters and Logix
DataLink tags automatically have the same data type and scaling factor.
Figure 30
and Figure 31 show similar 32-bit DataLinks when using a
PowerFlex 755T product with Embedded EtherNet communication.

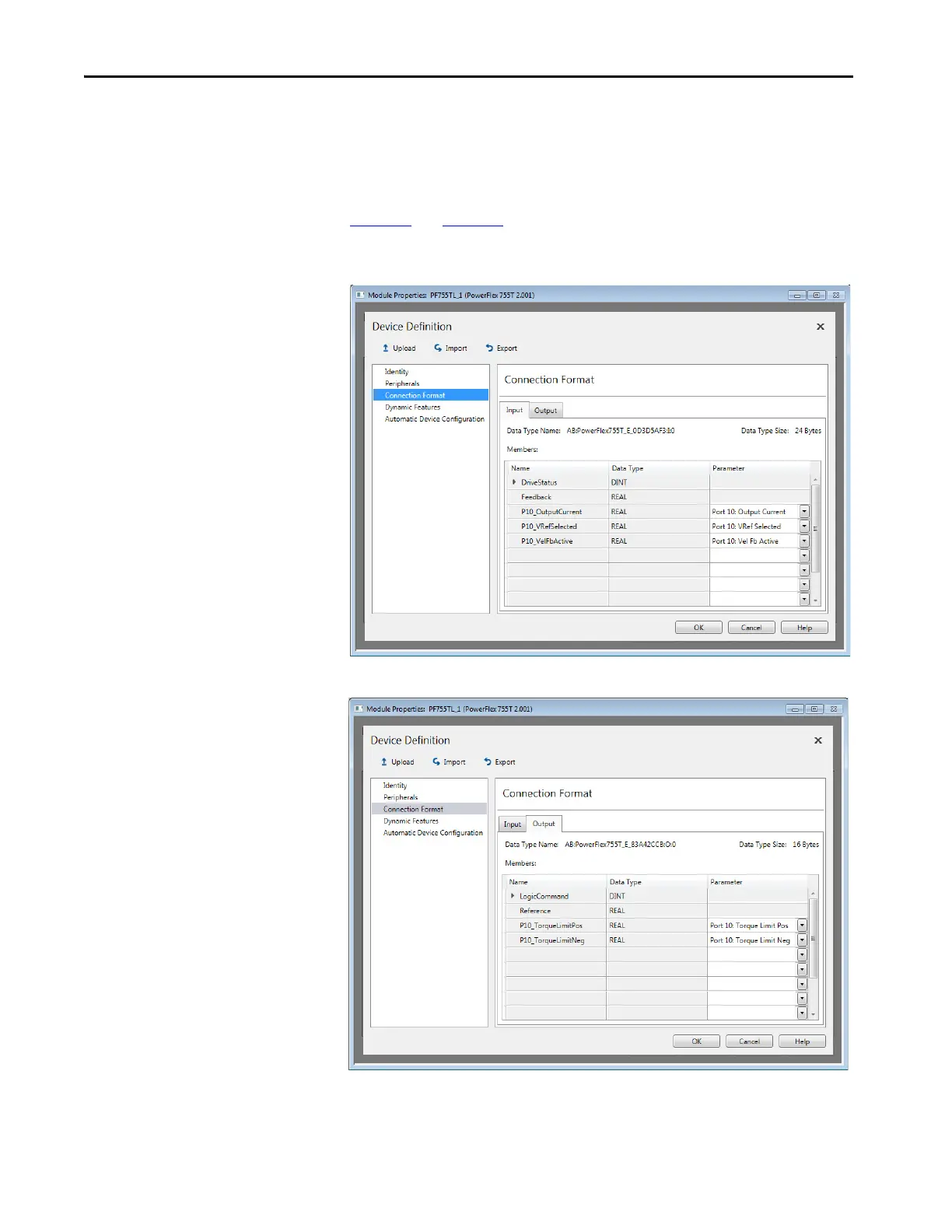

Figure 30 - Connection Formats - Inputs
Figure 31 - Connection Formats - Outputs
