Appendix A Enclosure Information

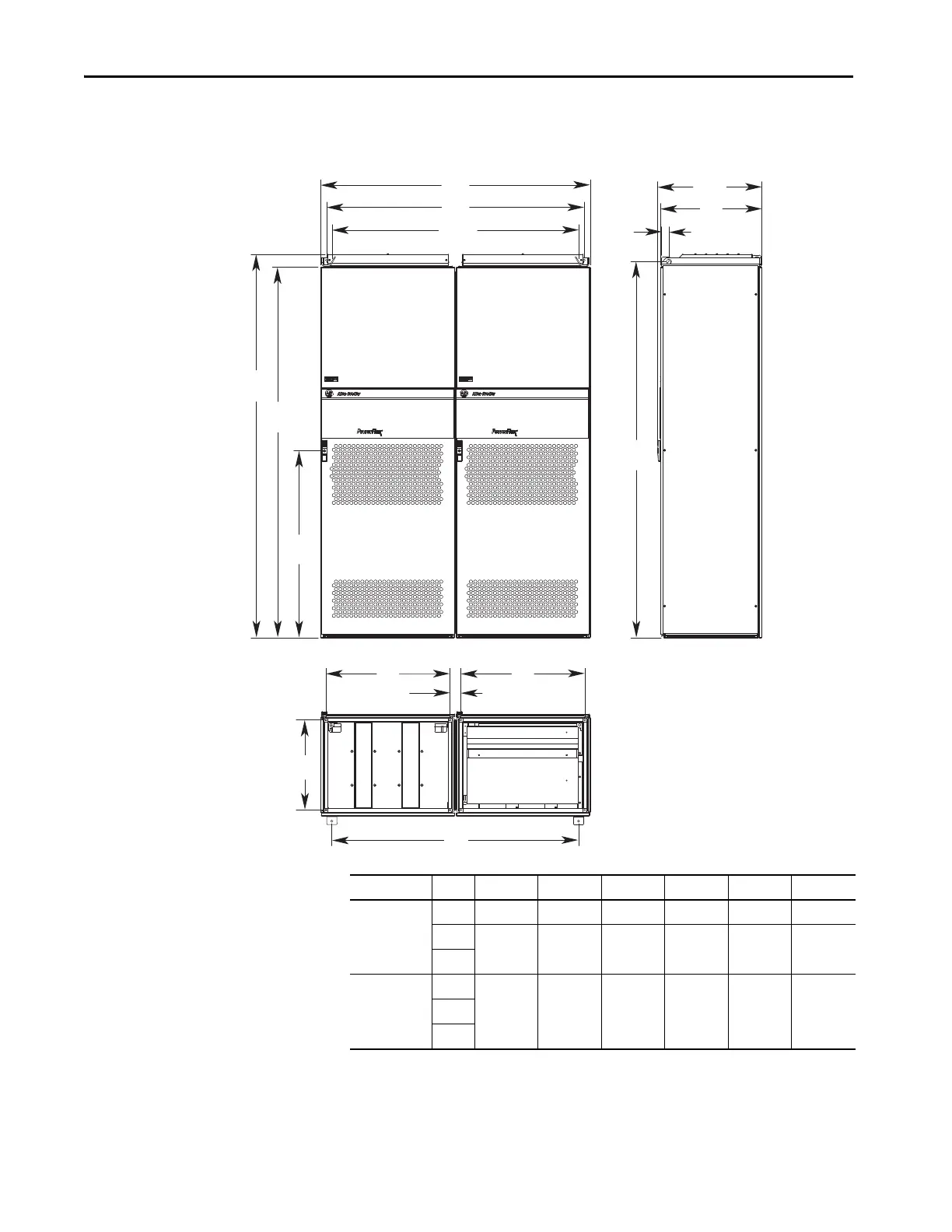

Figure 36 - AC and DC Input Frame 13 PowerFlex 700S, IP21 Rittal
Dimensions are in millimeters and (inches).
2197
2275
1108.25
65
535
2231
603
619.2
44
(89.6)
(86.5)
(43.6)
(87.8)
(1.73)
(23.7)
(24.4)
(2.6)
(21.1)
A
B
C
DE
F
Voltage Class Amps A B C D E F
400/480V AC
(540/650V DC)
1150 1412 (56) 1329 (52) 1264 (50) 535 (21) 735 (29) 1264 (58)
1300 1600 (63) 1529 (60) 1464 (58) 735 (29) 735 (29) 1464 (58)
1450
600/690V AC
(810/932V DC)
920 1412 (56) 1329 (52) 1264 (50) 535 (21) 735 (29) 1264 (50)
1030
1180
