144 Rockwell Automation Publication 750-RM004A-EN-P - April 2018
Appendix A Enclosure Information
PowerFlex 755T products can be mounted on a service pad or platform. The
platform height and enclosure setback measurements that are indicated in
Figure 53
are the maximum that is allowed for by the PowerFlex 750-Series
service cart (20-750-MCART1). The platform height measurement is also an
installation limit per NEC requirements for the disconnect switch.

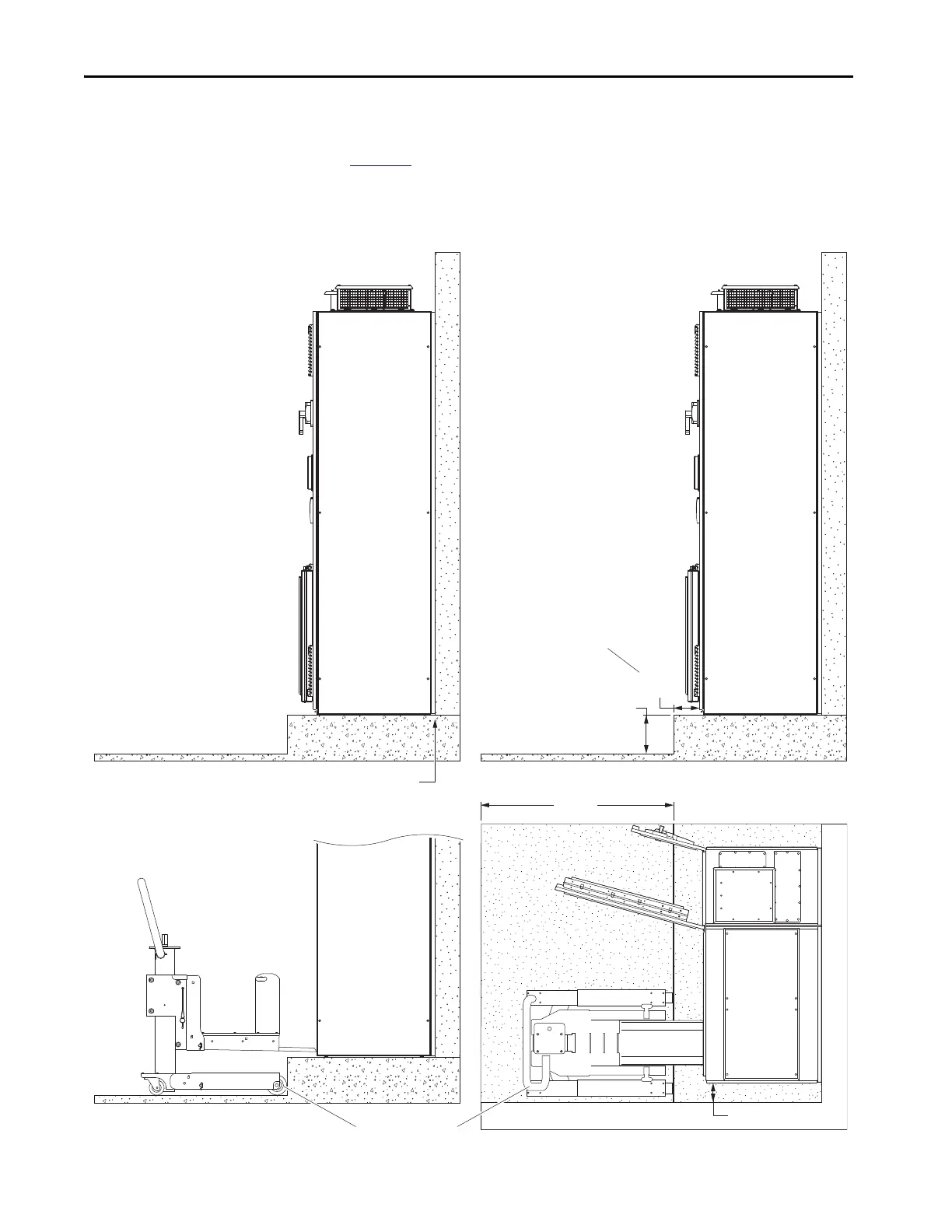

Figure 53 - Mounting Clearances for IGBT Access and Disconnect Switch Height
254 mm
(10 in.)
914 mm
(36 in.)
203 mm
(8 in.)
152 mm
(6 in.)
Side View
20-750-MCART1
Top View
Maximum Enclosure Setback
Maximum Platform or
Plinth System Height
Minimum Aisle WidthNo clearance is required between the back of the enclosure and a wall.
Side View
Side View
