Rockwell Automation Publication 750-RM004A-EN-P - April 2018 85
Selection Considerations Chapter 1

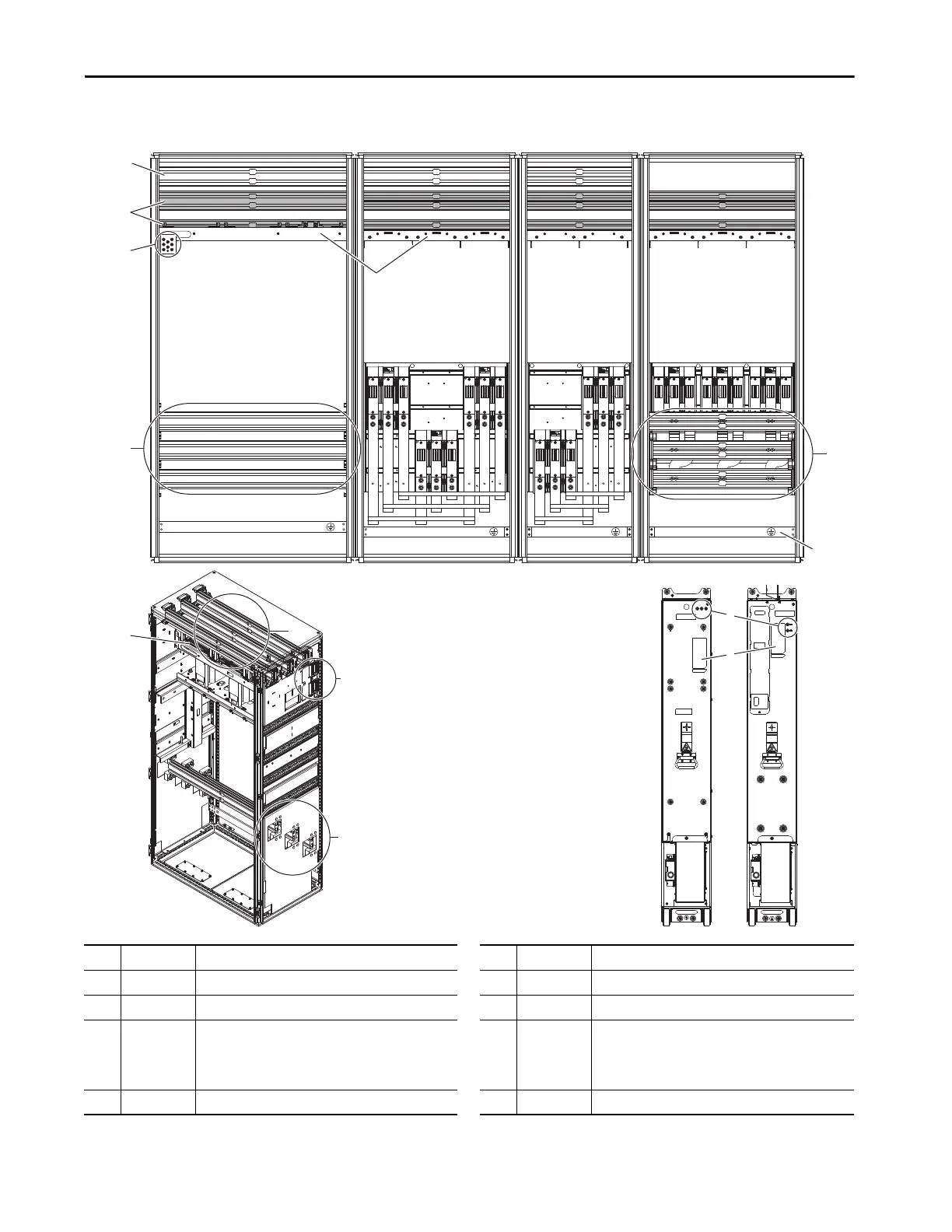

Figure 23 - PowerFlex 755TL/TR Frame 10, PowerFlex 755TR Frame 11…12 Drive Power
Terminal Locations
PE
7
1
2
3
4
5
PEPE
PE
3
8
4
2
1
5
6
Frame 10 drive shown. Layout is typical for Frames 10 through 12.
Item Name Description Item Name Description
1 AC Bus AC power supply 5 Control Bus 120/240V and 24V AC control power supply connections
2 DC Bus DC+, DC- 6 Power Bus U/T1, V/T2, W/T3 motor connections
3 Testpoints DC+, DC- and R/L1, S/L2, T/L3 voltage testpoint sockets 7 PE Grounding
Bar
Terminating point to chassis ground for incoming AC line
and motor shield.
PE ground bar clamps, kit number SK-RM-GRNDCLMP-nn,
are available.
4 Power Bus R/L1, S/L2, T/L3 AC line input power connections 8 Nameplate Power module and LCL filter module nameplate locations
