PowerFlex 700S Control Wiring 3-11
Input/Output Connection Examples — 3-Wire Control Required Parameter Changes
High Speed Inputs
12 or 24V dc
Sourcing High Speed Inputs, Used for 3 Wire Control - using
the internal power supply
Example: Three Wire Control
• Set the value of Parameter 839 [DigIn 2 Sel] to
a value of 1 - Normal Stop
• Set the value of Parameter 840 [DigIn 3 Sel] to
a value of 2 - Start
• Set Parameter 153 [Control Options] / bit 8
“3WireControl”
Note: +12V and +24V are also available from
TB1 Top 10 & 11.

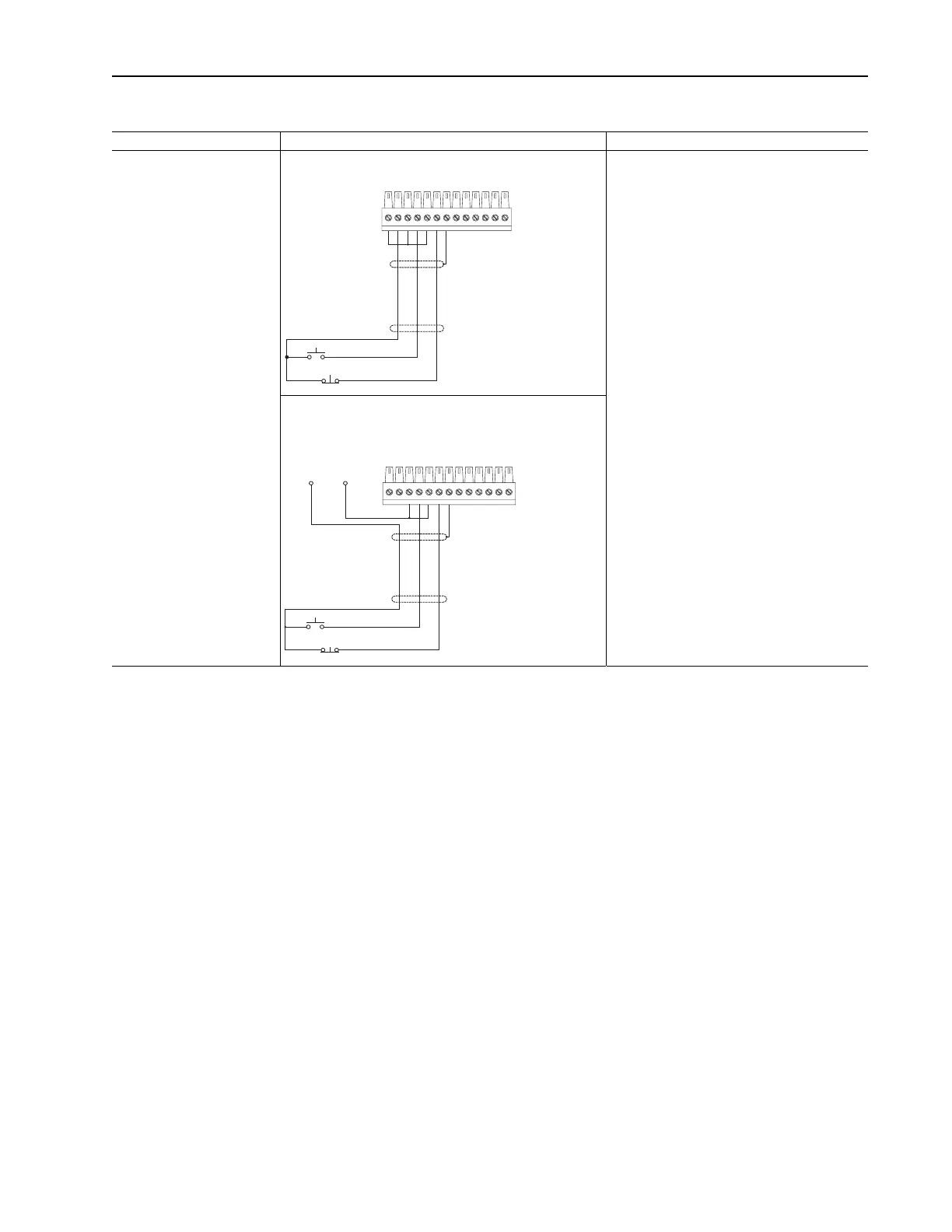

Sourcing High Speed Inputs, Used for 3 Wire Control - using an
external power supply
Figure 3.3 TB2 - Row T (Top) Wiring Examples
345621
Start
Stop
7
Power
Common
(Return)
External
12 or 24V dc
Power Supply
3456
Start
Stop
7
