Rockwell Automation Kinetix 300

41 of 51

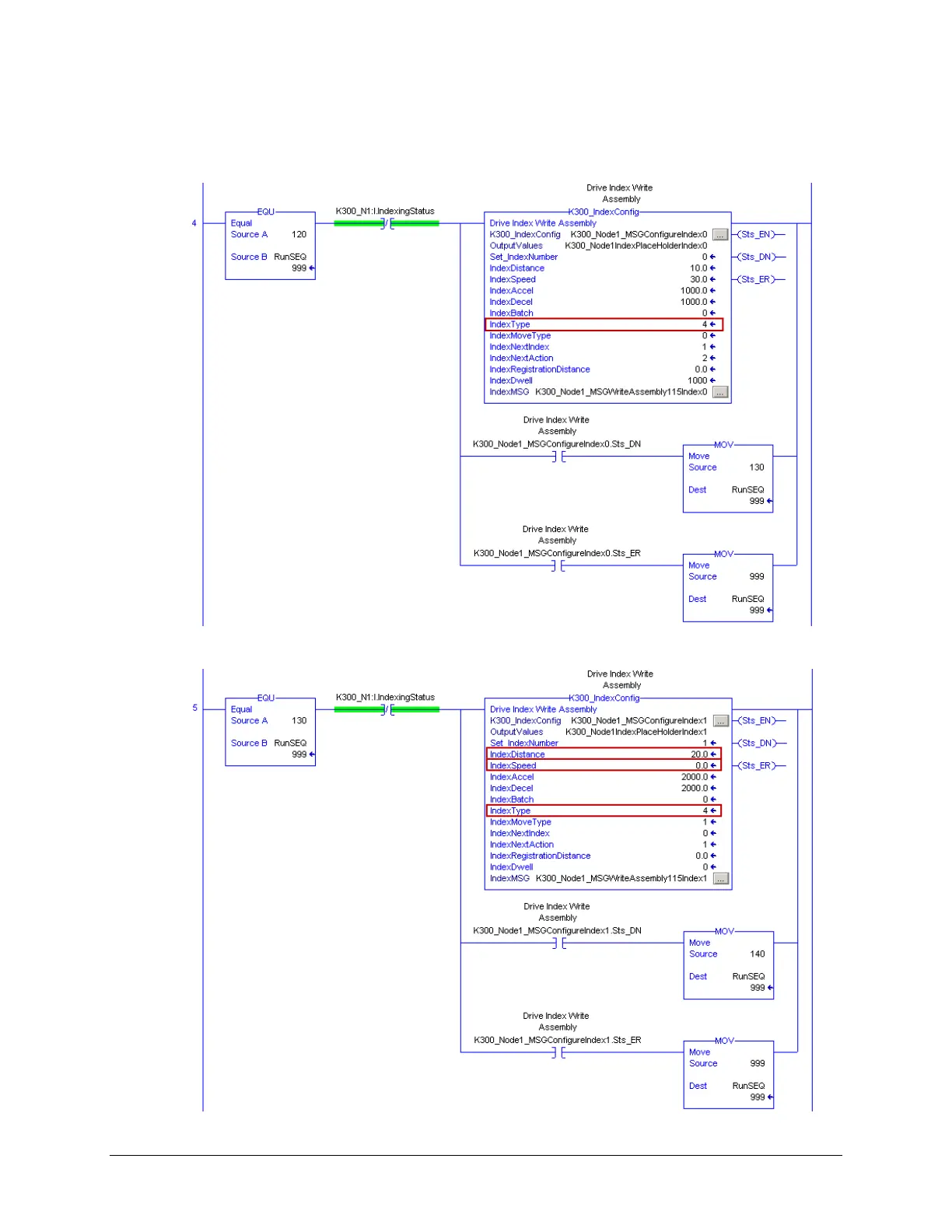

2. Make the following changes to the Indexing AOI’s in the R6_Index_Mode subroutine.
Rung 4: Change IndexType to a value of 4 (Blended Index).
Rung 5: Change the following; IndexSpeed = 0, IndexDistance = 20, and IndexType = 4.
