Rockwell Automation Publication 6200-UM001C-EN-P - July 2018 25
Install the Thin Client or Computer Chapter 3
7. Slide the mounting clips into the holes on the top, bottom, and sides of
the integrated display model.
8. Hand-tighten the mounting clips around the bezel by following the
tighten sequence in Figure 10
.
9. Repeat this process at least three times until the clips are hand-tight and
the gasket is compressed uniformly against the panel.
10. With a 2 mm Allen wrench, tighten the mounting clips to a torque of
0.4 N•m (3.5 lb•in) by following the torque sequence in Figure 10
. Do
not overtighten.
11. Repeat this process at least three times until the clips are properly torqued
to
0.7 N•m (6.2 lb•in)
. Verify that the gasket is compressed uniformly
against the panel.

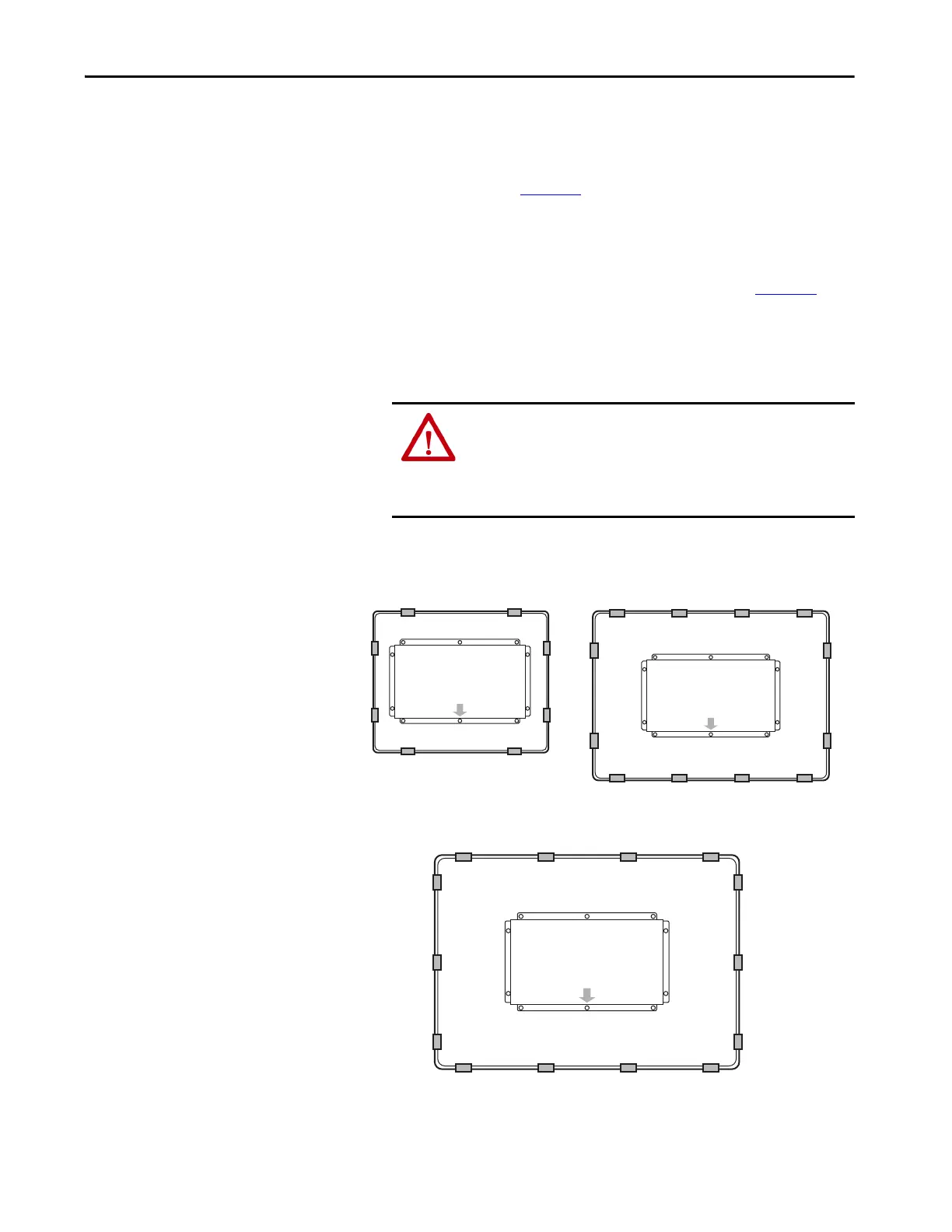

Figure 10 - Tightening and Torquing Sequence for Mounting Clips
ATTENTION: Tighten the mounting clips to the specified torque to
provide a proper seal and to help prevent product damage. Rockwell
Automation assumes no responsibility for water or chemical damage
to the integrated display model or other equipment within the
enclosure because of improper installation.
4
3
6
18
27
12.1 in. Integrated Display Models
18.5 in. and 21.5 in. Integrated Display Models
8
3
4
7
10 1 5
11 6 2
13
8
7
14
3
4
10 1 5
11 6 2 9
12
12
9
15.6 in. Integrated Display Models
5
I/O Ports
I/O Ports
I/O Ports
To Next Page
