Install Accessories Appendix A
7. Mount the machine mounting bracket with the appropriate tools and
mo
unting hardware for the surface material.
8. Follow the steps for Post-configuration
on page 53.
IMPORTANT For acceptable machine mounting positions, see Figure 11 on
page 27.

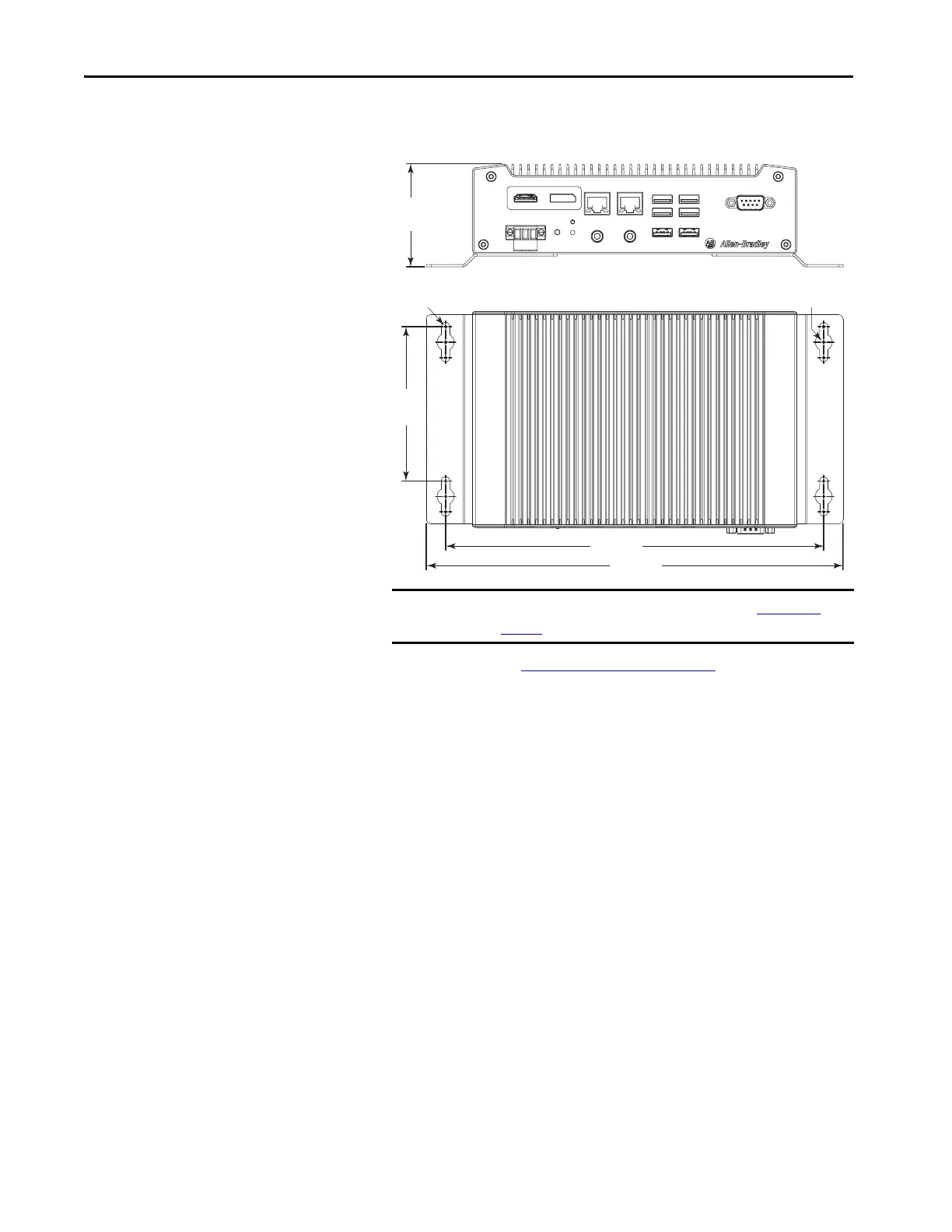

8 x Ø5.5
(0.22)
245 (9.65)
270 (10.63)
100
(3.94)
66.5
(2.62)
4 x Ø11
(0.43)
