Panel Descriptions

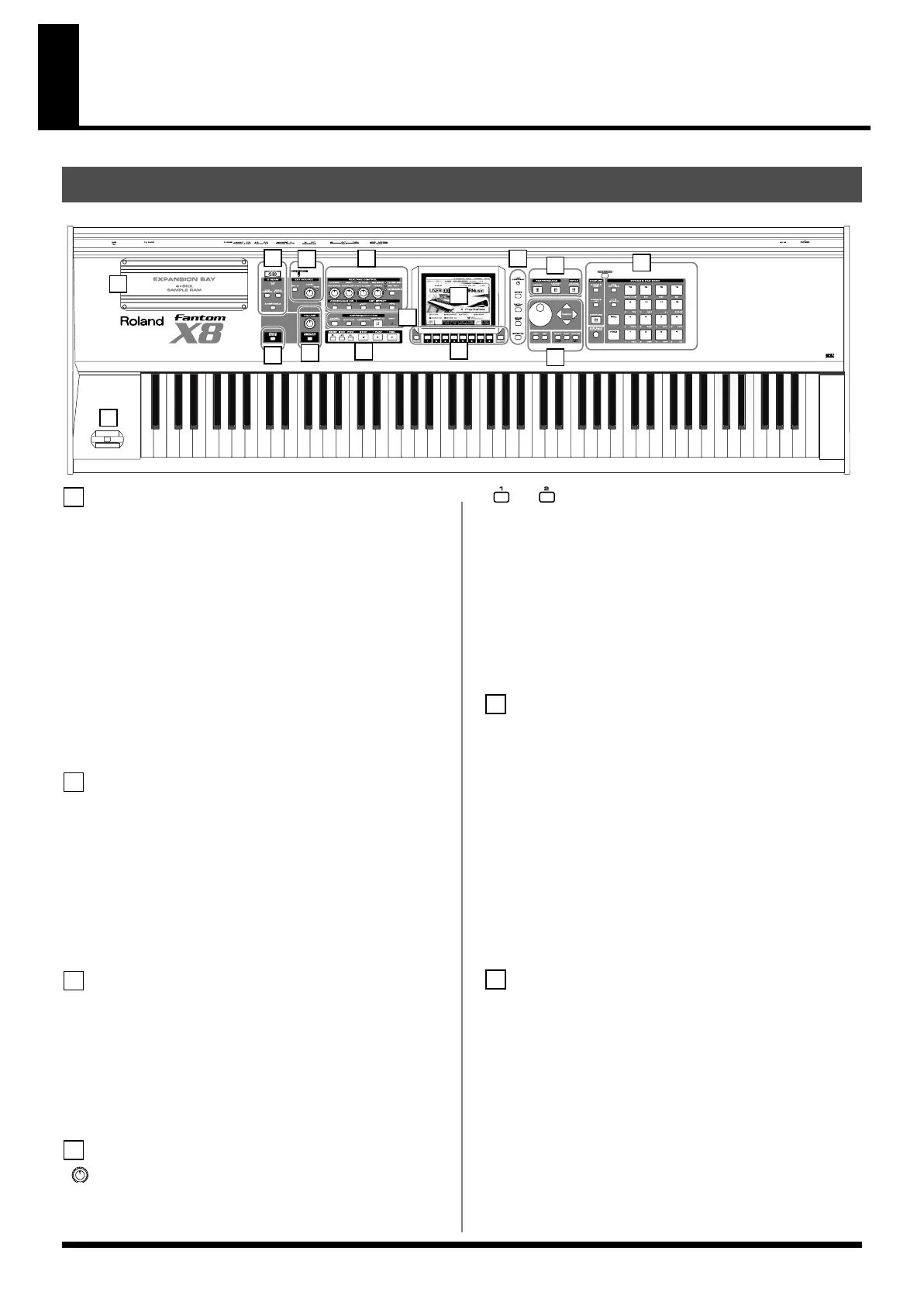

fig.01-001
D BEAM
D BEAM
Switches D Beam function on/off. You can apply a variety of effects
to sounds simply by moving your hand. -> (p. 121)
[ASSIGNABLE]
You can assign a variety of parameters and functions to D Beam to
modify the sound in realtime. -> (p. 122)
[PAD TRIGGER]
Instead of striking the pads themselves, you can also use the D Beam
controller to control the sounding of the pads. -> (p. 122)
[SOLO SYNTH]
Play the Fantom-X as a monophonic synthesizer. -> (p. 123)
* Hold down [SHIFT] and press one of the corresponding buttons to
access the D BEAM setting screen.
EXT SOURCE
[MIX IN]
Switches the external input on/off. -> (p. 141)
* Hold down [SHIFT] and press this button to access the external
source setting screen.
LEVEL knob
Controls the volume of the external input.
PEAK indicator
This will light when the volume of the external input is too high.
VOLUME / V-LINK
VOLUME
Adjusts the overall volume that is output from the rear panel
OUTPUT A (MIX) jacks and PHONES jack. -> (p. 21)
[V-LINK]
Switches the
V-LINK function
on/off.
-> (p. 238)
* Hold down [SHIFT] and press [V-LINK] to access the V-LINK setting
screen.
REALTIME CONTROL
[ ]REALTIME CONTROL knob
Depending on the parameter or function that is assigned,
you can use
the knobs to modify the sound in realtime. -> (p. 47)
[ ], [ ]ASSIGNABLE switch
You can assign a variety of parameters and functions to these two
buttons. Use them to switch the parameters and functions to modify
the sound in realtime. -> (p. 122)
[RPS]
Switches RPS on/off.
-> (
p. 203
)
* Hold down [SHIFT] and press (or rotate) one of the above switches (or
knob) to access the corresponding setting screen.
[-OCT], [+OCT]
Transposes the pitch of the keyboard in 1 octave units (-3- +3 octaves).
ARPEGGIO / RHYTHM
[CHORD MEMORY]
Switches the CHORD MEMORY on/off.
-> (
p. 133
)
[RHYTHM]
Switches the RHYTHM on/off.
-> (
p. 135
)
[ARPEGGIO]
Switches the ARPEGGIO on/off.
-> (
p. 128
)
* Hold down [SHIFT] and press one of the corresponding buttons to access
CHORD MEMORY, RHYTHM or ARPEGGIO settings screen.
[ARP HOLD]
Switches the Arpeggio Hold function on/off.
BEAT (Beat Indicator)
This blinks in sync with the tempo and beat.
SEQUENCER
Perform sequencer operations such as playback and record.
[RESET]
Moves the song position to the top. If you press this during playback,
you will return to the beginning of the song and stop. -> (p. 165)
[BWD]
Moves the song position to the first beat of the previous measure. ->
(p. 165)
[FWD]
Moves the song position to the first beat of the next measure. -> (p.
165)
[Play]
Controls sequencer play.
Front Panel
1
12
2
4
3
5
6
7
8
9
10
11
13
14
15
1
2
3
4
5
6
