238

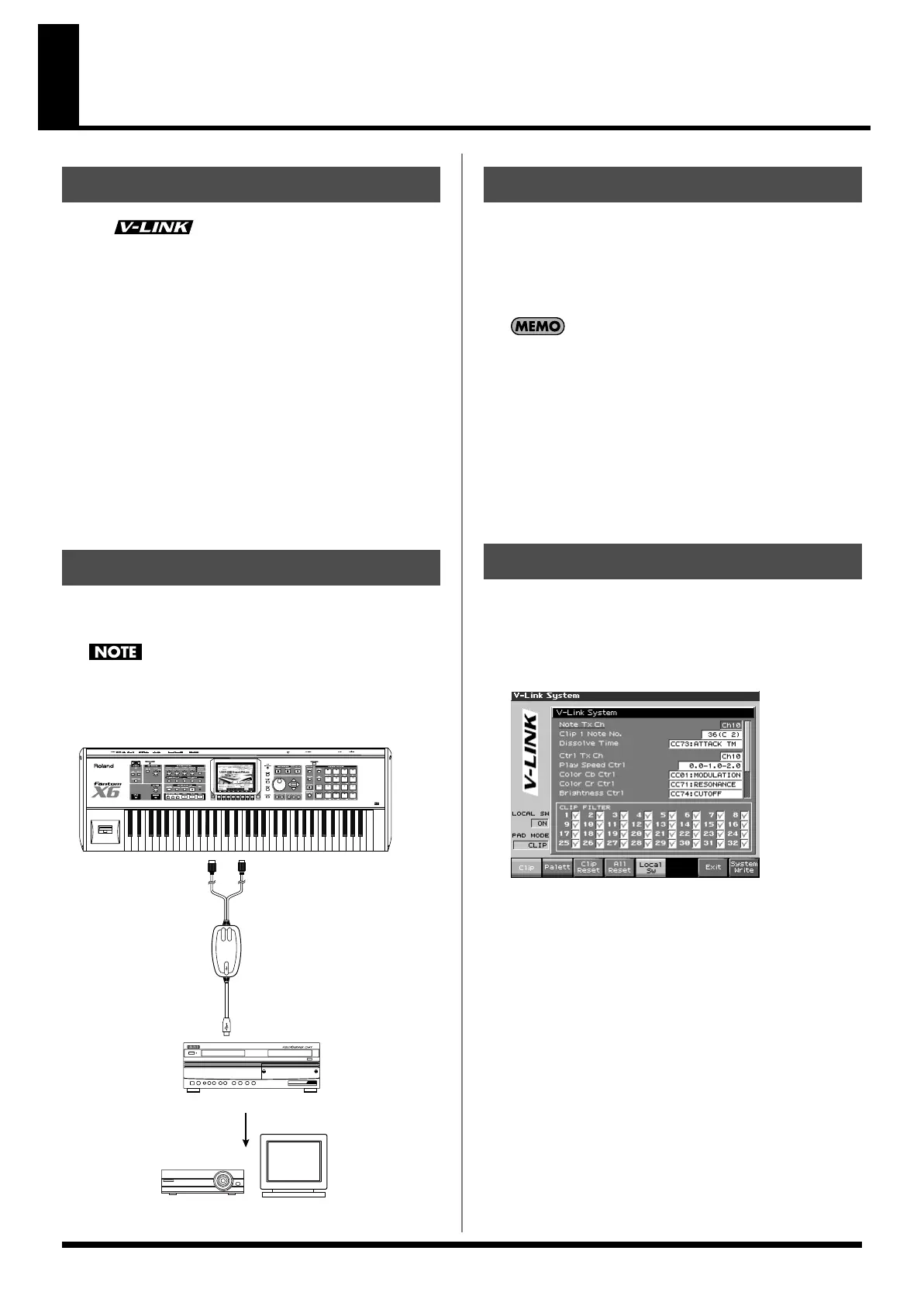

About V-LINK
V-LINK ( ) is a function that allows music and images to
be performed together. By using MIDI to connect two or more V-LINK
compatible devices, you can easily enjoy performing a wide range of visual
effects that are linked to the expressive elements of a music performance.
(Examples)
By using the Fantom-X and Edirol DV-7PR together, you can:
• Make Edirol DV-7PR playback settings remotely from the
Fantom-X.
• Use the Fantom-X’s sequencer to enjoy synchronized music and
video.
• Use the Fantom-X to switch the Edirol DV-7PR’s images (clips/
palettes).
• Use the Fantom-X’s knobs to adjust the brightness or color of
the image.
* In order to use V-LINK with the Fantom-X and Edirol DV-7PR, you will
need to make connections using an Edirol UM1/UM-1S (sold separately).
Use a UM-1 to connect the Fantom-X’s MIDI OUT connector to the
DV-7PR’s remote jack.
Before connecting this unit to other devices, turn off the power
to all units. This will help prevent malfunctions and/or damage
to speakers or other devices.
fig.29-001.e
1.
In the left of the panel, press [V-LINK] so the indicator is
lighted.
The V-LINK setting will be on.
In this state, you can operate the Fantom-X to manipulate
images in sync with your performance.
Each mode will function as usual even if V-LINK is on.
2.
Press [V-LINK] again.
The V-LINK button will go out, and the V-LINK setting will be
off.
1.
Holding down [SHIFT] and pressing [V-LINK] to access the
V-LINK SETUP screen.
2.
Press [CURSOR] to move the cursor to a parameter, and
turn the VALUE dial or use [INC][DEC] to set the value.
fig.29-002_50
* Specify the Pad Mode by pressing [F1 (Clip)] or [F2 (Palett)].
3.
If you want to keep your settings, press [F8 (System Write)].
4.
Press [F7 (Exit)] or [EXIT].
You’re returned to the previous screen.
What is V-LINK?
Connection Examples
Edirol DV-7PR
Display
Projector
Fantom-X
REMOTE
MIDI OUT
Edirol UM-1
Turning the V-LINK ON/OFF
V-LINK Settings
Fantom-X678_r_e.book 238 ページ ２００５年５月１２日 木曜日 午後４時４０分
