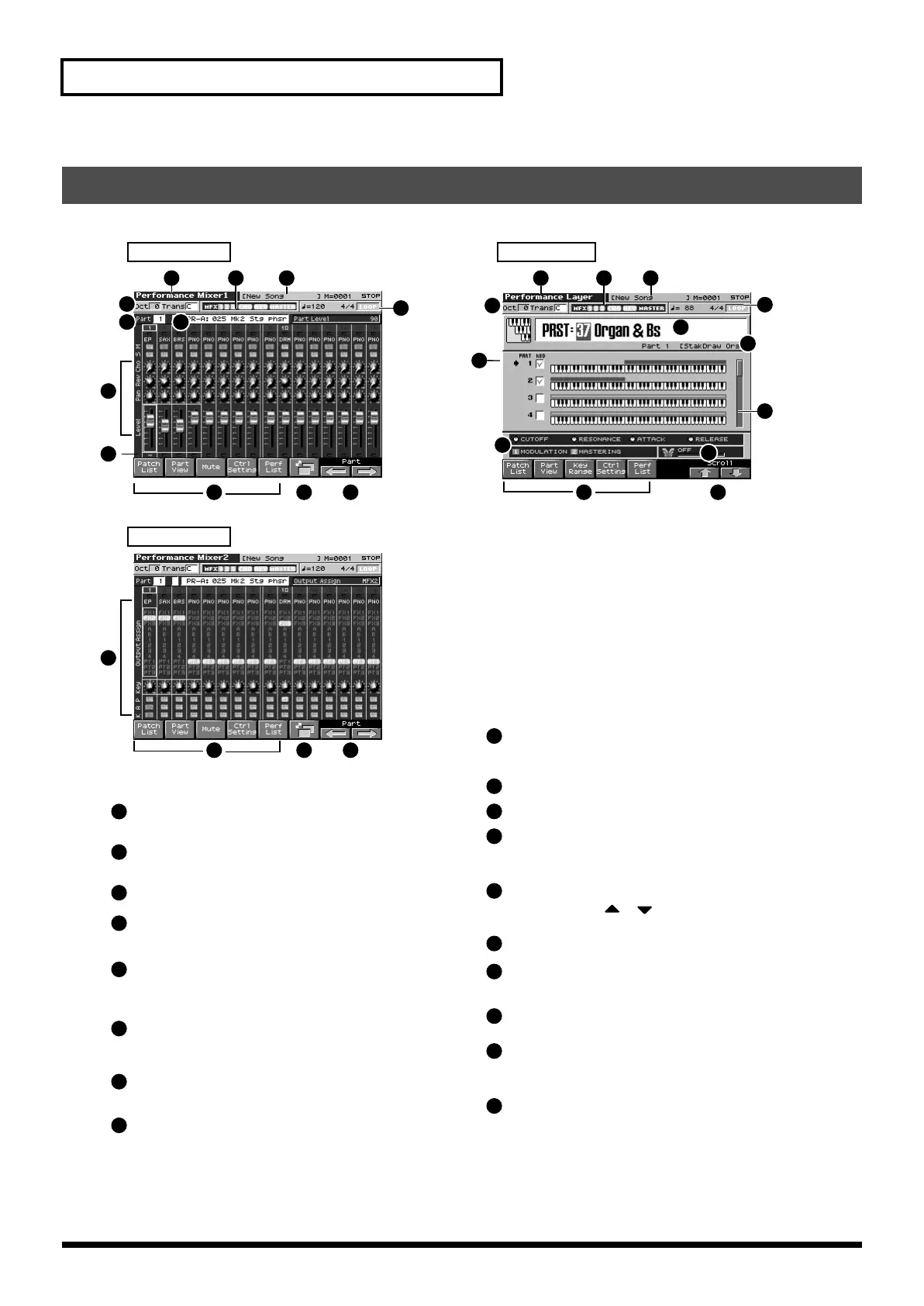

MIXER1 screen
MIXER2 screen
LAYER screen
1
Indicates the current sound generating mode.
2
Indicates the name of the currently selected song,
the measure location, the time signature, and
the sequencer status.
4
Indicates multi-effects (MFX), chorus (CHO),
reverb (REV) and mastering (MASTER) on and off.
3
Indicates the Octave Shift (Oct) and the Transpose (Trans).
5
Indicates the tempo at which the song,
Arpeggio or rhythm pattern is played.
Indicates the Loop Play on/off (LOOP).
6
MIXER screen: Indicates the group, number, and name
of the selected performance.
LAYER screen: Selects the group, number of
the selected performance.
7
LAYER screen: Displays the patches assigned to the parts.
When you switch the current part, the part number will
also change.
8
Current Indicates the part.
1
17
14131211
131211
10
9
18
6
5
4 2
11
1
7
2
3
4
5
15
1
16
3
8
7
11
9
Set the volume (LEVEL), pan (PAN), reverb (REV),
chorus (CHO), Mute Sw (M), Solo Sw (S) of the part.
The setting screen is divided into two screens, and
you can press function button [F6] to switch between them.
Set the Part Course Tune (Key), Output Assign, Keyboard Sw (K)
reverb (REV), Arpeggio Part (A), Pad Part (P) of the part.
The setting screen is divided into two screens, and
you can press function button [F6] to switch between them.
18
10
Indicates the keyboard switch on/off.
11
Jumps to the setting screen of the displayed parameter.
12
Switches the MIXER screen 1 and 2.
14
Scrolls the settings through parts 1-16.
15
Indicates the functions that are assigned to each
realtime controller knob (●) and assignable switch (■).
16
This indicates the function that is assigned to the D Beam
controller, and the response status of the D Beam controller.
17
Indicates the key range in which you can play the keyboard
or play rhythm sets.
13
These select the four parts that are controlled by the knobs.
The currently selected parts are enclosed by a light green border.
Use [CURSOR] ( or ) to select what is to be controlled.
