Roland Octa-Capture User Manual

64
3. In the Utility section, turn VS-EXPAND on (p. 60).
4. Switch on the power to the rst OCTA-CAPTURE unit.
5. Specify the same sampling frequency as that of the second unit (p. 67).
6. In order to digitally synchronize the two units, use a coaxial cable to connect the
second unit’s COAXIAL OUT (9/10) to the rst unit’s COAXIAL IN (9/10).
* If the Utility section’s DIGITAL setting is turned o, the sampling frequency will not switch.
Change the rst unit’s DIGITAL setting to “AUTO” (p. 60).
* Make sure that the Utility section’s VS-EXPAND setting is “OFF.”
7. Connect the second OCTA-CAPTURE unit to the computer.
Connect the two USB cables to USB ports that are near each other.
Windows 7/Windows Vista users
The driver will be installed automatically when you connect the OCTA-CAPTURE. Please wait.
Windows XP users
After you’ve made the connection, follow steps 10 through 13 on p. 20 to install the driver.
8. The procedure will dier depending on your system. Proceed as follows.
Windows users

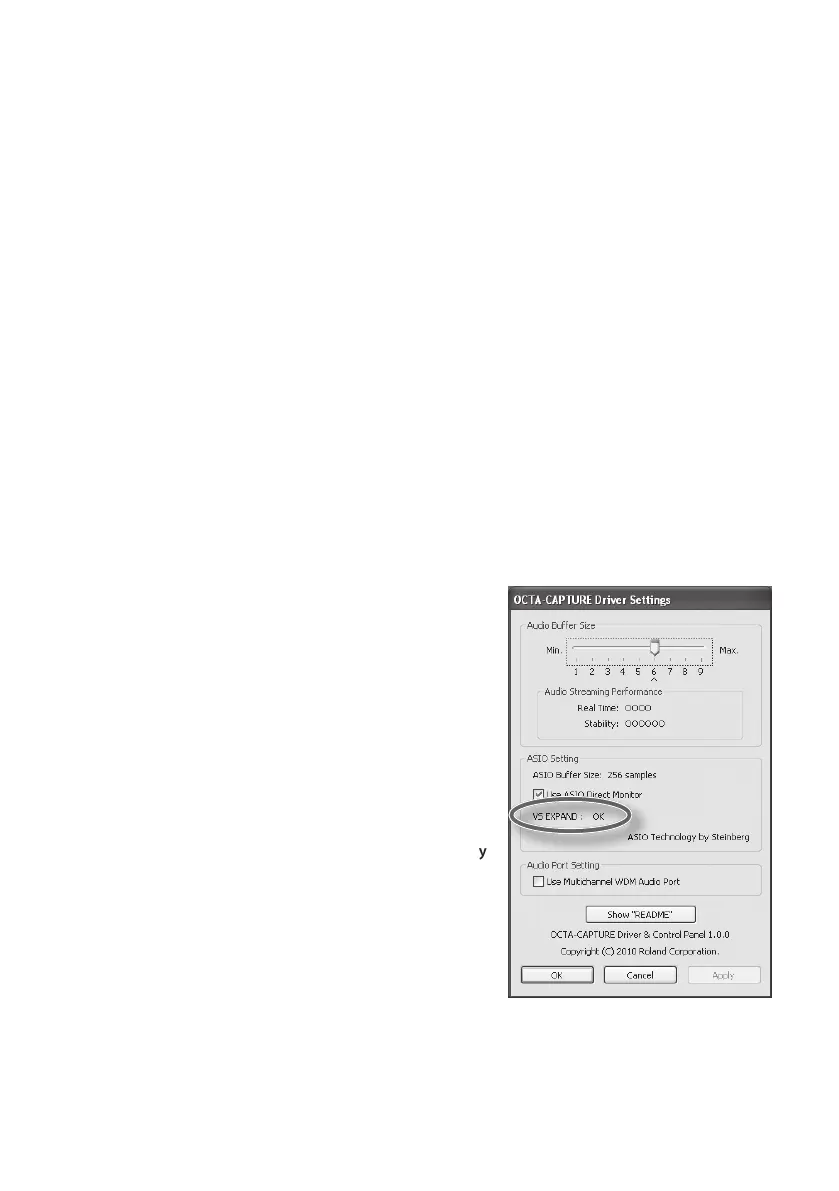

If you’re using Windows, the two OCTA-CAPTURE units
must be connected to the same USB controller. Make sure
that “OK” is shown for the item VS EXPAND in the driver
settings (p. 69) of the OCTA-CAPTURE control panel.
If this does not indicate “OK,” proceed as directed below.
If “USB controller does not match” is shown:
Connect the second OCTA-CAPTURE unit to a dierent
USB port, and keep trying other USB ports until the
indication is “OK” or “Sampling frequency does not
match.”
* Alternatively, you can ensure that the two OCTA-CAP-
TURE units are connected to the same USB controller by
connecting them both to a USB 2.0 compliant hub.
If “Sampling frequency does not match” is shown:
Disconnect both USB cables from the computer, turn o
the power of the rst unit, and start again from step 4.
Connect each OCTA-CAPTURE unit to the same USB port.
If VS EXPAND is grayed out:
Disconnect both USB cables from the computer, turn o the power of both OCTA-CAPTURE units,
and start again from step 1.

Roland Octa-Capture Specifications

Audio Channels

number of audio record channels (44.1/48/96 kHz)	12 channels
number of audio playback channels (44.1/48/96 kHz)	10 channels
number of audio record channels (192 kHz)	4 channels
number of audio playback channels (192 kHz)	4 channels

Signal Processing

pc interface bit depth	24-bit
ad/da conversion bit depth	24-bit
internal processing bit depth	40-bit

Sampling Frequency

ad/da conversion sampling frequency	44.1/48/96/192 kHz
digital (in/out) sampling frequency	44.1/48/96 kHz

Input and Output Levels

nominal input level (input jack 1-6, xlr type)	-56 to -6 dBu
nominal input level (input jack 7-8, xlr type)	-50 to +0 dBu
nominal input level (input jack 1-8, 1/4-inch trs phone type)	-46 to +4 dBu
nominal output level (output 1-8)	+0 dBu (balanced)
headroom	16 dB

Impedance

input impedance (input jack 1-6, xlr type)	5 k ohms (balanced)
input impedance (input jack 7-8, xlr type)	10 k ohms (balanced)
input impedance (input jack 1-8, 1/4-inch trs phone type)	17 k ohms (balanced)
output impedance (output 1-8)	1.8 k ohms (balanced)
output impedance (phones)	47 ohms

Frequency and Noise

frequency response (192 kHz)	20 Hz to 90 kHz (+0/-8 dB)
frequency response (96 kHz)	20 Hz to 40 kHz (+0/-2 dB)
frequency response (48 kHz)	20 Hz to 22 kHz (+0/-2 dB)
frequency response (44.1 kHz)	20 Hz to 20 kHz (+0/-2 dB)
residual noise level	-87 dBu typ. (GAIN: min., 600 ohms terminated, IHF-A)

Dynamic Range and Display

dynamic range (ad block input 1-8)	104 dB typ. (GAIN: min.)
dynamic range (da block output 1-8)	113 dB typ.
display	128 x 64 dots Graphic LCD (backlit LCD)

Connectors

input jacks (xlr type / 1/4-inch trs phone type)	XLR type (balanced/phantom power +48 V), 1/4-inch TRS phone type (balanced)
coaxial input connector	present
coaxial output connector	present
headphone jack	Stereo 1/4-inch phone type
output jack (1/4-inch trs phone type)	balanced
midi connectors	In, Out
usb connector	present

Power and Dimensions

power supply	DC 9 V (AC adaptor)
current draw	1.45 A
dimensions	283.8 (W) x 157.9 (D) x 50.4 (H) mm / 11-3/16 (W) x 6-1/4 (D) x 2 (H) inches
weight	1.32 kg / 2 lbs 15 oz
